Installing the drive 53
ACH550-01 User's Manual

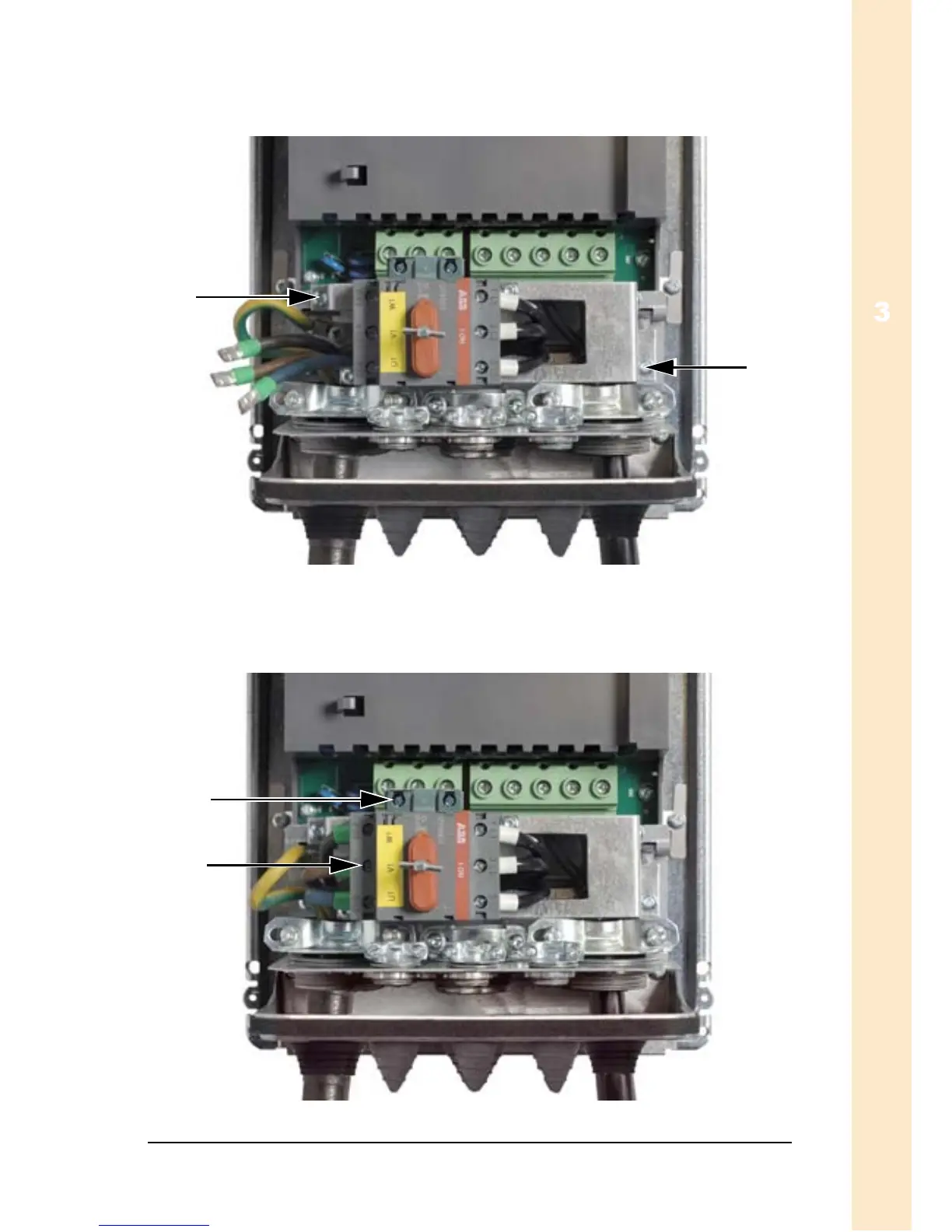

8. Turn the switch assembly plate back to its original position
and fasten the two fastening screws.
9. Connect the input cable conductors to the main switch
terminals U1, V1 and W1.
10. Connect wires to the auxiliary contact (if used).
