ABB ACH550-01 - Page 90

Start-up and control panel 85
ACH550-01 User's Manual

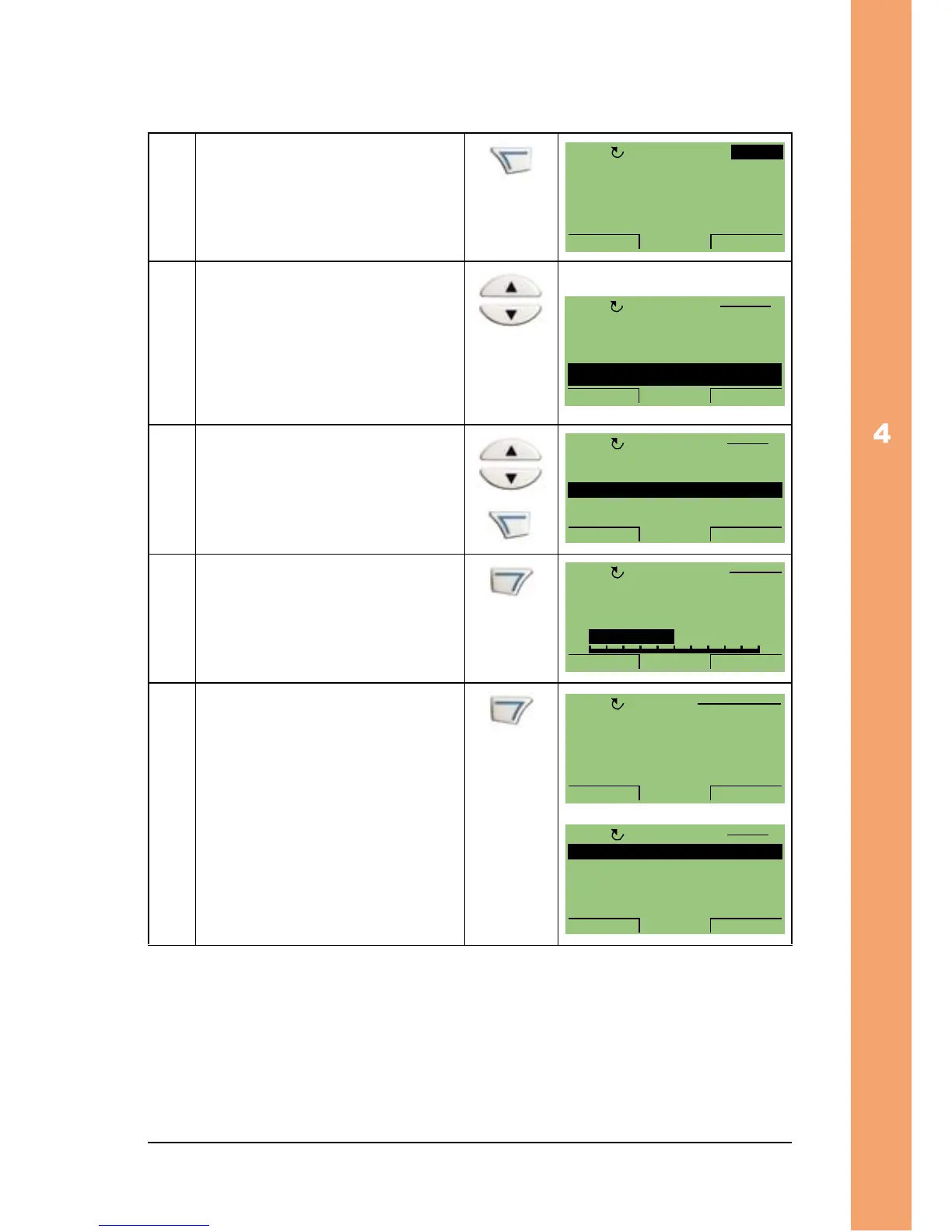

To download the full set of parameters to a drive, follow these
steps:
1 Press MENU to go to the
main menu.
2 Select PAR BACKUP with
the UP/DOWN keys.
3 Scroll to DOWNLOAD
FULL SET and press SEL.
Note that the drive has to
be in the OFF mode for
downloading parameters.
4 Text “Downloading
parameters (full set)” is
displayed. Press ABORT if
you want to stop the
process.
5 After the download stops,
the message “Parameter
download successfully
completed.” is displayed.
Press OK to return to the
PAR BACKUP menu.
Press EXIT twice to go to
the main menu.
0 A
0 Hz
0 %0.
0.
0.
0.0Hz
OFF
MENU00:00
FAULT LOGGER
TIME & DATE
PAR BACKUP
EXIT ENTER00:00
OFF
MAIN MENU 6
UPLOAD TO PANEL
BACKUP INFO
DOWNLOAD FULL SET
DOWNLOAD APPLICATION
DOWNLOAD USER SET1
PAR BACKUP 3
EXIT
SEL00:00
OFF
ABORT 00:00
51%
PAR BACKUPOFF
Downloading
parameters (full
set)
Parameter download
successfully
completed
MESSAGE
OK
00:00
OFF
UPLOAD TO PANEL
BACKUP INFO
DOWNLOAD FULL SET
DOWNLOAD APPLICATION
DOWNLOAD USER SET1
PAR BACKUP 1
EXIT
SEL00:00
OFF
