Chapter 1 – Introduction
1-2 ACx=ACS/ACC/ACP ACS/ACC/ACP 601 Drives

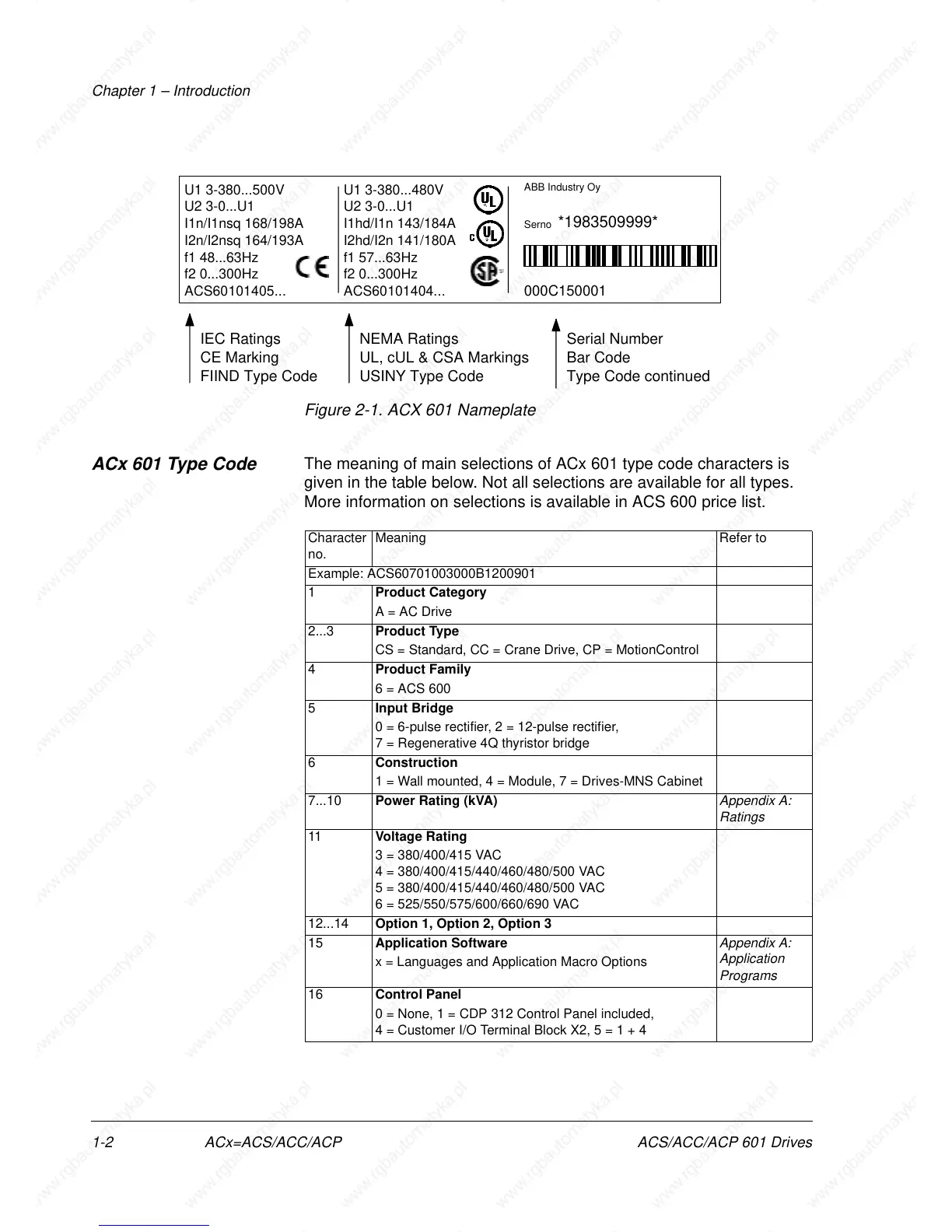

Figure 2-1. ACX 601 Nameplate
ACx 601 Type Code
The meaning of main selections of ACx 601 type code characters is
given in the table below. Not all selections are available for all types.
More information on selections is available in ACS 600 price list.
Character
no.
Meaning Refer to
Example: ACS60701003000B1200901
1 Product Category
A = AC Drive
2...3 Product Type
CS = Standard, CC = Crane Drive, CP = MotionControl
4 Product Family
6 = ACS 600
5 Input Bridge
0 = 6-pulse rectifier, 2 = 12-pulse rectifier,
7 = Regenerative 4Q thyristor bridge
6 Construction
1 = Wall mounted, 4 = Module, 7 = Drives-MNS Cabinet
7...10 Power Rating (kVA)
Appendix A:
Ratings
11 Voltage Rating
3 = 380/400/415 VAC
4 = 380/400/415/440/460/480/500 VAC
5 = 380/400/415/440/460/480/500 VAC
6 = 525/550/575/600/660/690 VAC
12...14 Option 1, Option 2, Option 3
15 Application Software
Appendix A:
Application
Programs
x = Languages and Application Macro Options
16 Control Panel
0 = None, 1 = CDP 312 Control Panel included,
4 = Customer I/O Terminal Block X2, 5 = 1 + 4
U1 3-380...500V
U2 3-0...U1
I1n/I1nsq 168/198A
I2n/I2nsq 164/193A
f1 48...63Hz
f2 0...300Hz
ACS60101405...
U1 3-380...480V
U2 3-0...U1
I1hd/I1n 143/184A
I2hd/I2n 141/180A
f1 57...63Hz
f2 0...300Hz
ACS60101404...
ABB Industry Oy
Serno
*1983509999*
000C150001
IEC Ratings
CE Marking
FIIND Type Code
NEMA Ratings
UL, cUL & CSA Markings
USINY Type Code
Serial Number
Bar Code
Type Code continued
