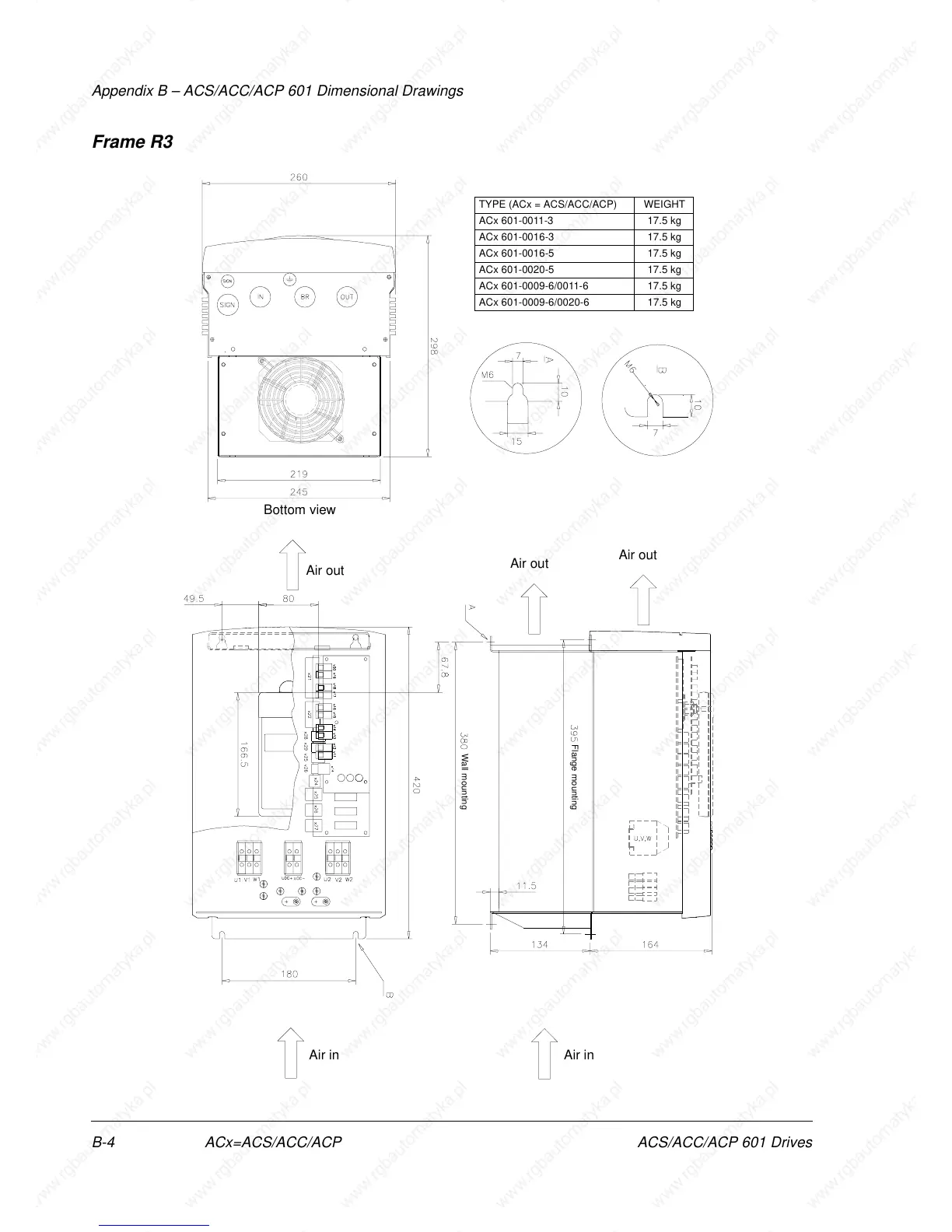

Appendix B – ACS/ACC/ACP 601 Dimensional Drawings
B-4 ACx=ACS/ACC/ACP ACS/ACC/ACP 601 Drives
Frame R3
TYPE (ACx = ACS/ACC/ACP) WEIGHT
ACx 601-0011-3 17.5 kg
ACx 601-0016-3 17.5 kg
ACx 601-0016-5 17.5 kg
ACx 601-0020-5 17.5 kg
ACx 601-0009-6/0011-6 17.5 kg
ACx 601-0009-6/0020-6 17.5 kg
Air out
Air in Air in
Air out
Air out
Bottom view
Flange mounting
Wall mounting
