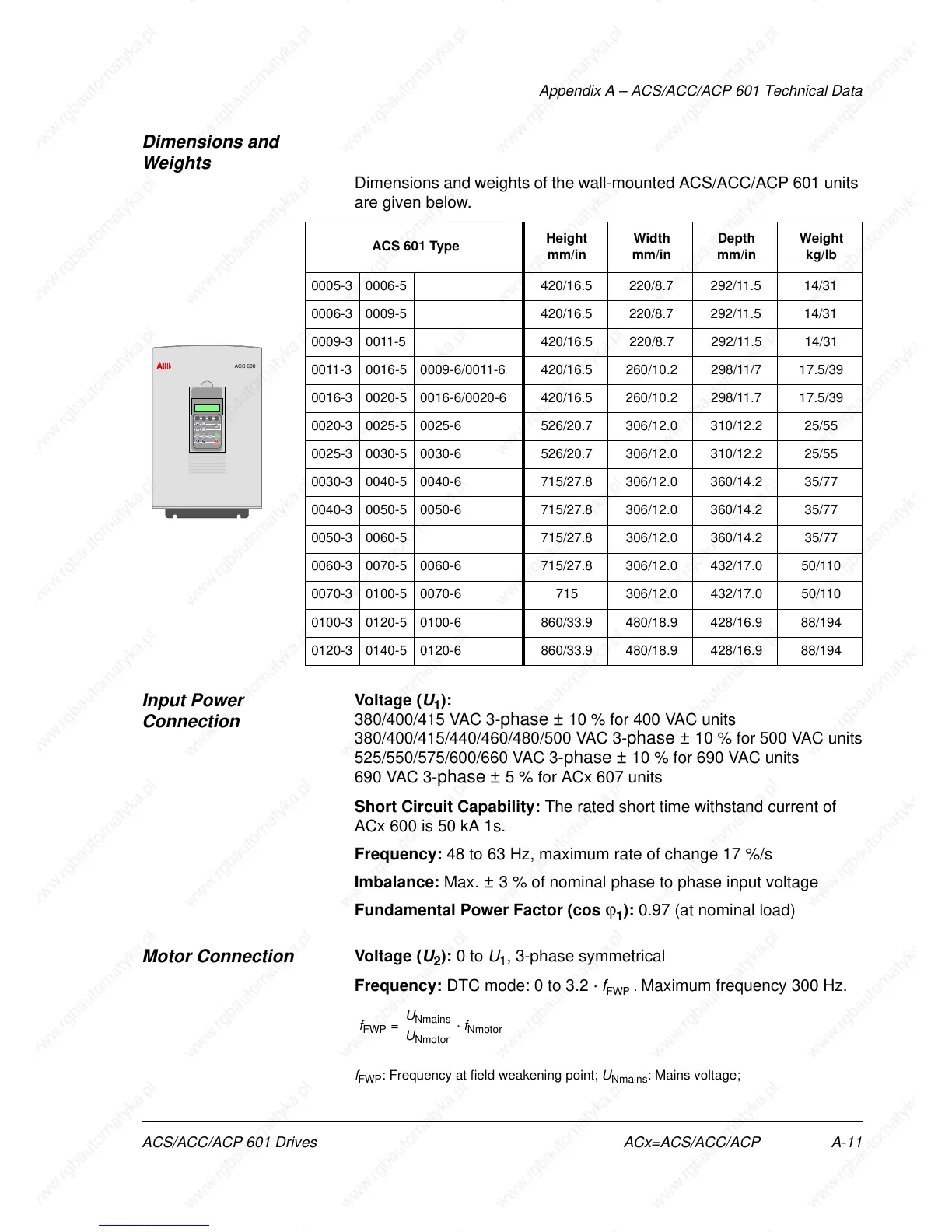

Appendix A – ACS/ACC/ACP 601 Technical Data
ACS/ACC/ACP 601 Drives ACx=ACS/ACC/ACP A-11
Dimensions and
Weights
Dimensions and weights of the wall-mounted ACS/ACC/ACP 601 units
are given below.
Input Power
Connection
Voltage ( U
1
):
380/400/415 VAC 3-
phase ± 10 % for 400 VAC units
380/400/415/440/460/480/500 VAC 3-
phase ± 10 % for 500 VAC units
525/550/575/600/660 VAC 3-
phase ± 10 % for 690 VAC units
690 VAC 3-
phase ± 5 % for ACx 607 units
Short Circuit Capability: The rated short time withstand current of
ACx 600 is 50 kA 1s.
Frequency: 48 to 63 Hz, maximum rate of change 17 %/s
Imbalance: Max.
± 3 % of nominal phase to phase input voltage
Fundamental Power Factor (cos
ϕ
1
): 0.97 (at nominal load)
Motor Connection
Voltage ( U
2
): 0 to U
1
, 3-phase symmetrical
Frequency: DTC mode: 0 to 3.2 ·
f
FWP
. Maximum frequency 300 Hz.
f
FWP
=
f
FWP
: Frequency at field weakening point; U
Nmains
: Mains voltage;
ACS 601 Type
Height
mm/in
Width
mm/in
Depth
mm/in
Weight
kg/lb
0005-3 0006-5 420/16.5 220/8.7 292/11.5 14/31
0006-3 0009-5 420/16.5 220/8.7 292/11.5 14/31
0009-3 0011-5 420/16.5 220/8.7 292/11.5 14/31
0011-3 0016-5 0009-6/0011-6 420/16.5 260/10.2 298/11/7 17.5/39
0016-3 0020-5 0016-6/0020-6 420/16.5 260/10.2 298/11.7 17.5/39
0020-3 0025-5 0025-6 526/20.7 306/12.0 310/12.2 25/55
0025-3 0030-5 0030-6 526/20.7 306/12.0 310/12.2 25/55
0030-3 0040-5 0040-6 715/27.8 306/12.0 360/14.2 35/77
0040-3 0050-5 0050-6 715/27.8 306/12.0 360/14.2 35/77
0050-3 0060-5 715/27.8 306/12.0 360/14.2 35/77
0060-3 0070-5 0060-6 715/27.8 306/12.0 432/17.0 50/110
0070-3 0100-5 0070-6 715 306/12.0 432/17.0 50/110
0100-3 0120-5 0100-6 860/33.9 480/18.9 428/16.9 88/194
0120-3 0140-5 0120-6 860/33.9 480/18.9 428/16.9 88/194
ACT PAR FUNC DRIVE
ENTER
LOC
REM
RESET REF
ACS 600
U
Nmains
U
Nmotor
· f
Nmotor
