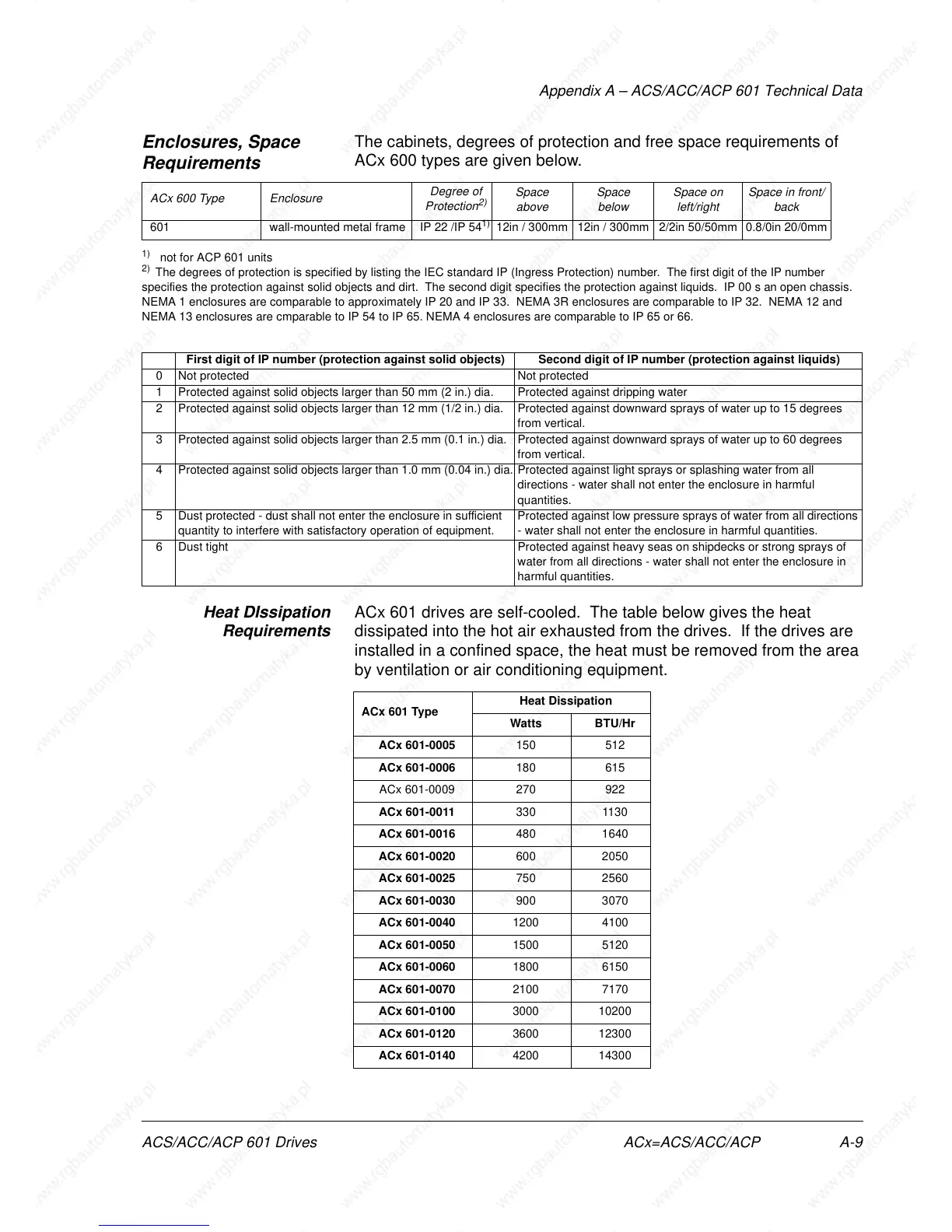

Appendix A – ACS/ACC/ACP 601 Technical Data
ACS/ACC/ACP 601 Drives ACx=ACS/ACC/ACP A-9
Enclosures, Space
Requirements
The cabinets, degrees of protection and free space requirements of
ACx 600 types are given below.
1)
not for ACP 601 units
2)
The degrees of protection is specified by listing the IEC standard IP (Ingress Protection) number. The first digit of the IP number
specifies the protection against solid objects and dirt. The second digit specifies the protection against liquids. IP 00 s an open chassis.
NEMA 1 enclosures are comparable to approximately IP 20 and IP 33. NEMA 3R enclosures are comparable to IP 32. NEMA 12 and
NEMA 13 enclosures are cmparable to IP 54 to IP 65. NEMA 4 enclosures are comparable to IP 65 or 66.
Heat DIssipation
Requirements
ACx 601 drives are self-cooled. The table below gives the heat
dissipated into the hot air exhausted from the drives. If the drives are
installed in a confined space, the heat must be removed from the area
by ventilation or air conditioning equipment.
ACx 600 Type Enclosure
Degree of
Protection
2)
Space
above
Space
below
Space on
left/right
Space in front/
back
601 wall-mounted metal frame IP 22 /IP 54
1)
12in / 300mm 12in / 300mm 2/2in 50/50mm 0.8/0in 20/0mm
First digit of IP number (protection against solid objects) Second digit of IP number (protection against liquids)
0 Not protected Not protected
1 Protected against solid objects larger than 50 mm (2 in.) dia. Protected against dripping water
2 Protected against solid objects larger than 12 mm (1/2 in.) dia. Protected against downward sprays of water up to 15 degrees
from vertical.
3 Protected against solid objects larger than 2.5 mm (0.1 in.) dia. Protected against downward sprays of water up to 60 degrees
from vertical.
4 Protected against solid objects larger than 1.0 mm (0.04 in.) dia. Protected against light sprays or splashing water from all
directions - water shall not enter the enclosure in harmful
quantities.
5 Dust protected - dust shall not enter the enclosure in sufficient
quantity to interfere with satisfactory operation of equipment.
Protected against low pressure sprays of water from all directions
- water shall not enter the enclosure in harmful quantities.
6 Dust tight Protected against heavy seas on shipdecks or strong sprays of
water from all directions - water shall not enter the enclosure in
harmful quantities.
ACx 601 Type
Heat Dissipation
Watts BTU/Hr
ACx 601-0005 150 512
ACx 601-0006 180 615
ACx 601-0009 270 922
ACx 601-0011 330 1130
ACx 601-0016 480 1640
ACx 601-0020 600 2050
ACx 601-0025 750 2560
ACx 601-0030 900 3070
ACx 601-0040 1200 4100
ACx 601-0050 1500 5120
ACx 601-0060 1800 6150
ACx 601-0070 2100 7170
ACx 601-0100 3000 10200
ACx 601-0120 3600 12300
ACx 601-0140 4200 14300
