Chapter 3 – Electrical Installation
ACS/ACC/ACP 601 Drives ACx=ACS/ACC/ACP 3-11

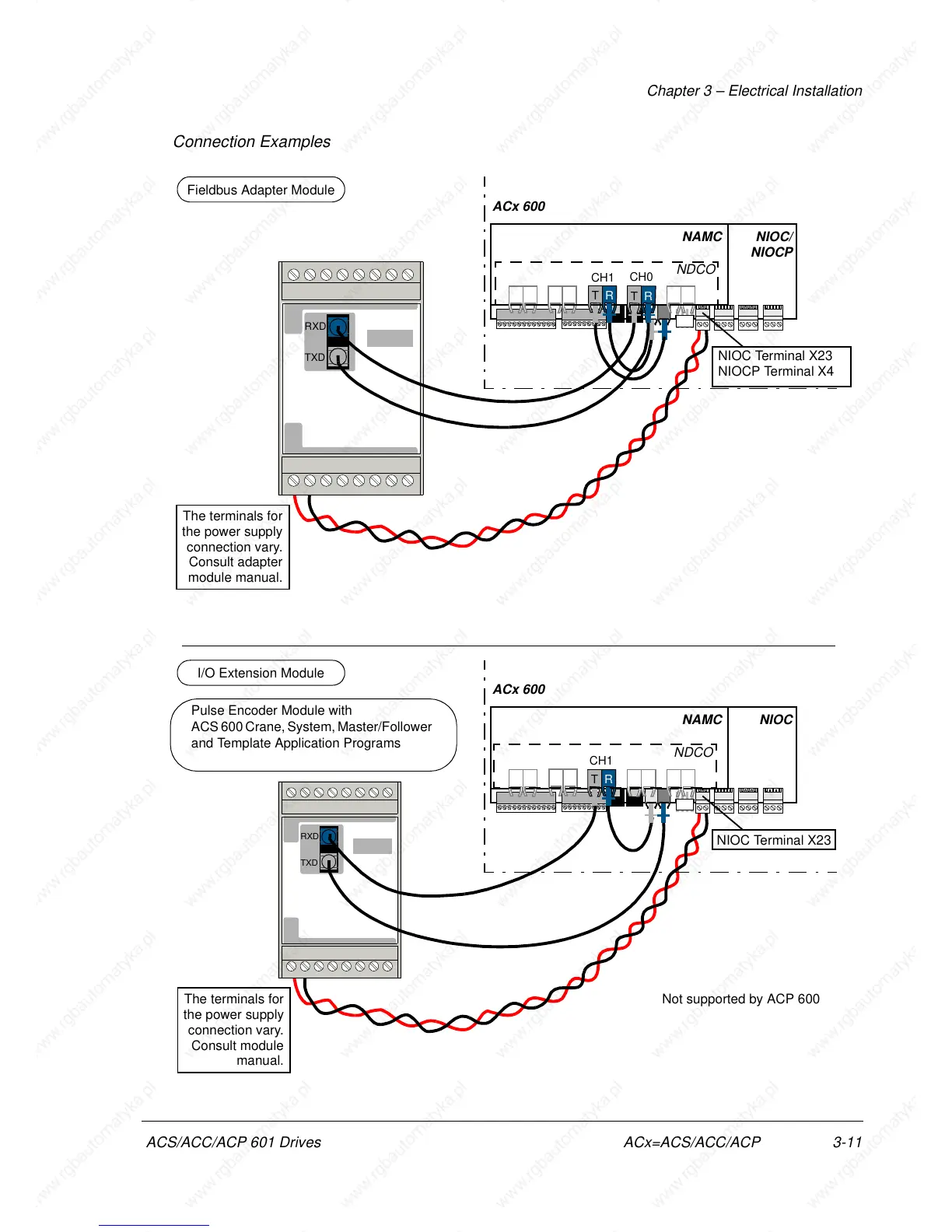

Connection Examples
TXD
RXD
T
R
Fieldbus Adapter Module
ACx 600
CH0
TXD
RXD
NAMC
RT
NIOC/
The terminals for
the power supply
connection vary.
Consult adapter
module manual.
T
R
I/O Extension Module
ACx 600
NAMC NIOC
NIOC Terminal X23
The terminals for
the power supply
connection vary.
Consult module
manual.
CH1
RT
RT
CH1
NIOCP
Not supported by ACP 600
NIOC Terminal X23
NIOCP Terminal X4
NDCO
NDCO
Pulse Encoder Module with
ACS 600 Crane, System, Master/Follower
and Template Application Programs
