Appendix B – ACS/ACC/ACP 601 Dimensional Drawings
ACS/ACC/ACP 601 Drives ACx=ACS/ACC/ACP B-7

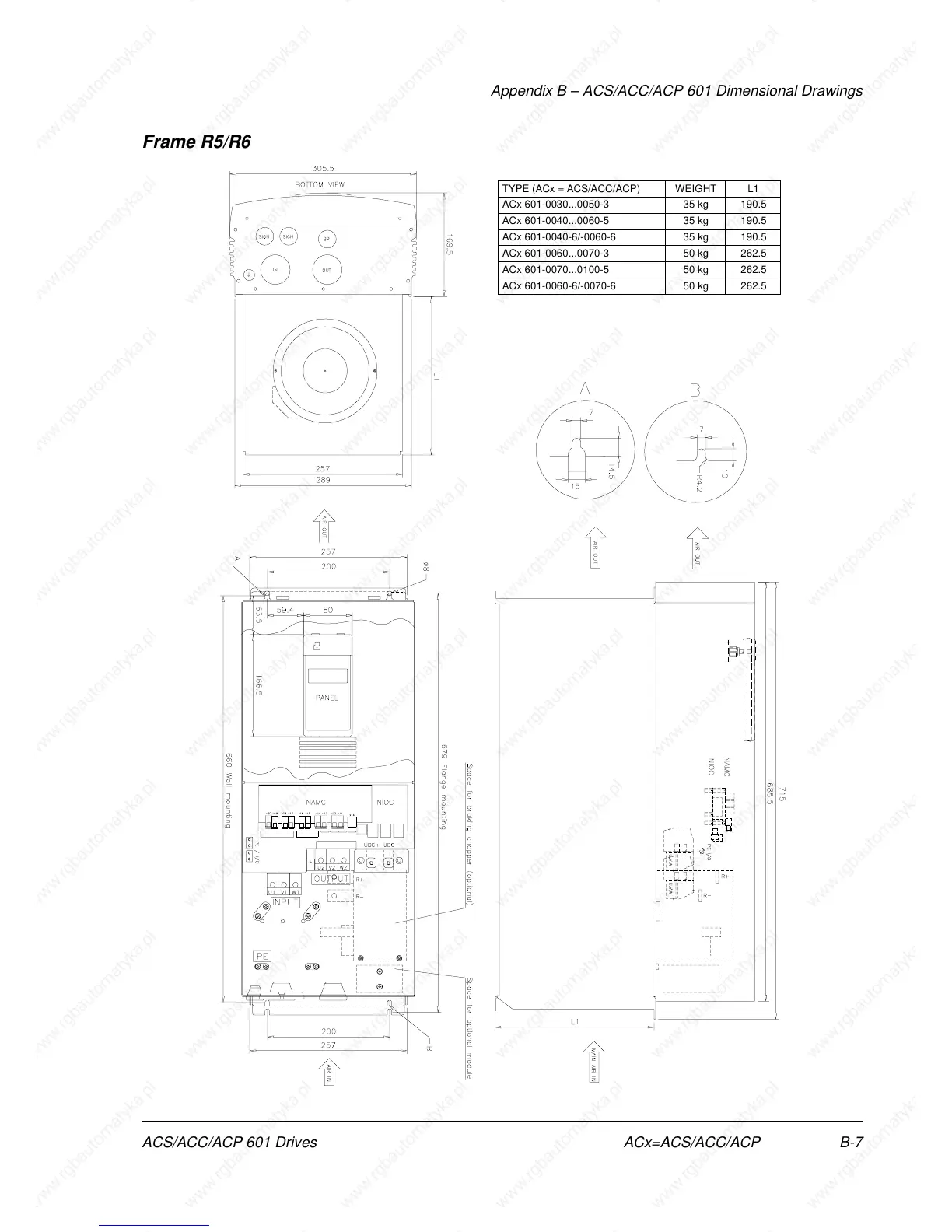

Frame R5/R6
TYPE (ACx = ACS/ACC/ACP) WEIGHT L1
ACx 601-0030...0050-3 35 kg 190.5
ACx 601-0040...0060-5 35 kg 190.5
ACx 601-0040-6/-0060-6 35 kg 190.5
ACx 601-0060...0070-3 50 kg 262.5
ACx 601-0070...0100-5 50 kg 262.5
ACx 601-0060-6/-0070-6 50 kg 262.5
