07 ELECTRICAL INSTALLATION
3BHS213401 E01 REV H ACS1000 AIR-COOLED USER MANUAL 95/184

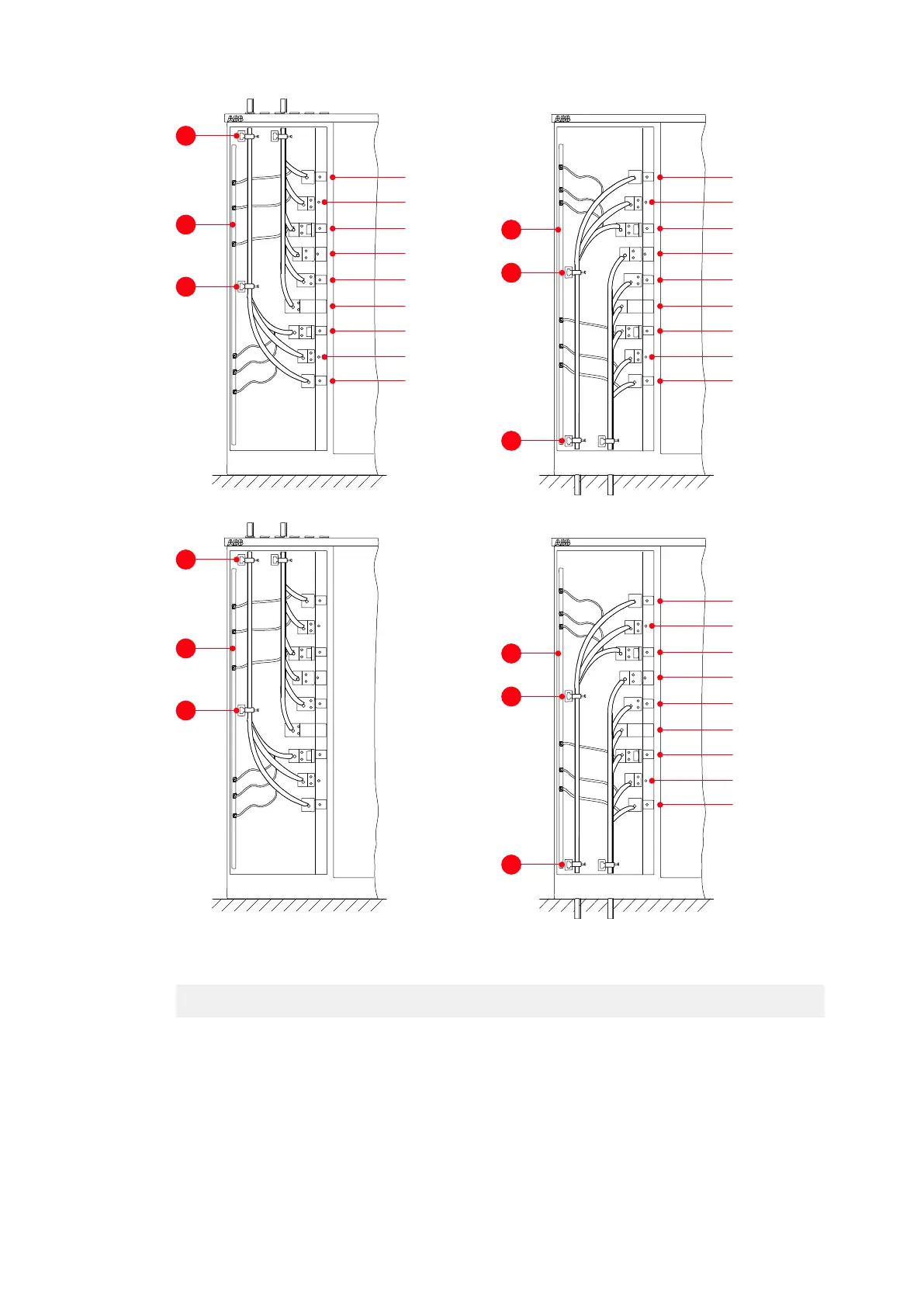

Figure 7-9: Power cable terminals in 12-pulse ACS1000 (top row) and 24-pulse
ACS1000 (bottom row)
(1) PE ground busbar (2) Strain relief rails
2U1
2V1
2W1
U2
V2
W2
1U1
1V1
1W1
2U1
2V1
2W1
U2
V2
W2
1U1
1V1
1W1
A
B
2U1/4U1
2V1/4V1
2W1/4W1
U2
V2
W2
1U1/3U1
1V1/3V1
1W1/3W1
A
B
2
2
1
2
2
1
2
2
1
2
2
1
