Parameters 107
Supervision1 Bit 0 of 06.13 Superv status (see page 76). 1073743373
Supervision2 Bit 1 of 06.13 Superv status (see page 76). 1073808909
Supervision3 Bit 2 of 06.13 Superv status (see page 76). 1073874445
Const Bit pointer setting (see Terms and abbreviations on page 63). -
Pointer
14.51 RO4 src Selects a drive signal to be connected to relay output RO4.
Const Bit pointer setting (see Terms and abbreviations on page 63). -
Pointer
14.54 RO5 src Selects a drive signal to be connected to relay output RO5.
Const Bit pointer setting (see Terms and abbreviations on page 63). -
Pointer

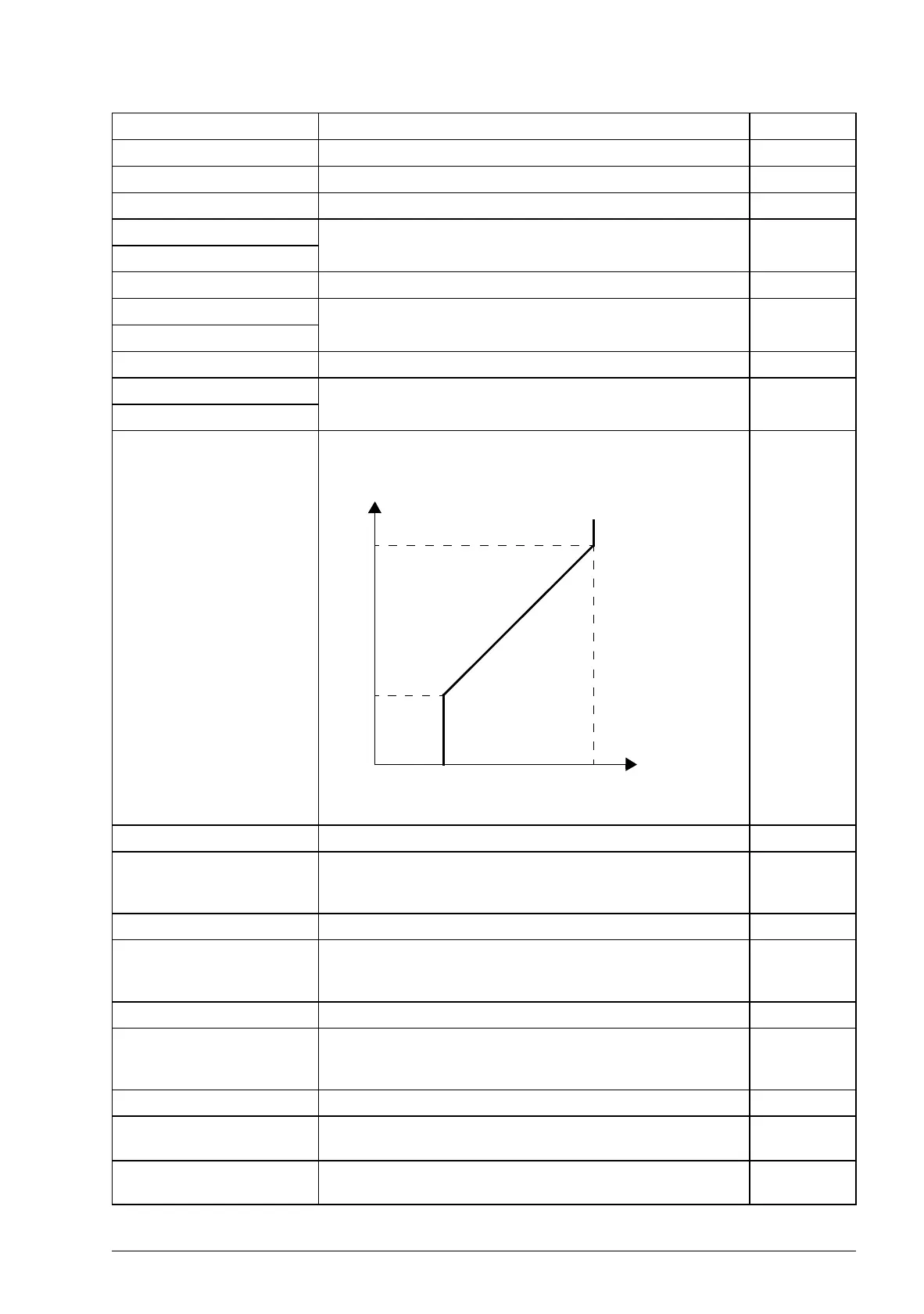

14.57 Freq in max Defines the maximum input frequency for DIO2 when
parameter 14.06 DIO2 conf is set to Freq input.
3 … 32768 Hz DIO2 maximum frequency. 1 = 1 Hz
14.58 Freq in min Defines the minimum input frequency for DIO2 when
parameter 14.06 DIO2 conf is set to Freq input. (See diagram
at parameter 14.57 Freq in max.)
3 … 32768 Hz DIO2 minimum frequency. 1 = 1 Hz
14.59 Freq in max scal Defines the real value that corresponds to the maximum input
frequency defined by parameter 14.57 Freq in max. (See
diagram at parameter 14.57 Freq in max.)
-32768 … 32768 Real value corresponding to DIO2 maximum frequency. 1 = 1
14.60 Freq in min scal Defines the real value that corresponds to the minimum input
frequency defined by 14.58 Freq in min. (See diagram at
parameter 14.57 Freq in max.)
-32768 … 32768 Real value corresponding to DIO2 minimum frequency. 1 = 1
14.61 Freq out src Selects a drive signal to be connected to frequency output
DIO3 (when 14.10 DIO3 conf is set to Freq output).
Value pointer setting (see Terms and abbreviations on page
63).
-
No. Name/Value Description FbEq
f
DIO2
(Hz)
14.57
14.59
Signal (real)
14.60
14.58
