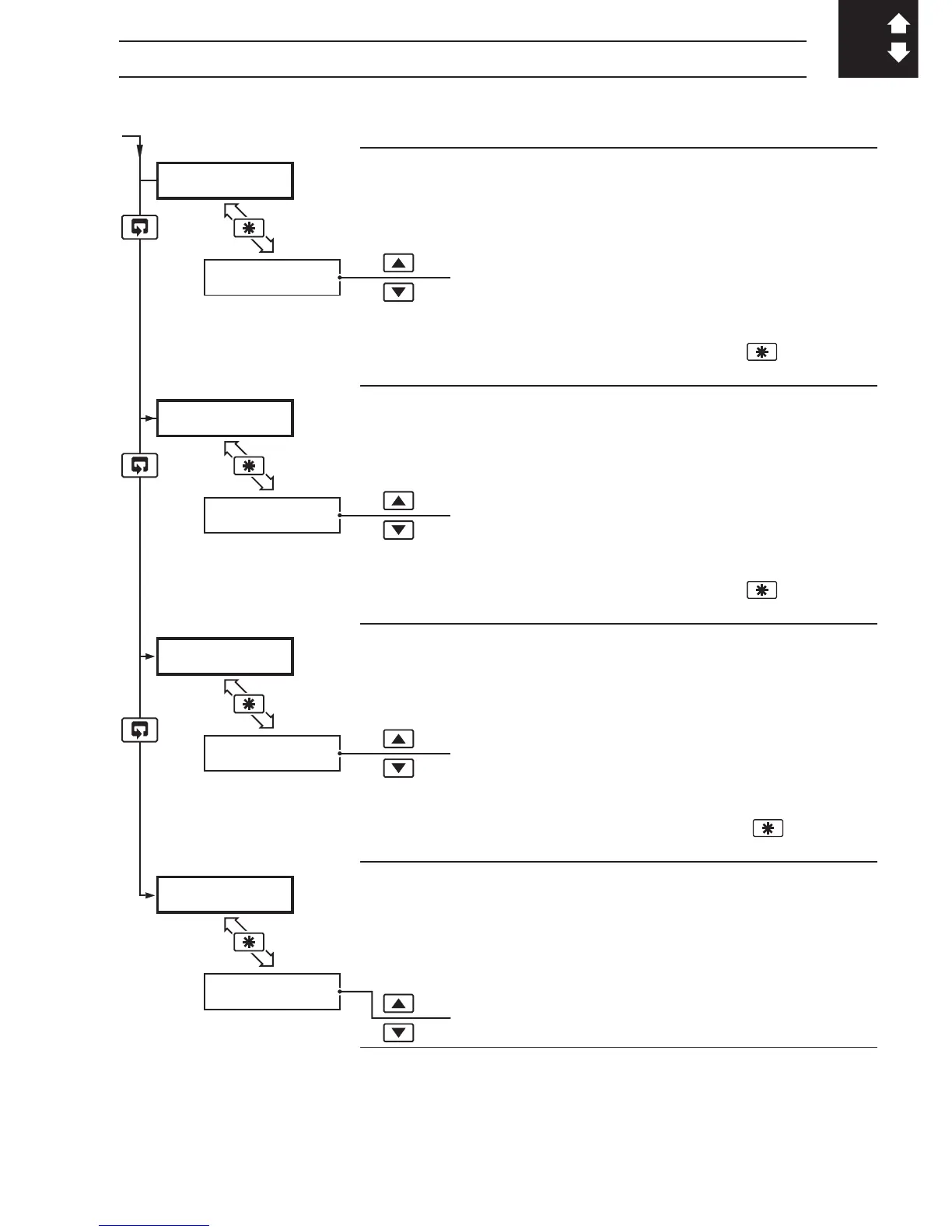

3 SET UP MODE…
…3.2 Set Up Level (Level 2)
•1 The average value is reset automatically on power-up and can also be reset from
a digital input – see Section 4.3.4.
•2 The maximum and minimum values are reset automatically on power-up and can
also be reset from a digital input – see Section 4.3.4.
Average Value
This is the mean average value of the process variable
input since the average was reset.
rSt-Y – reset
rSt-n – do not reset
To reset, select
rSt-Y then press the key.
Maximum Value
This is the maximum value of the process variable since
the maximum was reset.
rSt-Y – reset
rSt-n – do not reset
To reset, select
rSt-Y then press the key.
Minimum Value
This is the minimum value of the process variable since
the minimum was reset.
rSt-Y – reset
rSt-n – do not reset
To reset , select
rSt-Y then press the key.
Offset Adjustment
An offset can be applied to the process variable input to
enable spot calibration or the removal of system errors.
[±10% of engineering range]
