F L O W- X INS T R U C T I O N M A N U A L | I M/ F L O W X - EN 29
X/P
Master meter pulses

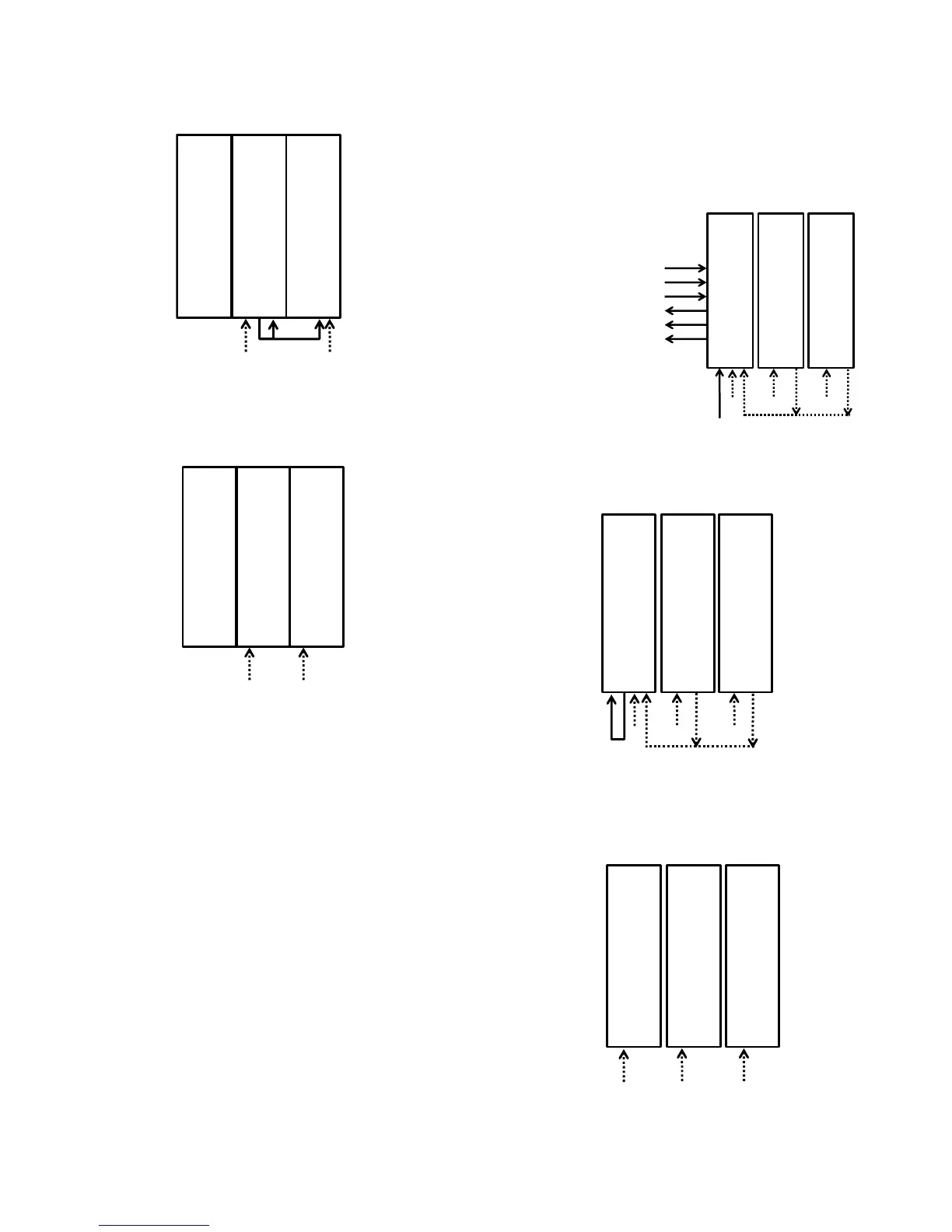

Figure 6-33: Master meter proving based on pulses on an X/P flow
computer.
X/P
Master meter totals
Figure 6-34: Master meter proving based on totalizers on an X/P flow
computer.
Prover flow computer with remote runs
Ball prover / Compact prover
 Connect the flow pulse signals to the corresponding run
modules
 Connect the prover bus pulse output of the run modules to the
prover bus pulse input of the prover module
 Connect all detector signals to the prover module
 Connect all applicable prove signals (except the detector
signals) to the prover module:
– prover pressure(s)
– prover temperature(s)
– prover densitometer
– 4-way valve commands and statuses
– prover commands and statuses
Master meter proving based on pulses
 Connect the flow pulse signals to the corresponding run
module(s) and master meter module
 Connect the prover bus pulse output of the run modules to the
‘prover bus pulse input’ of the prover module
 Connect a digital output of the prover module to a digital input
(prove detector in) of itself
Master meter proving based on totals
 No connections to be made (except from the pulse inputs in
case of pulse meters)
Remote
Ball / Compact prover
Figure 6-35: Prover flow computer with one local run and remote run
flow computers.
Remote
Master meter pulses
Figure 6-36: Master meter proving based on pulses on a prover flow
computer with remote runs
Remote
Master meter totals
Figure 6-37: Master meter proving based on totalizers on a proving
flow computer with remote runs.
PANEL RUN X
master
meter
RUN Y
Pulse in
Pulse in
Prove detector in
Digital out
Prove detector in
PANEL RUN X
master
meter
RUN Y
(Pulse in)
(Pulse in)
Prover pressure(s)
Prover temperature(s)
Prover densitometer
4-way valve commands
Prove start command
Plenum pressure commands
RUN 1
Prover
RUN X RUN Y
Prove detector(s) in
Pulse in
Pulse in
Pulse in
Prover bus pulse out
Prover bus pulse out
Prover bus pulse in
RUN X
master
meter
RUN Y RUN Z
Pulse in
Pulse in
Prover bus pulse out
Prover bus pulse out
Pulse in
Prover bus pulse in
Prove detector in
Digital out
RUN X
master
meter
RUN Y RUN Z
(Pulse in)
(Pulse in)
(Pulse in)
