ABB Flow-X/C User Manual

42 S P I R I T
IT
F L O W- X INS T R U C T I O N M A N U A L | I M/ F L O W X - EN

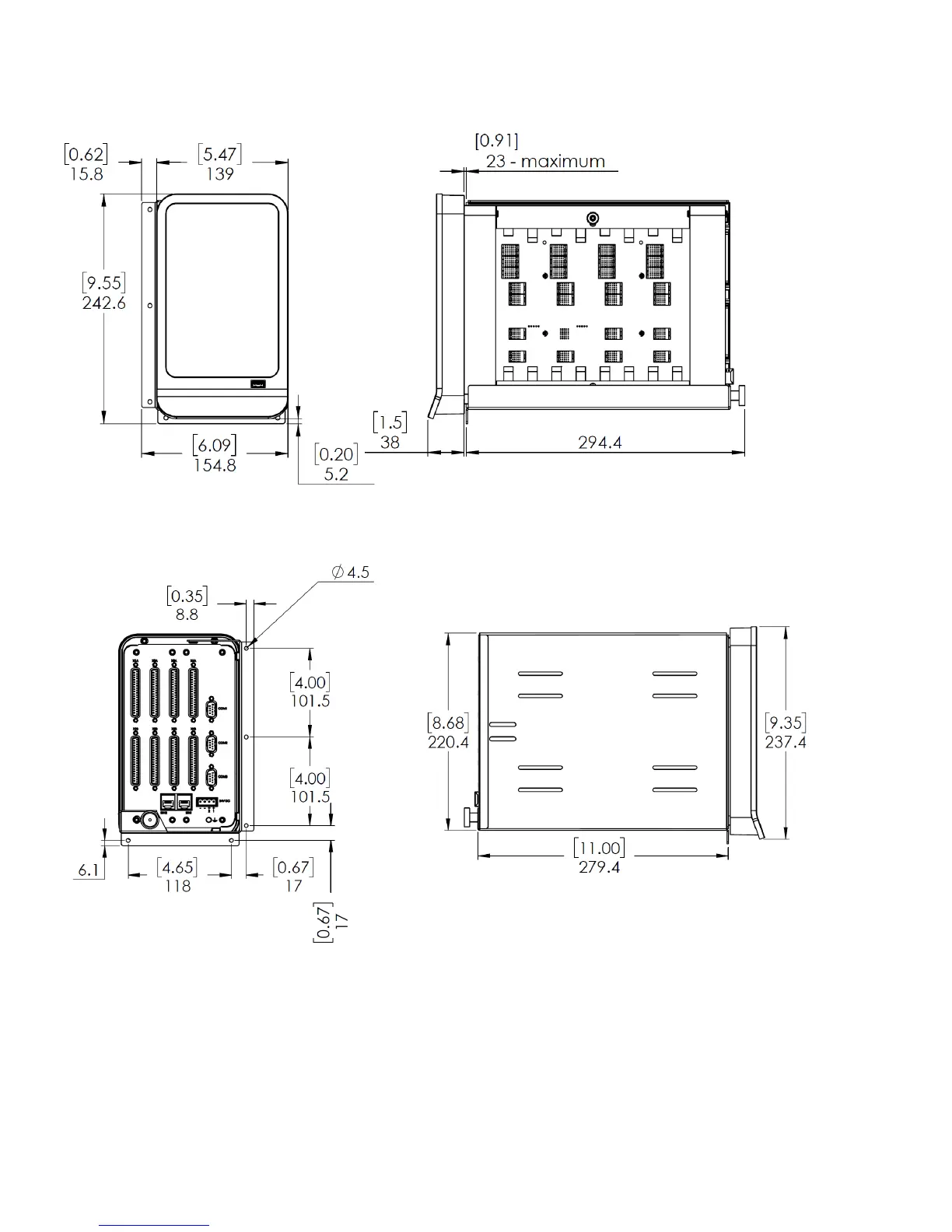

Flow-X/P Panel version 2 mounted enclosure
Figure 10-6 Flow-X/P version 2 Front view dimensions
Figure 10-7 Flow-X/P version 2 right side view dimensions
Figure 10-8 Flow-X/P version 2 rear view dimensions
Figure 10-9 Flow-X/P version 2 left side view dimensions
