50 S P I R I T
IT
F L O W- X INS T R U C T I O N M A N U A L | I M/ F L O W X - EN

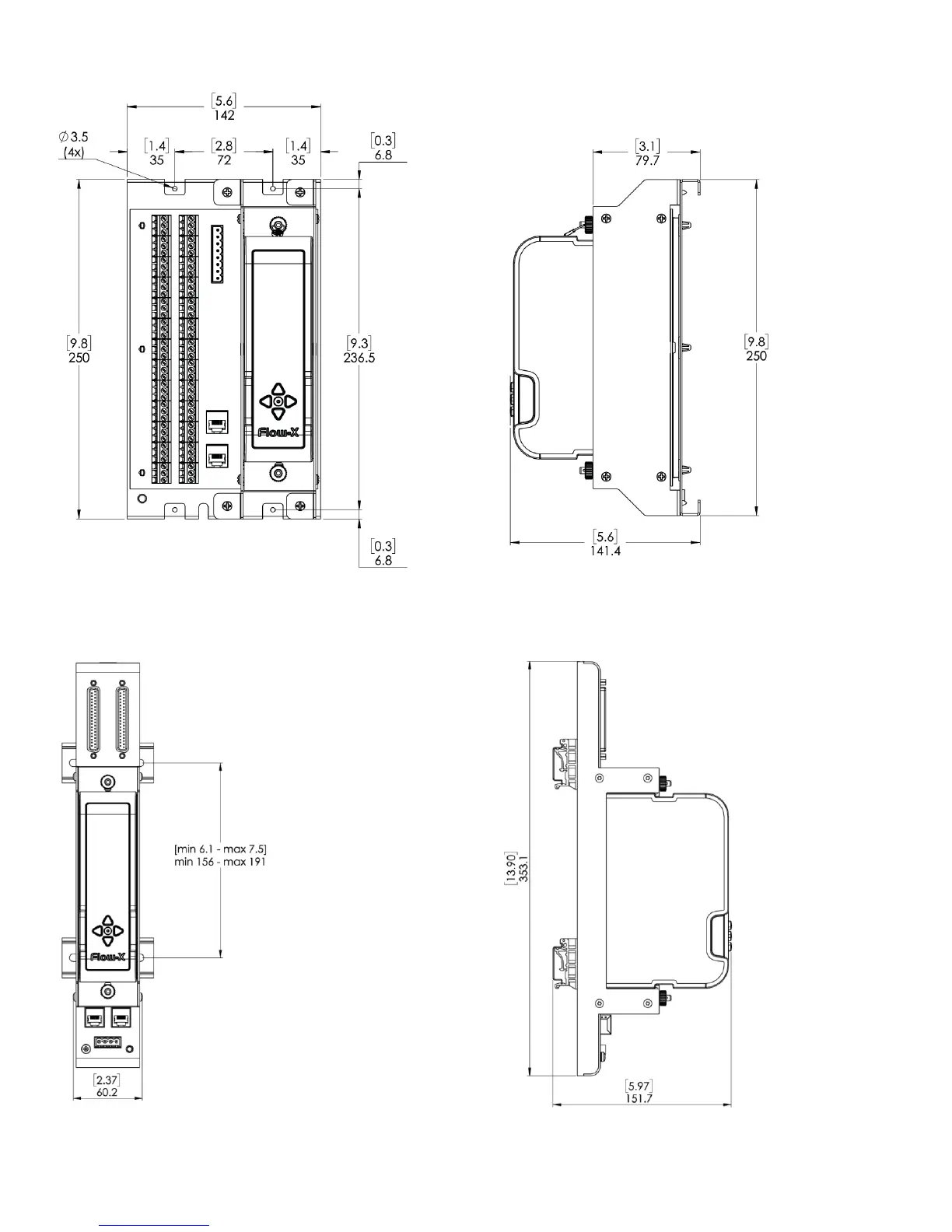

Figure 10-29 Flow-X/S Wall mount dimensions Figure 10-30 Flow-X/S Wall mounted side view dimensions
Flow-X/K enclosure
Figure 10-31 Flow-X/K Din rail mounted front view dimensions Figure 10-32 Flow-X/K Din rail mounted side view dimensions
