F L O W- X INS T R U C T I O N M A N U A L | I M/ F L O W X - EN
10 Drawings
All sizes are in mm. Sizes in square brackets e.g. [5] are inches.
Flow-X/P Panel version 1 mounted enclosure

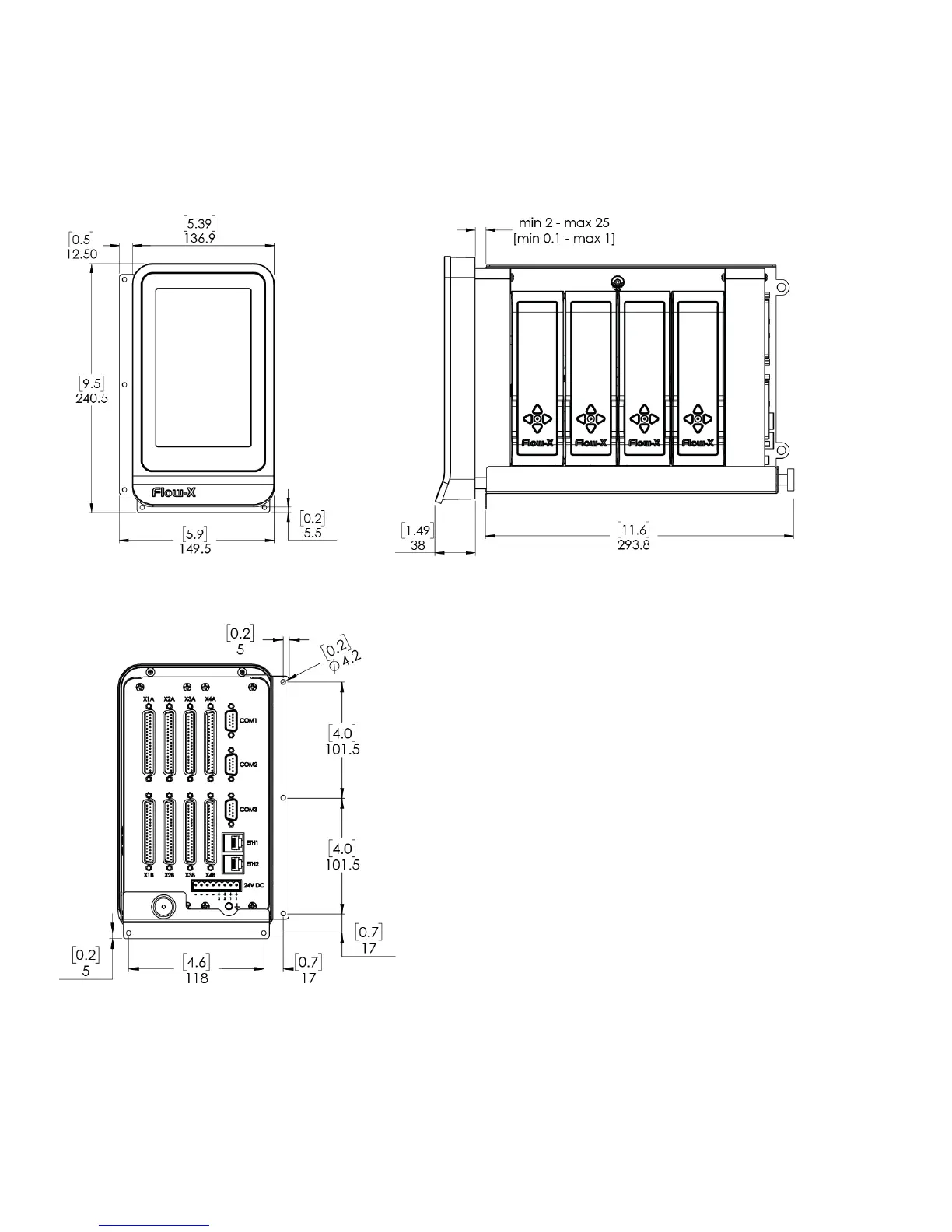

Figure 10-1 Flow-X/P Front view dimensions Figure 10-2 Flow-X/P Side view dimensions
Figure 10-3 Flow-X/P rear view
