Flow-X/C Compact panel mount enclosure

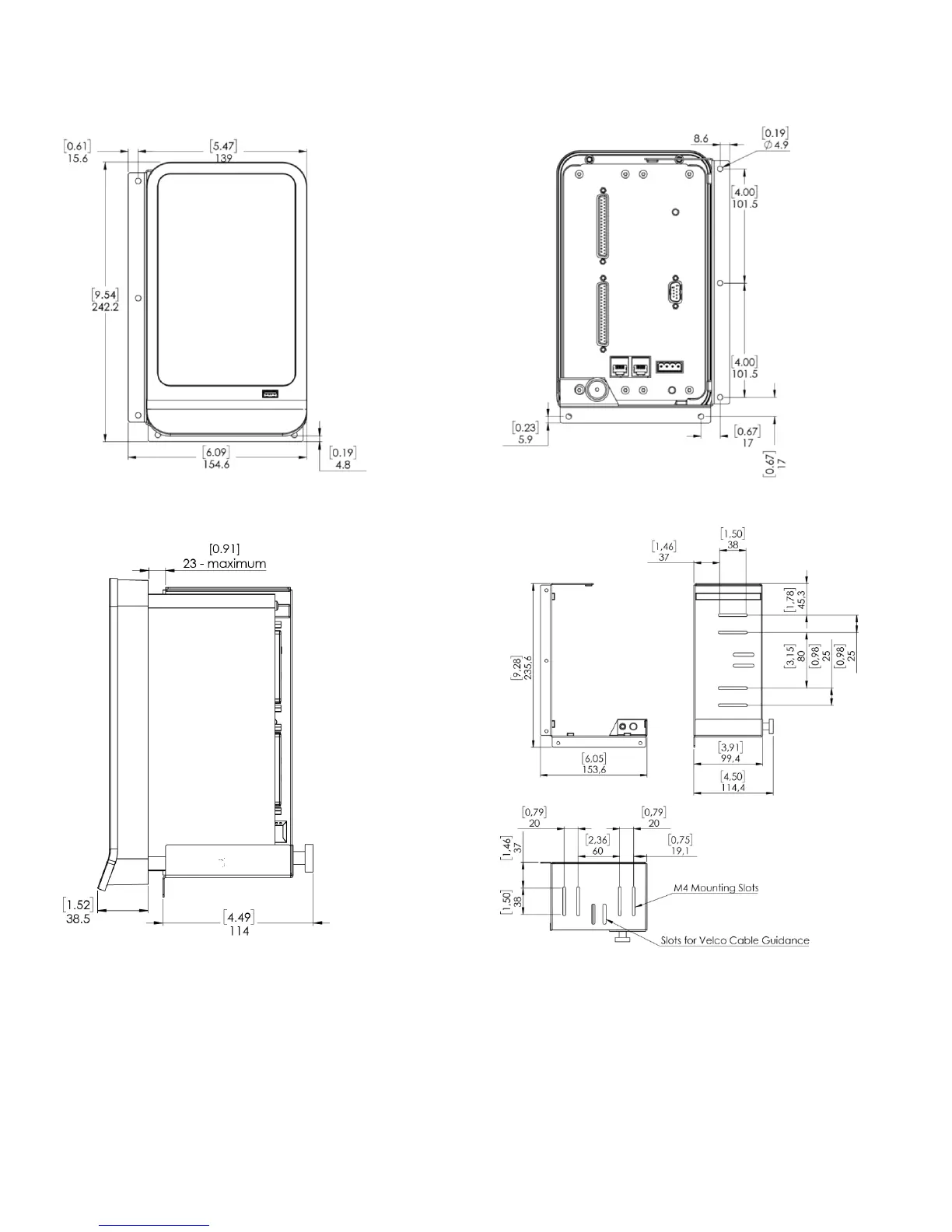

Figure
10
-
13
Flow-X
/C Front view dimensio
ns
Figure
10
-
14
Flow-X/C rear
vi
ew
Figure
10
-
15
Flow
-X/C Side view
di
mensio
ns
Figure
10
-
16
Flow-X/C Bracket
dimensions
43
45
Table of Contents
Default Chapter
2
Table of Contents
2
1 Manual Introduction
3
Purpose of this Manual
3
Overview
3
Document Conventions
3
Abbreviations
4
Terms and Definitions
5
2 Regulatory Compliance
6
EU Directives
6
Ul / Csa
6
IEC Standards
6
3 The Spirit IT Flow-X Products
7
Introduction
7
Flow Modules
7
Nameplate
7
Enclosures
7
Multi-Module Mode
8
Security
8
Break-Out Board
9
Advantages
9
Maintenance and Cleaning Instructions
10
Recycling Information in Accordance with the WEEE
11
4 Getting Started
12
Location
12
Capabilities
12
Number of Modules
12
Redundancy
12
Fast Data Exchange
12
Display Requirements
12
Power Supply
12
Cabinet Space
13
Cost
13
5 Mechanical Installation
14
Introduction
14
Forced Ventilation
14
Flow-X/P
14
Flow-X/C
14
Flow-X/C Installation Example Instructions
15
Flow-X/R
17
Flow-X/S
17
Flow-X/K
17
Flow-X/B
17
6 Electrical Installation
18
Introduction
18
Location of Connectors
18
Enclosure Connector Details
19
Break-Out Board Connection Details
21
Connection Diagrams
22
Honeywell Enraf Calibron Small Volume Prover
27
Serial Communication
27
Proving Signals
28
Earth Ground Connection
30
7 Operator Panels
32
Introduction
32
Flow-X/P & Flow-X/C Touch Screen
32
Touchscreen Panel PC
32
Flow-X/M LCD Display
32
Spirit IT Flow-X Web Interface
32
Graphical User Interface Layout
33
8 Software
34
Introduction
34
Set up
34
Software Installation
35
9 Technical Specifications
36
General
36
Flow-X/M I/O Specifications
36
Power Consumption
39
Weight
39
10 Drawings
40
Flow-X/P Panel Version 1 Mounted Enclosure
40
Flow-X/P Panel Version 1 Mounting Bracket
41
Flow-X/P Panel Version 2 Mounted Enclosure
42
Flow-X/P Panel Version 2 Mounting Bracket
43
Flow-X/C Compact Panel Mount Enclosure
44
Flow-X/C Installation Guides
45
Flow-X/R Rack Mount Enclosure
48
Flow-X/S Single Module Enclosure
49
Flow-X/K Enclosure
50
Flow-X/B Breakout Board
51
7" Touch Panel PC
52
11 Configuration Sheet
53
12 O Diagnostics and Calibration
54
I/O Diagnostics
54
I/O Calibration
54
Calibration Points
54
Analog Input Calibration
54
PT100 Input Calibration
55
Analog Output Calibration
55
13 Revisions
