S P I R I T
IT
F L O W- X INS T R U C T I O N M A N U A L | I M/ F L O W X - EN 41

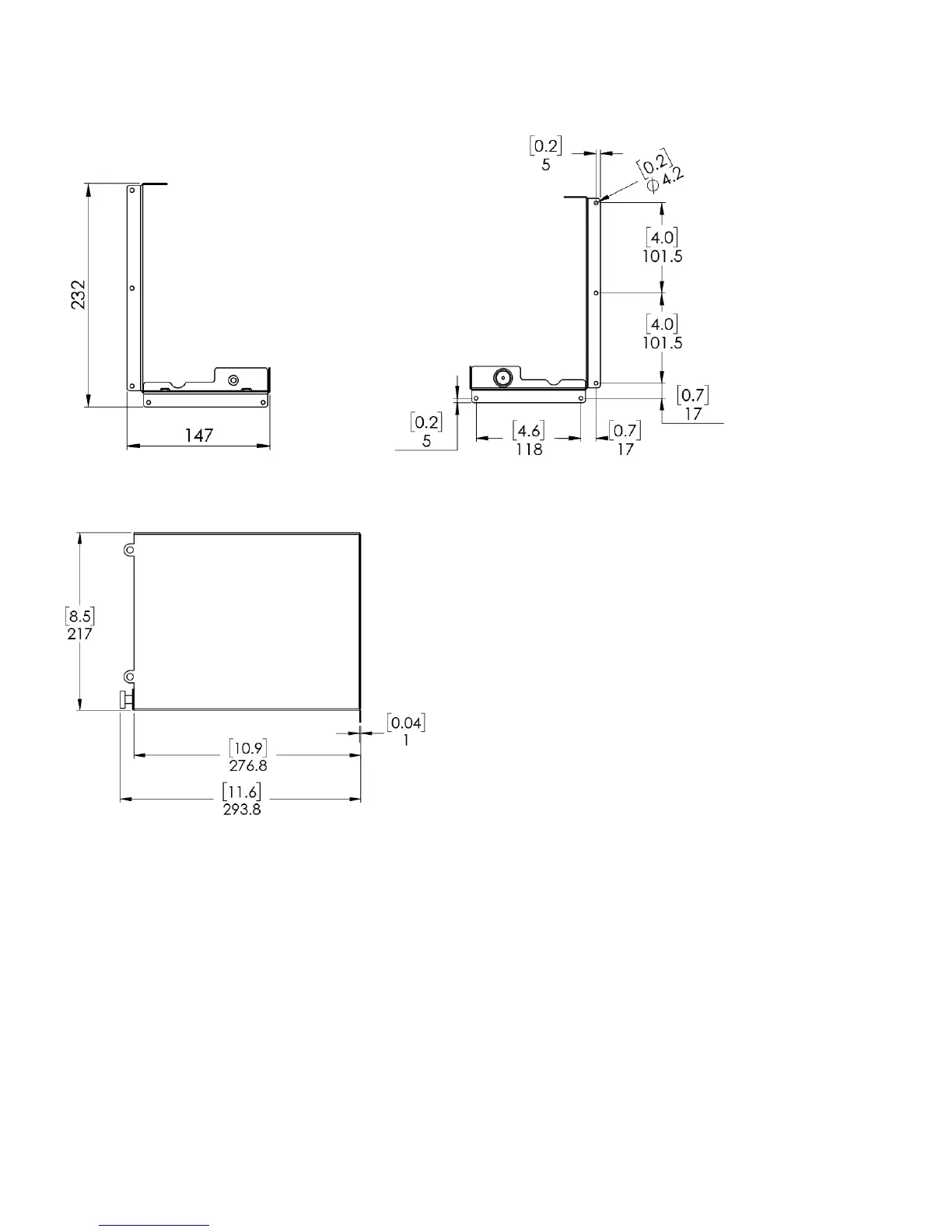

Flow-X/P Panel version 1 mounting bracket
Figure 10-4 Flow-X/P Bracket Front side dimensions Figure 10-5 Flow-X/P Bracket Back view dimensions
