5.4.4 Install the cable gland plate for the concrete foundation of the
power cabinet
Preliminary requirements
• Torque wrench • Cable gland plate
Procedure
1. Contact the manufacturer to order the
cable gland plate for your EVSE. Refer
to section 1.11.

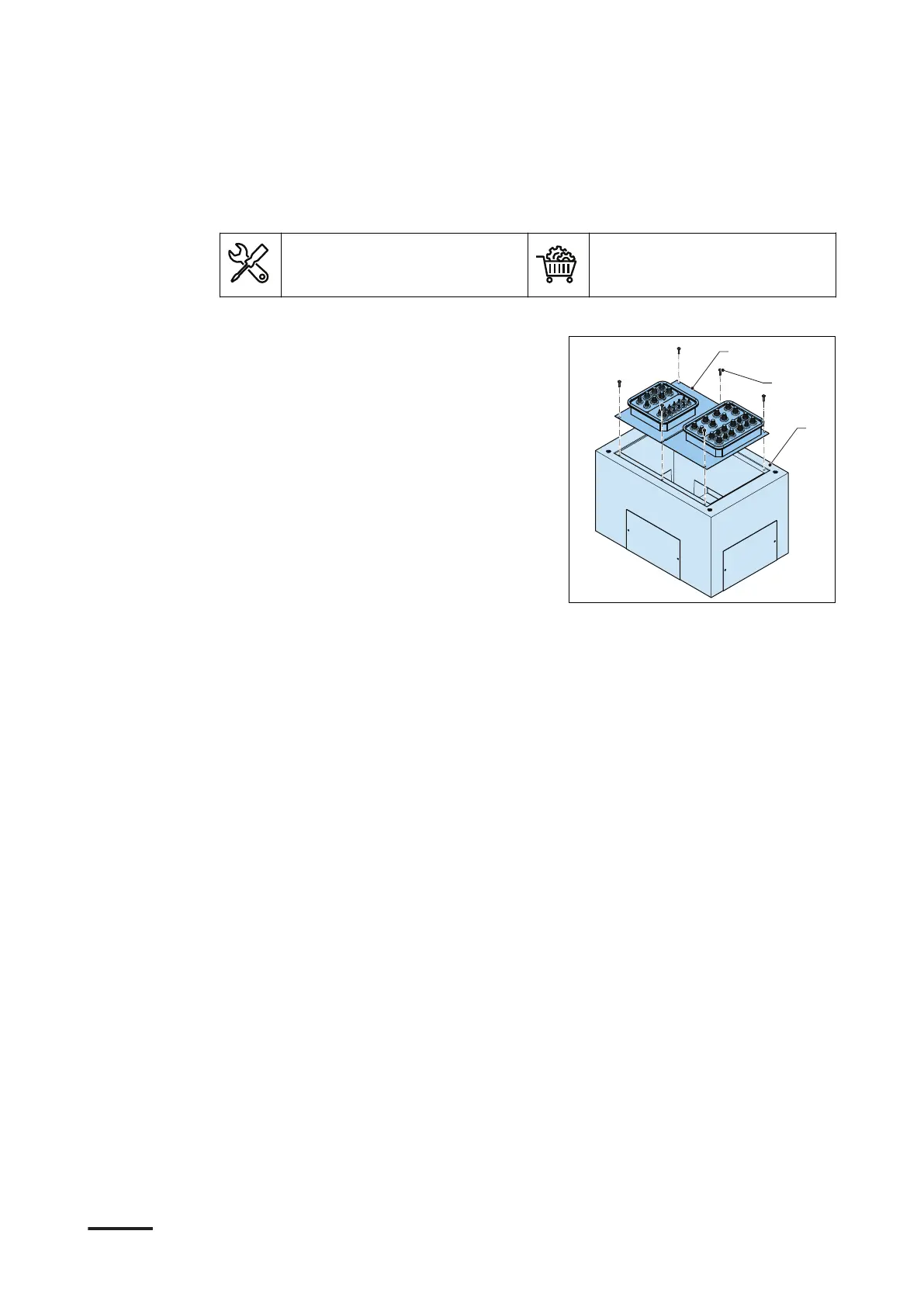

2. Guide the cables through the cable
gland plate (A).
3. Install the cable gland plate on the
foundation (B).
4. Install the fasteners (C) that are
supplied with the cable gland plate.
5. Tighten the fasteners to the correct
torque. For the specification, refer to
section 12.4.
A
B
C
