12.10 Foundation specifications
12.10.1 Power cabinet (custom foundation)
596174
65
172
318
354
501
689
836
872
1019
790
185 335
1190
1060
65
65 65
660
A
B

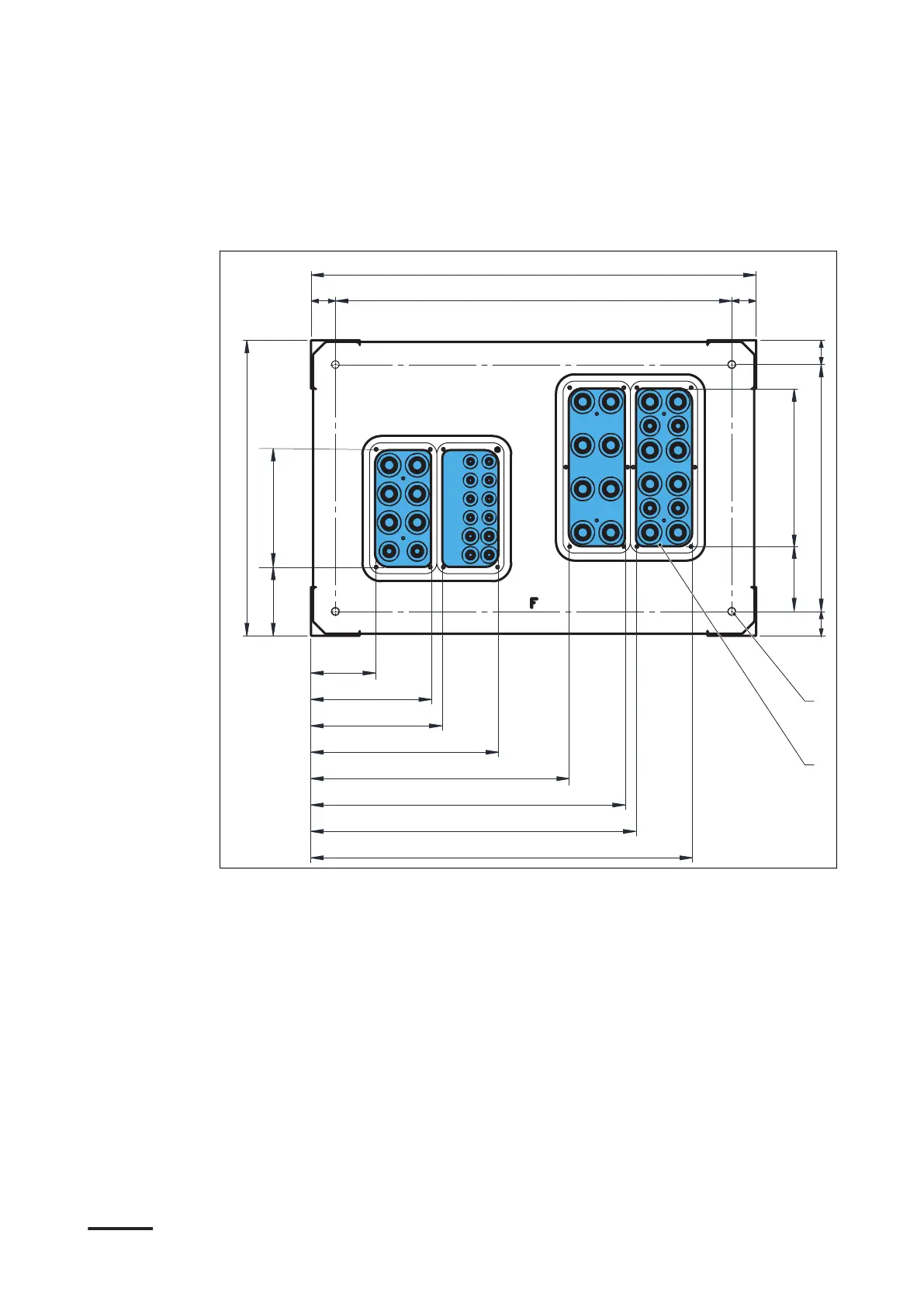

A Holes to install the fasteners of the
power cabinet
B gland plate
Technical data
80 HVC 200/300/360-EN | 002
