6.4.3 Do an inspection of the PE connection
Preliminary requirements
• Only do this procedure
when a different
procedure refers to this
procedure.
•
Procedure
1. Use a multimeter to make sure that the terminals X1-1 and X1-2 are not earthed.
2. If the terminals are earthed, then contact the manufacturer. Refer to 1.11.
6.4.4 Connect the 120 V cable for the precommissioning mode
Preliminary requirements
• Only do this procedure
when a different
procedure refers to this
procedure.
• AC single-phase cable. Refer
to section 12.13.4
• Ferrules
• Torque screwdriver, cross
• Wire cutter
• Wire stripper pliers
• Crimp pliers
•
Procedure

1. Install the ferrules on the wires. Refer
to section 6.3.16.
2. Loosen the screws of the terminal
block X-1.

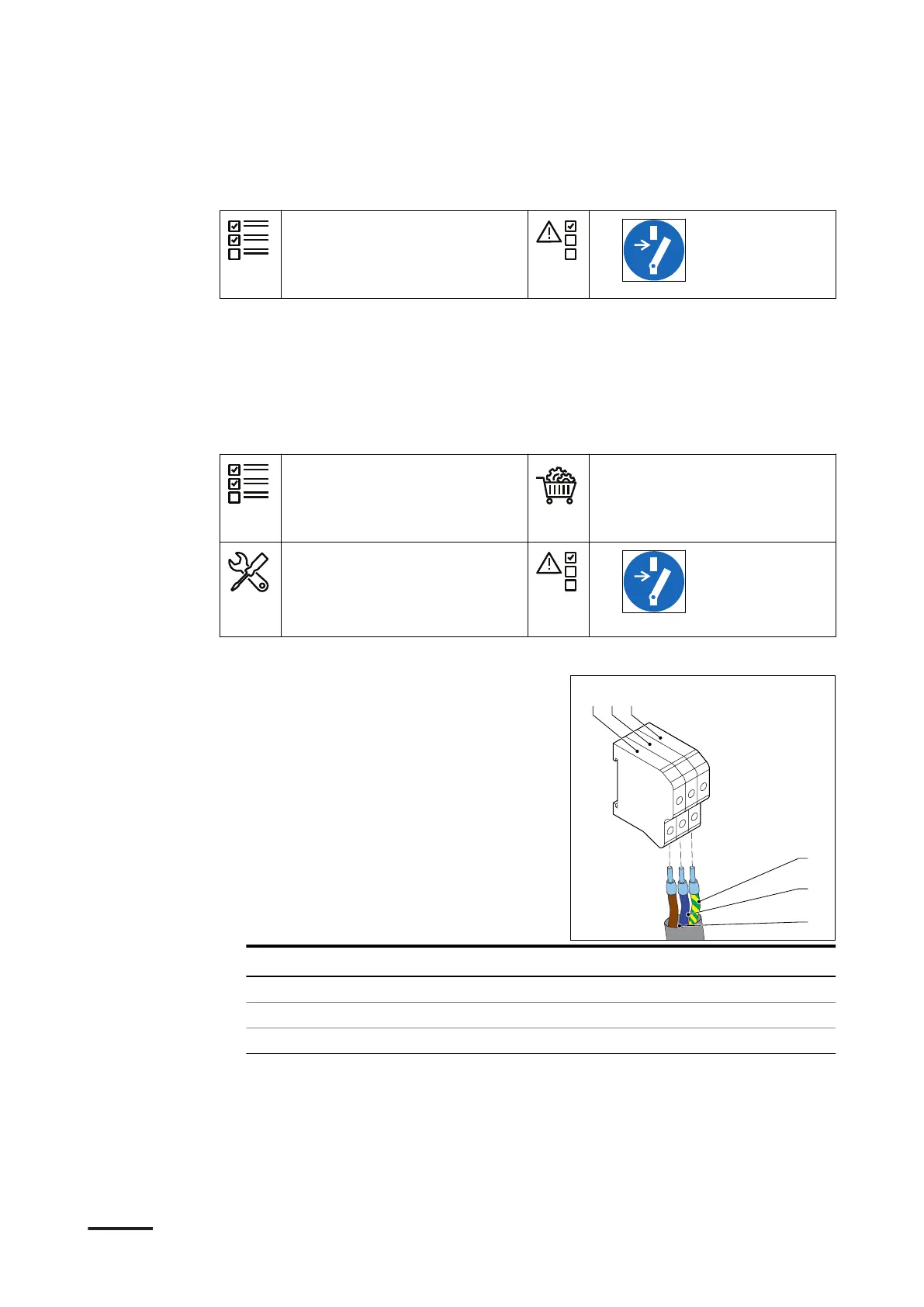

3. Connect the wires to the terminals.
Wire
Connect to terminal
L1 wire (A) X1-1 (D)
Neutral wire (B) X1-2 (E)
PE wire (C) X1-3 (F)
4. Tighten the screws to the correct torque. Refer to section 12.4.
C
A
B
FE
D
Installation
