6.3.5 Connect the AC auxiliary power cable (1 phase 120 V) in the power
cabinet
Preliminary requirements
• Torque screwdriver, cross
• Wire cutter
• Wire stripper pliers
• Crimp pliers
•
• 1 phase 120 V AC auxiliary
power cable. Refer to
section 12.13.4.
• Ferrules
Note:

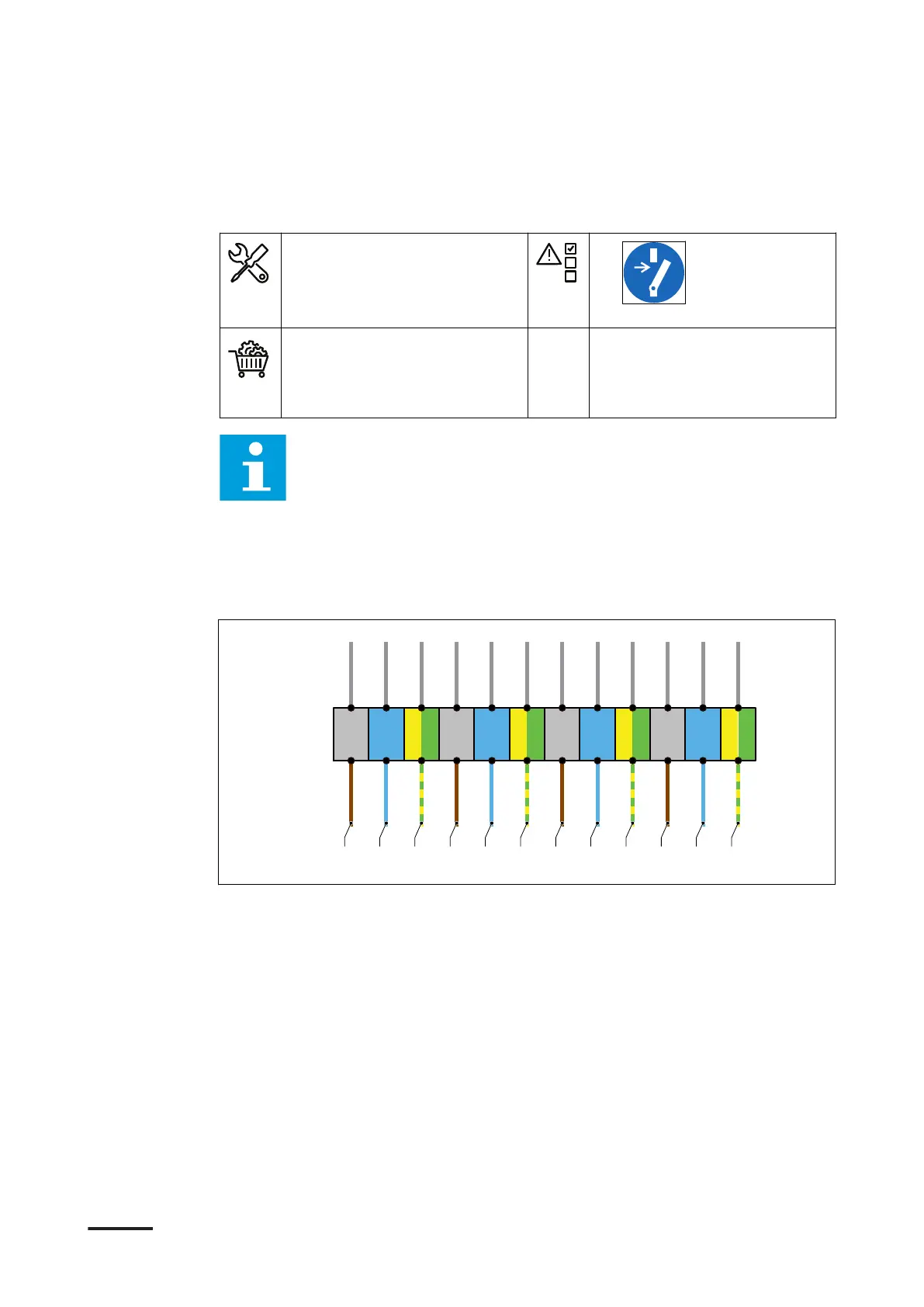

• The illustration shows the terminal block X2 on the power cabinet and
the connections treated in this section.
• For the specific connections, refer to the installation brief, the
installation drawing and the installation manuals of the devices
installed in the system you ordered.
• For information about the part numbers of the terminals, refer to
section 12.18.
Procedure
1. Prepare the wires that are mentioned below. Refer to section 6.3.16.
2. Loosen the screws of the terminal block X2.
54 8631 2 7 10 119 12
A B C D E F G H I J K L
-X2
Installation
HVC 200/300/360-EN | 002 45
