Procedure

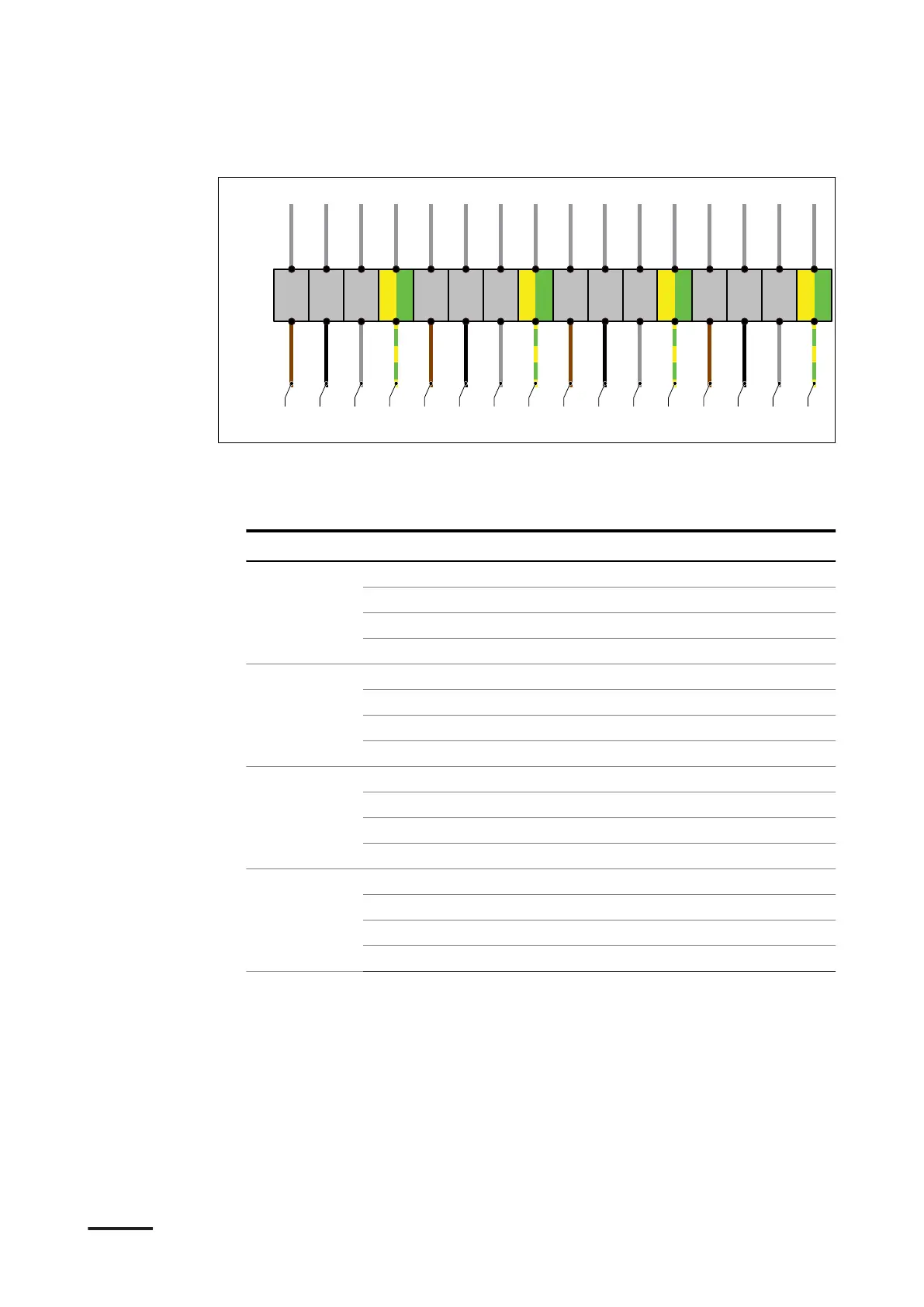

1. Prepare the wires that are mentioned below. Refer to section 6.3.16.
2. Loosen the screws of the terminal block X3.
3. Connect the below listed wires from the outlets. Use the illustration above as a
reference:
Outlet
Wire Connect to terminal
1 (A) L1 wire X3-1
(B) L2 wire X3-2
(C) L3 wire X3-3
(D) PE wire X4-4
2 (E) L1 wire X3-5
(F) L2 wire X3-6
(G) L3 wire X3-7
(H) PE wire X3-8
3 (I) L1 wire X3-9
(J) L2 wire X3-10
(K) L3 wire X3-11
(L) PE wire X3-12
4 (M) L1 wire X3-13
(N) L2 wire X3-14
(O) L3 wire X3-15
(P) PE wire X3-16
4. Tighten the screws to the correct torque. For the specification, refer to section
12.4.
41 2 3 5 6 7 9 10 11 13 14 158 12 16
A B C D E F G H I J K L M N O P
-X3
