10 Access to parts

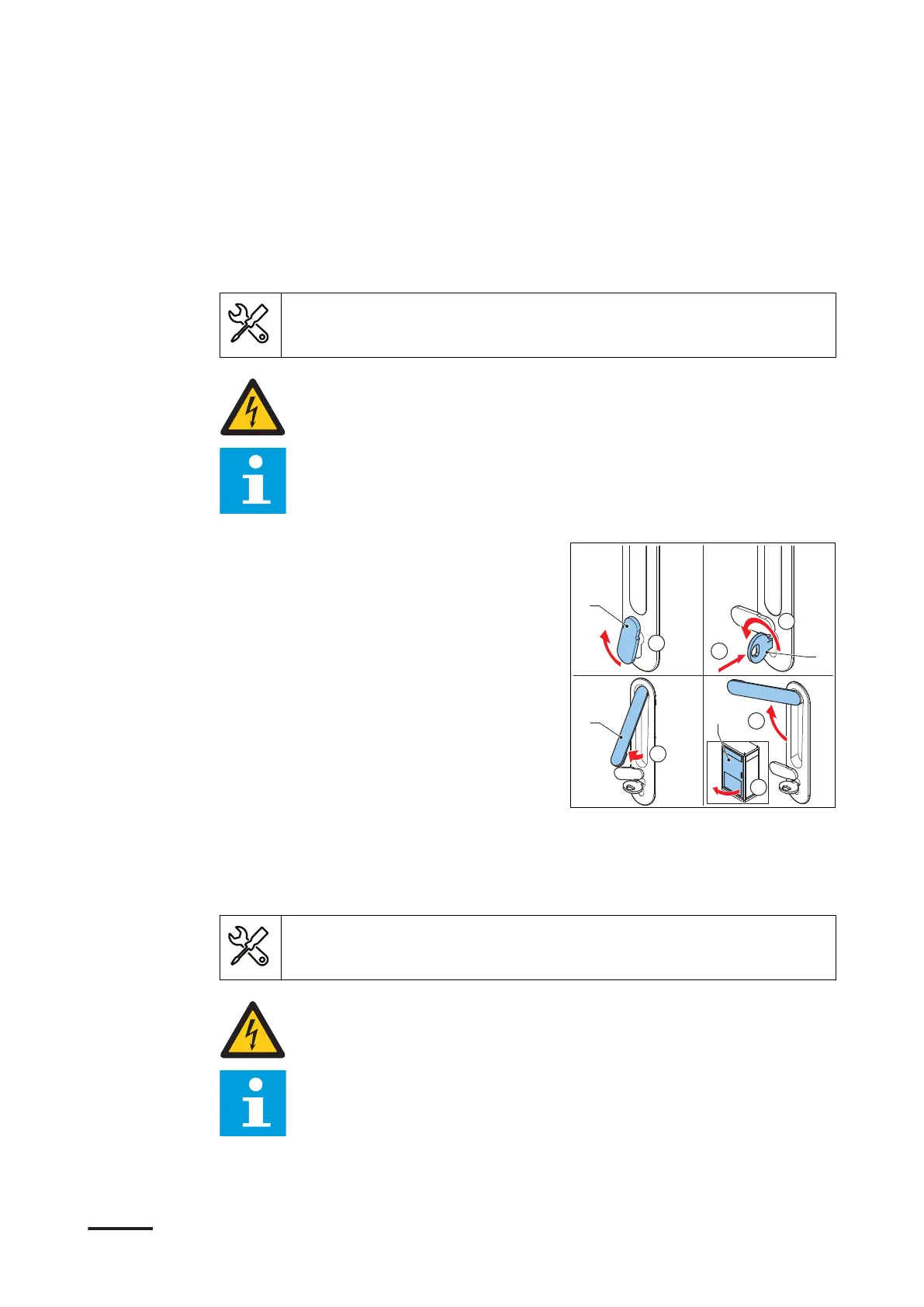

10.1 Open the door of the power cabinet
Preliminary requirements
• Door key of the power cabinet
Danger:
Hazardous voltage
• Make sure that only qualified personnel has access to the door key.
Note: There is one unique door key for each power cabinet.
Procedure
1. Turn the cover plate (A).
2. Insert the door key (B).
3. Turn the door key counterclockwise to
unlock the door (C).
4. Pull the handle (D).
5. Turn the handle clockwise.
6. Open the door.
10.2 Close the door of the power cabinet
Preliminary requirements
• Door key to the power cabinet.
Danger:
Hazardous voltage
• Make sure that only qualified personnel has access to the door key.
Note: There is one unique door key for each cabinet.
D
A
B
C
1
4
2
3
5
6
Access to parts
68 HVC 200/300/360-EN | 002
