Procedure
1. Prepare ferrules for the wires that are mentioned below. Refer to section 6.3.16.

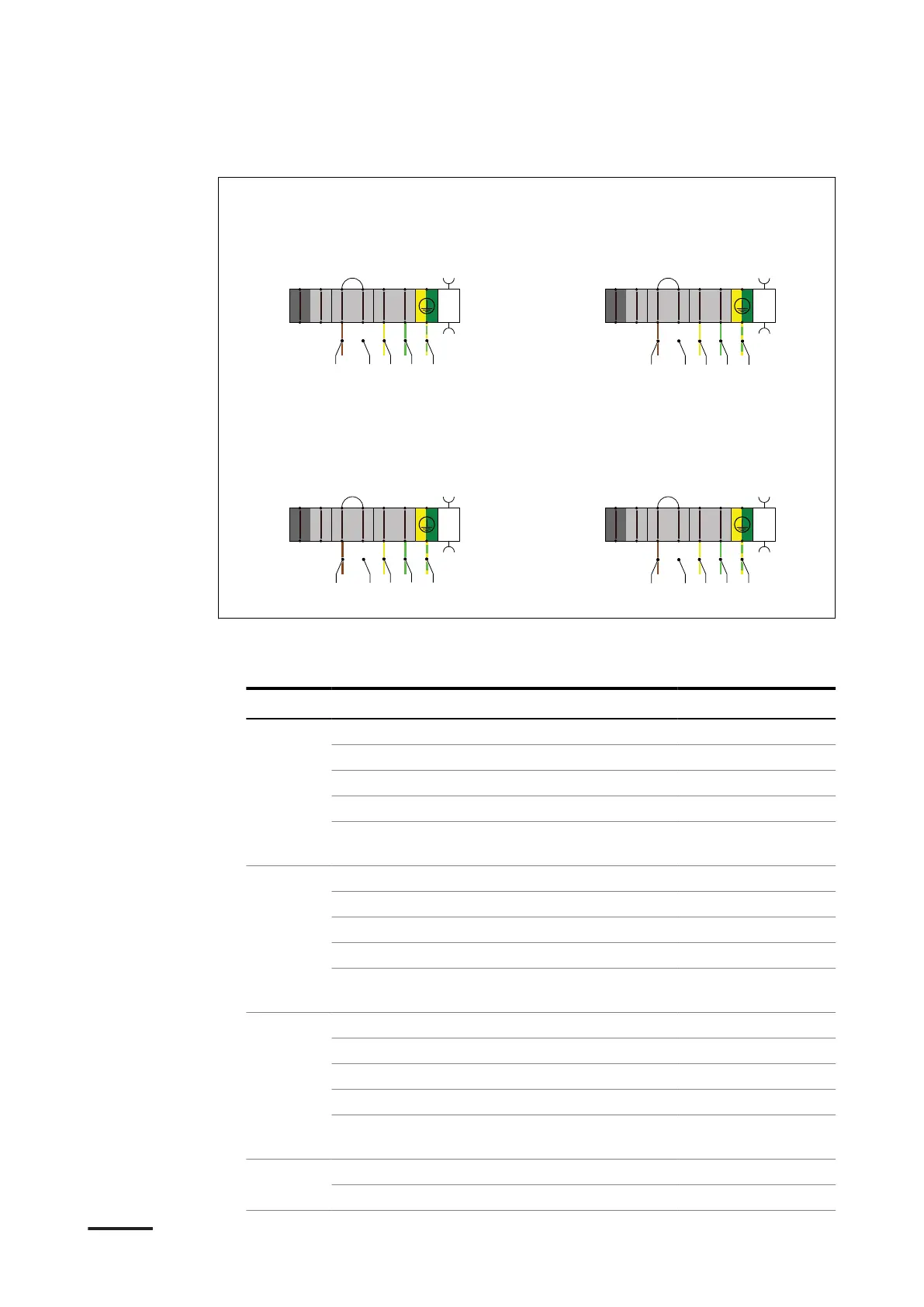

2. Connect the below listed wires from the outlets. Use the illustration above as a
reference:
Outlet
Wire Connect to terminal Terminal name
1 (A) Interlock OUT X4-3 INTERLOCK 1 OUT
(B) Interlock IN X4-4 INTERLOCK 1 IN
(C) DC guard signal X4-5 DC GUARD 1
(D) DC guard GND X4-6 DC GUARD 1 GND
(E) Ground wire or
shield mesh
X4 earthing terminal CP1 PE
2 (F) Interlock OUT X5-3 INTERLOCK 2 OUT
(G) Interlock IN X5-4 INTERLOCK 2 IN
(H) DC guard signal X5-5 DC GUARD 2
(I) DC guard GND X5-6 DC GUARD 2 GND
(J) Ground wire or
shield mesh
X5 earthing terminal CP2 PE
3 (K) Interlock OUT X6-3 INTERLOCK 3 OUT
(L) Interlock IN X6-4 INTERLOCK 3 IN
(M) DC guard signal X6-5 DC GUARD 3
(N) DC guard GND X6-6 DC GUARD3 GND
(O) Ground wire or
shield mesh
X6 earthing terminal CP3 PE
4 (P) Interlock OUT X7-3 INTERLOCK 4 OUT
(Q) Interlock IN X7-4 INTERLOCK 4 IN
TOP
BOT
TOP
BOT
TOP
BOT
11
22 33 44 55 66
RJ45
TOP
BOT
TOP
BOT
TOP
BOT
11
22 33 44 55 66
RJ45
TOP
BOT
TOP
BOT
TOP
BOT
11
22 33 44 55 66
RJ45
TOP
BOT
TOP
BOT
TOP
BOT
11
22 33 44 55 66
RJ45
INTERLOCK 1 OUT
INTERLOCK 1 IN
INTERLOCK 2 OUT
INTERLOCK 2 IN
INTERLOCK 3 OUT
INTERLOCK 3 IN
INTERLOCK 4 OUT
INTERLOCK 4 IN
CP1 PE
CP2 PE
CP3 PE
CP4 PE
-X4 -X5
-X6 -X7
DC GUARD 3
DC GUARD 1
DC GUARD 2
DC GUARD 4
DC GUARD 3 GND
DC GUARD 1 GND
DC GUARD 2 GND
DC GUARD 4 GND
A B
F G
K L
P Q
EC
D
JH
I
OM
N
TR
S
Installation
