NoteAction
xx2200000049

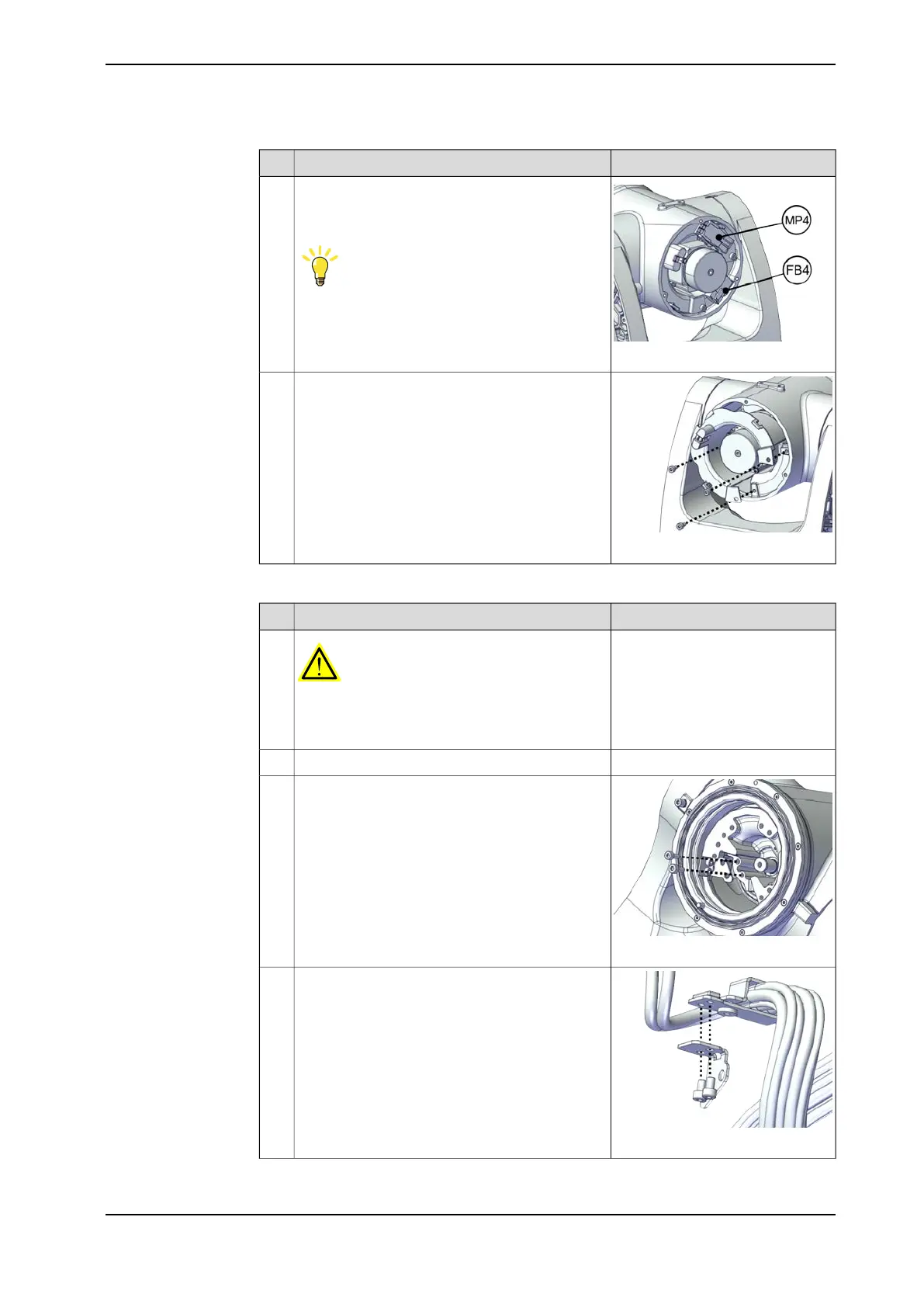

Disconnect the connectors.
• MP4
• FB4
Tip
Take photos of the connector and cable position
before disconnecting them, to have as a reference
when reconnecting.
3
xx2200000051
Remove the axis-4 cable protector.4
Pulling out the cable package from axis 4
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
Wrap the connectors with the masking tape.2
xx2200000052
Remove the axis-4 cable bracket to separate the
cable from the housing.
3
xx2200000558
Remove the axis-4 cable bracket from the cable.4
Continues on next page
Product manual - IRB 1010 119
3HAC081964-001 Revision: B
© Copyright 2022 ABB. All rights reserved.
5 Repair
5.3.1 Replacing the cable package
Continued
