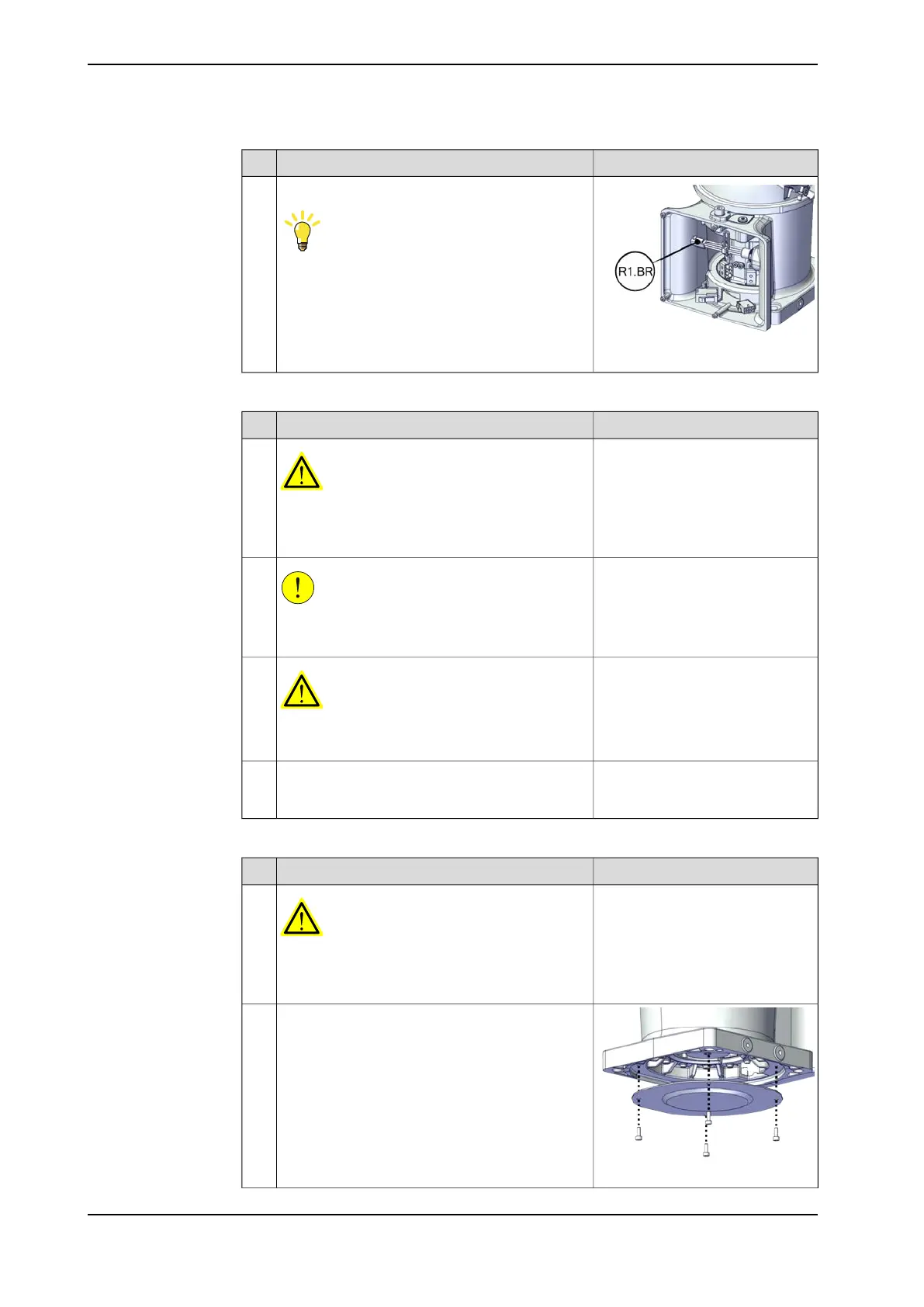

NoteAction
xx2200000078
Disconnect the connector R1.BR.
Tip
Take photos of the connector and cable position
before disconnecting them, to have as a reference
when reconnecting.
2
Putting the robot on its side
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
CAUTION
The IRB 1010 robot weighs 13.5 kg and can be
lifted by one person.
2
WARNING
The robot is likely to be mechanically unstable if
not secured to the foundation.
3
Loosen the robot from the foundation by removing
the foundation attachment screws and put the
robot on its side.
4
Separating the base from the axis-1 assembly unit
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
xx2200000079
Remove the base cover.2
Continues on next page
172 Product manual - IRB 1010
3HAC081964-001 Revision: B
© Copyright 2022 ABB. All rights reserved.
5 Repair
5.4.1 Replacing the base
Continued
