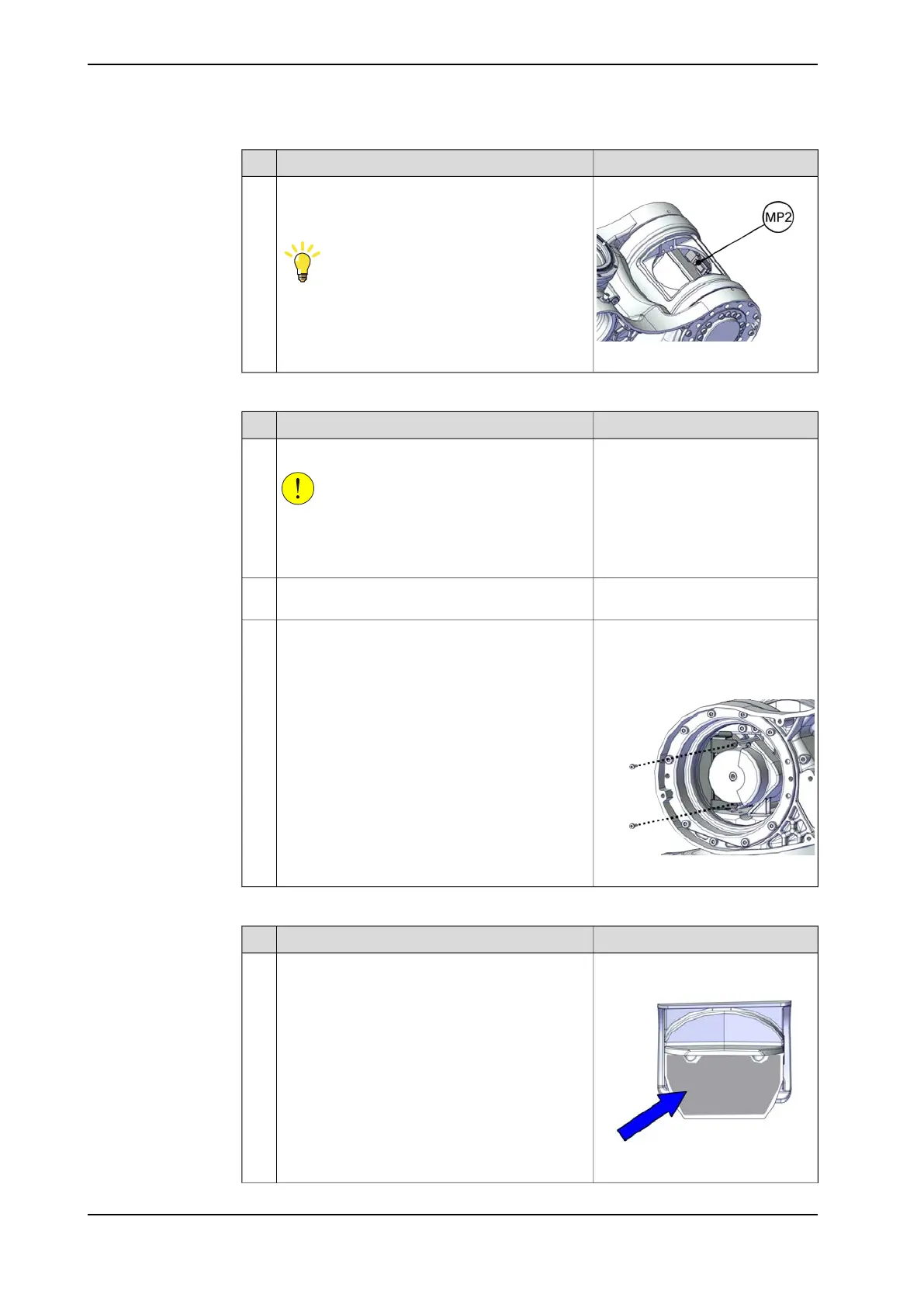

NoteAction
xx2200000541
Access and reconnect the connector from the
swing top.
• MP2
Tip
See the number markings on the connectors for
help to find the corresponding connector.
7
Routing the cable package in axis 2
NoteAction
Route and secure the cabling with cable straps.
CAUTION
Correct cable routing is highly important.
If the cables are routed and secured incorrectly
the cables can be damaged.
1
Grease: 3HAC029132-001Apply grease to the cable package, cover all
moving area of the package.
2
Cable bracket, axis 2:
3HAC080837-001
Refit the axis-2 cable bracket.3
Screw: M2x6 12.9 (2 pcs)
Tightening torque: 0.4 Nm
xx2200000063
Refitting the swing top cover
NoteAction
Cooling pad for axis-2 motor:
3HAC071021-001
Check the cooling pad.
Replace if damaged.
1
xx2200000122
Continues on next page
252 Product manual - IRB 1010
3HAC081964-001 Revision: B
© Copyright 2022 ABB. All rights reserved.
5 Repair
5.5.1 Replacing the axis-2 drive unit
Continued
