NoteAction
Decide which calibration routine to use, and
take actions accordingly prior to beginning
the repair procedure.
1
When removing axis 2 gearbox: Run the
axis 2 to -42° and all other axes to 0° (cal-
ibration position).
2
When removing axis 3 gearbox: Run the
axis 2 to -40°, axis 3 to +15° and all other
axes to 0°.

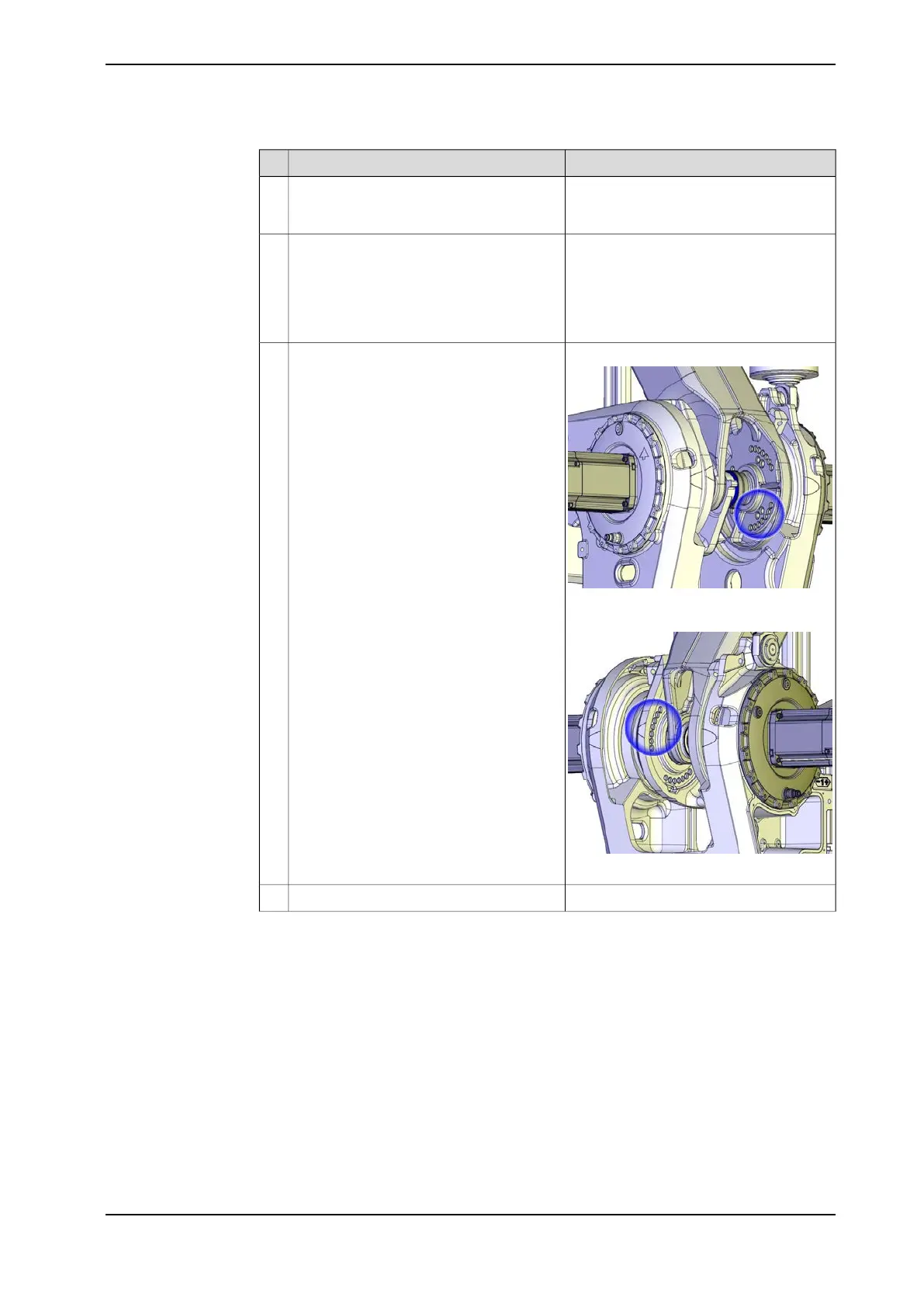

Axis 2:
xx1100000623
When removing axis 2 gearbox: Remove
all screws in the lower screw area on the
inside of the lower arm (7 pcs M12, 2 pcs
M16). See figure.
When removing axis 3 gearbox: Remove
all screws in the upper front screw area and
three screws in the upper back area.
3
Axis 3:
xx1100000624
Run axis 2 to 0°.4
Continues on next page
Product manual - IRB 660 289
3HAC025755-001 Revision: W
