AUTOMATIC CONTROL UNIT, OMD100
4.2.2 Automatic control unit OMD100, DIN-rail mounting
The automatic control unit OMD100 can be mounted on the 35 mm DIN-rail and the door drilling, if
needed, according to Figure 4.3.

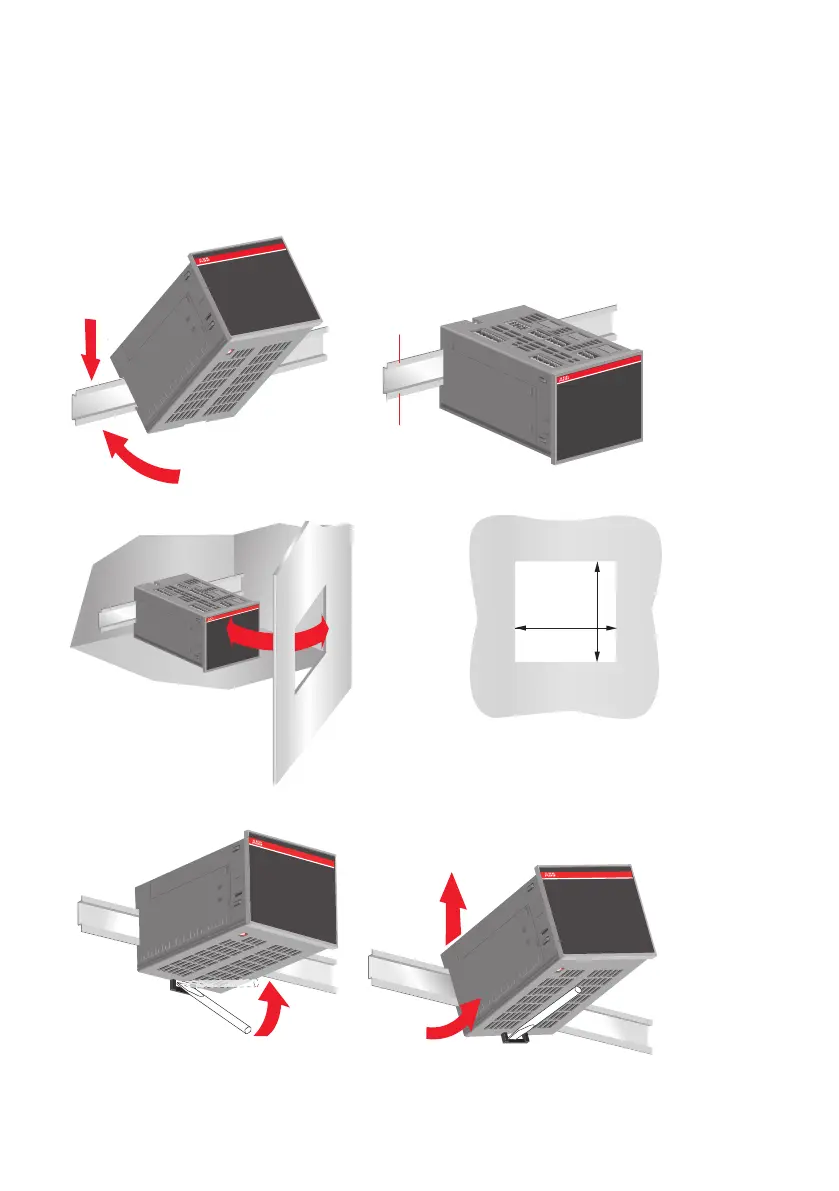

Figure 4.3 Automatic control unit OMD100, DIN-rail mounting
KA00457
3
4
1
35mm
EN 50022
3
2
97
97
KA00458
3
4
Remove
KA00456
3
4
1
2
3
