AUTOMATIC CONTROL UNIT, OMD100
AUTOMATIC CONTROL UNIT, OMD100
—
2. Product overview
The automatic transfer switch concept is applied to any application requiring switching from the
primary power line to secondary power line to ensure the supply of loads.
OMD100 is the basic version of the control unit of automatic switching equipment. It has two
sensors to monitor two three-phase power lines, both able to work with single phase, too. OMD100
can measure voltage, frequency and the phase balance of the primary and secondary power line.
OMD100 is able to command a single motorized change-over switch. The neutral has to be always
connected.

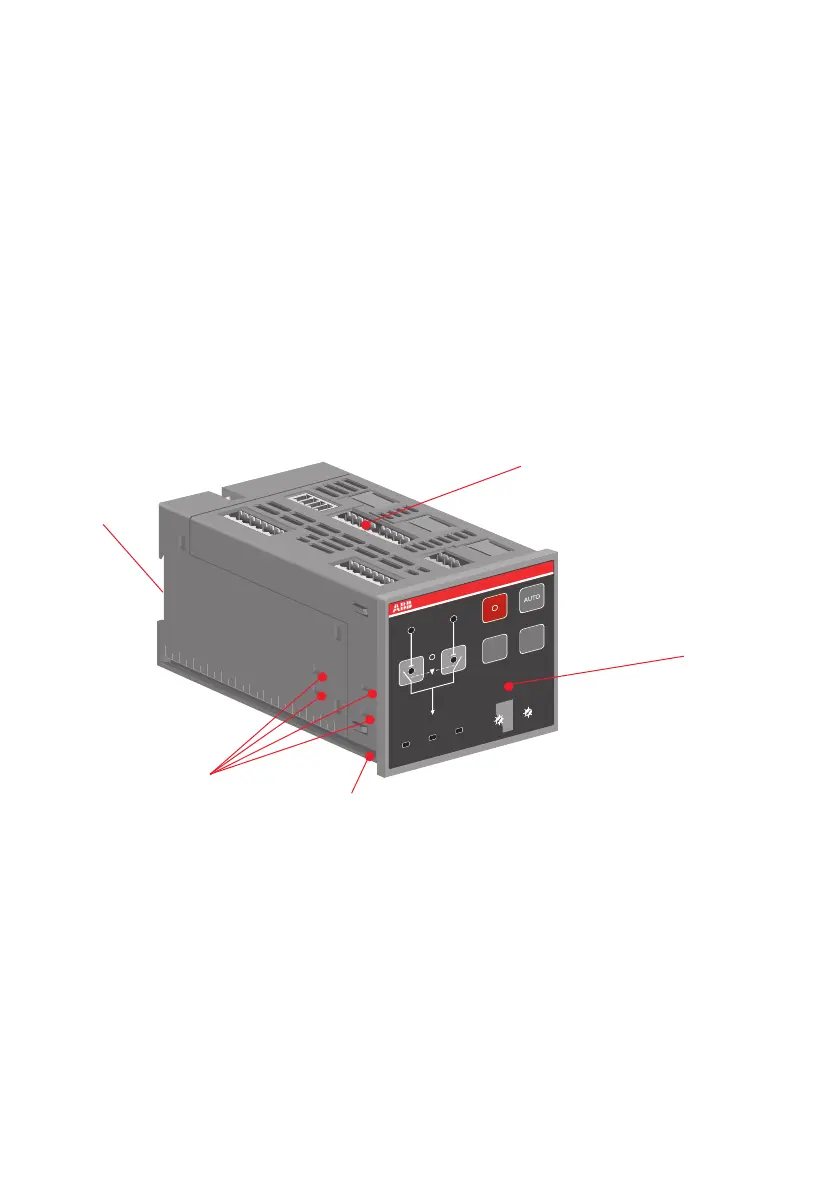

Figure 2.1 Automatic control unit OMD100
1 User interface consists of LEDs, keypad and rotary switches
2 Connectors to connect automatic control unit with application and motorized change-over
switch
3 DIP switches for parameter setting
4 Places for fasteners, used when OMD100 is mounted on the door
5 Place for DIN rail
A07254
I
I
II
II
OMD
OFF
ON ON
20
5
10
15
+
-
%
0s
5
10
30
0s
5
10
30
Ts
Tbs=300s
Tbs=Ts
Lim
SETUP
TEST
LN 1 LN 2
Power
Auto Alarm
5
3
2
1
4
