AUTOMATIC CONTROL UNIT, OMD100
AUTOMATIC CONTROL UNIT, OMD100
—
3. Description
—
3.1 OMD100 switching sequence
3.1.1 Line 1 priority
The switching sequence can be summarized in following steps:
An anomaly occurs on the Line 1
Switching delay
Change-over switch (Switch I) to the position O
Change-over switch (Switch II) to the position II
And the back switching sequence can be summarized in the following steps:
The Line 1 will start the normal functioning
Back switching delay
Change-over switch (Switch II) to the position O
Change-over switch (Switch I) to the position I

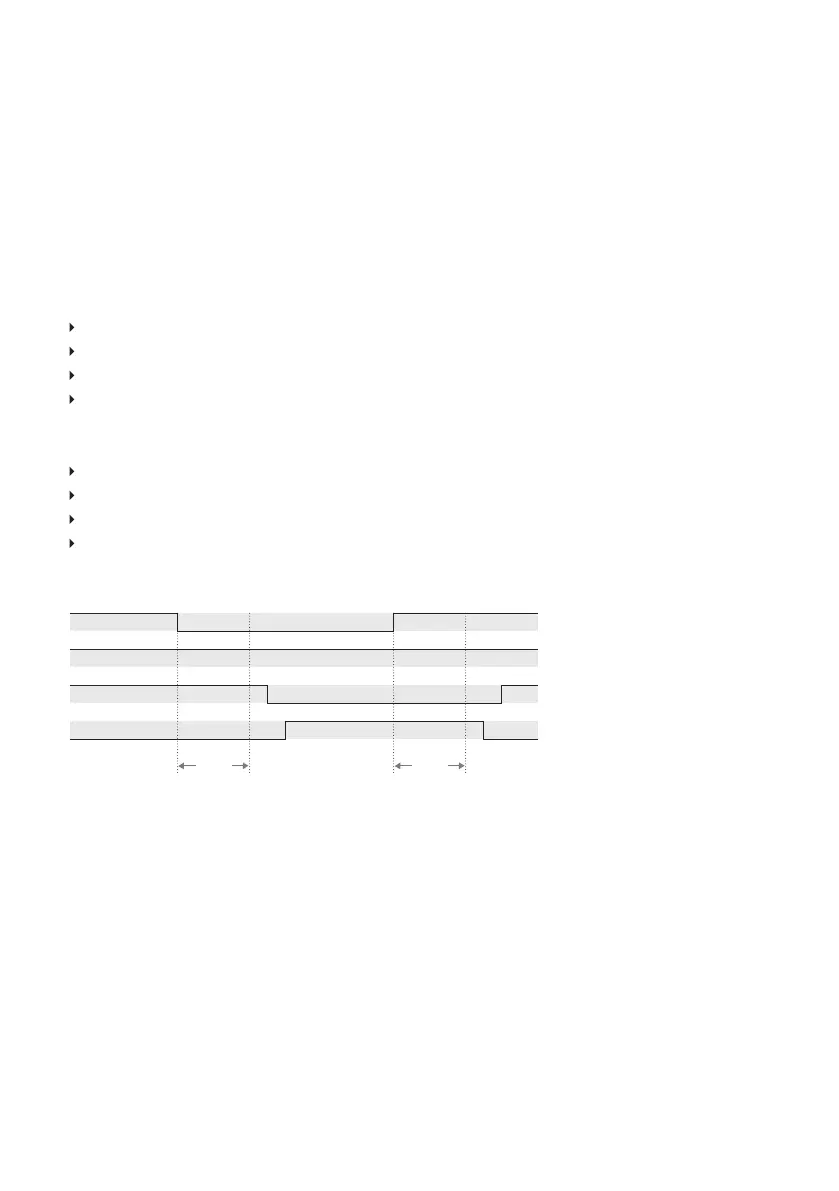

Figure 3.1 Automatic Switching Sequence, Line 1 priority
Ts: Switching delay, Tbs:Back switching delay
LINE 1
LINE 2
Switch I status
A07242
Switch II status
Ts
Tbs
