ABB ProcessMaster User Manual

Device designs
CI/FEX300/FEX500-EN FEX300, FEX500 EN - 11
2 Device designs
Important (Note)
An additional document with Ex safety instructions is available for measuring systems that are
used in explosion hazardous areas. As a result, it is crucial that the specifications and data it
lists are also observed.

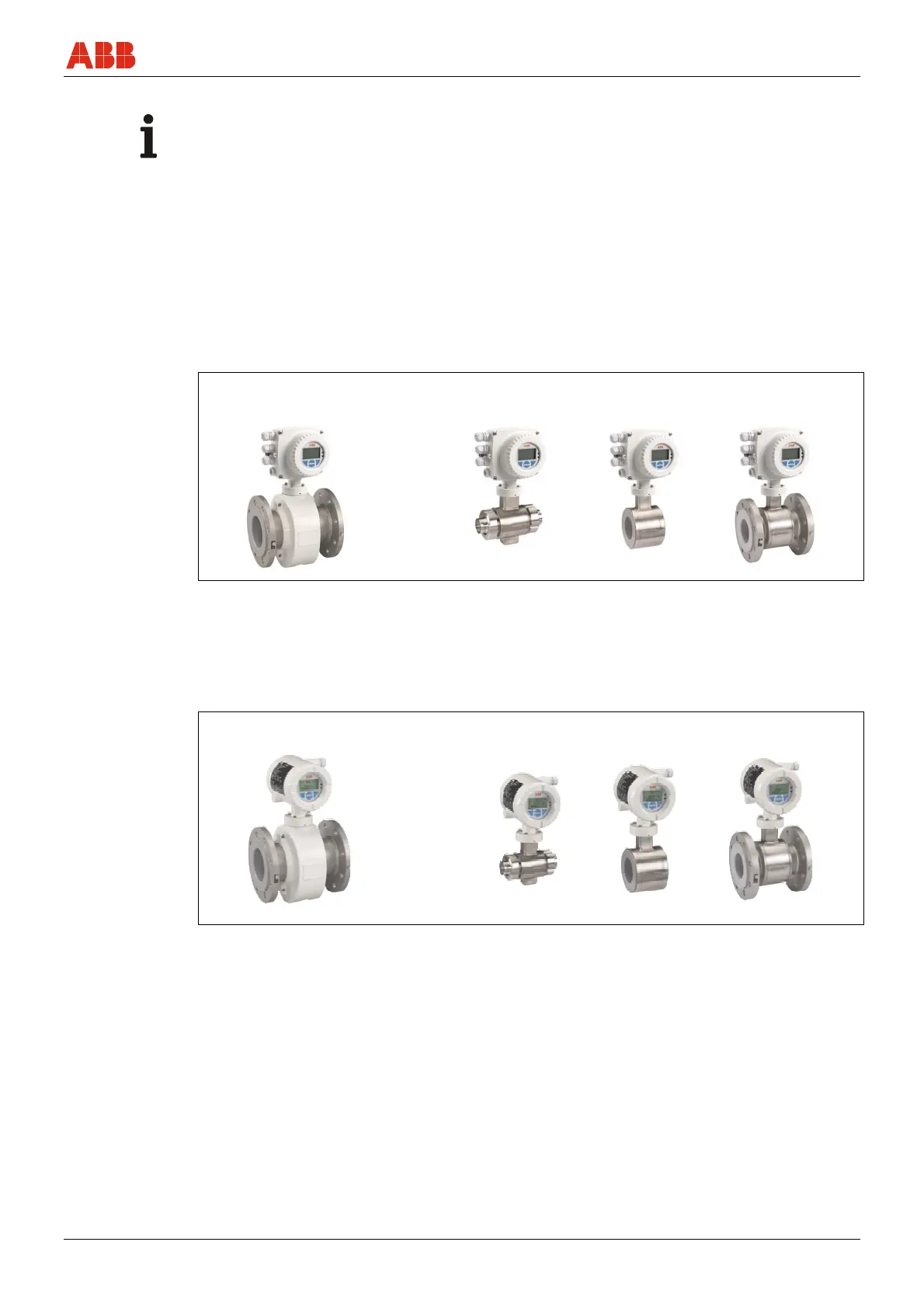

2.1.1 Model with compact design
The transmitter and the flowmeter sensor form a single mechanical entity.
The transmitter is available in two housing designs:
Single-compartment housing:
With the single-compartment housing, the electronics area and the connection area are not
separated from each other.
ProcessMaster HygienicMaster
G01316
Fig. 1: Transmitter with single-compartment housing
Dual-compartment housing:
With the dual-compartment housing, the electronics area and the connection area are
separated from each other.
ProcessMaster HygienicMaster
G00638
Fig. 2: Transmitter with dual-compartment housing

ABB ProcessMaster Specifications

General

Type	Electromagnetic Flowmeter
Liner Material	PTFE, PFA, Polyurethane, Rubber
Electrode Material	Stainless steel, Hastelloy, Tantalum, Titanium, Platinum
Process Connection	Flange, Wafer
Fluid Temperature	-40 to 180 °C (-40 to 356 °F) Depending on liner
Output	4-20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus
Power Supply	100 to 230 V AC, 24 V AC/DC
Protection Class	IP67
Approvals	ATEX, IECEx, FM, CSA
