ABB ProcessMaster User Manual

Device designs
12 - EN FEX300, FEX500 CI/FEX300/FEX500-EN
2.1.2 Model with remount mount design
The transmitter is mounted in a separate location from the flowmeter sensor. The electrical
connection between the transmitter and the sensor is provided by a signal cable.
Without a pre-amplifier, the maximum permissible signal cable length is 50 m (164 ft) with a
minimum conductivity of 5 µS/cm.
With a pre-amplifier, the maximum permissible signal cable length is 200 m (656 ft).
Two terminal box variants are available for the ProcessMaster flowmeter sensor:
• Aluminum terminal box
• Plastic terminal box
The external transmitter is available in two housing designs:
Single-compartment housing:
With the single-compartment housing, the electronics area and the connection area are not
separated from each other.

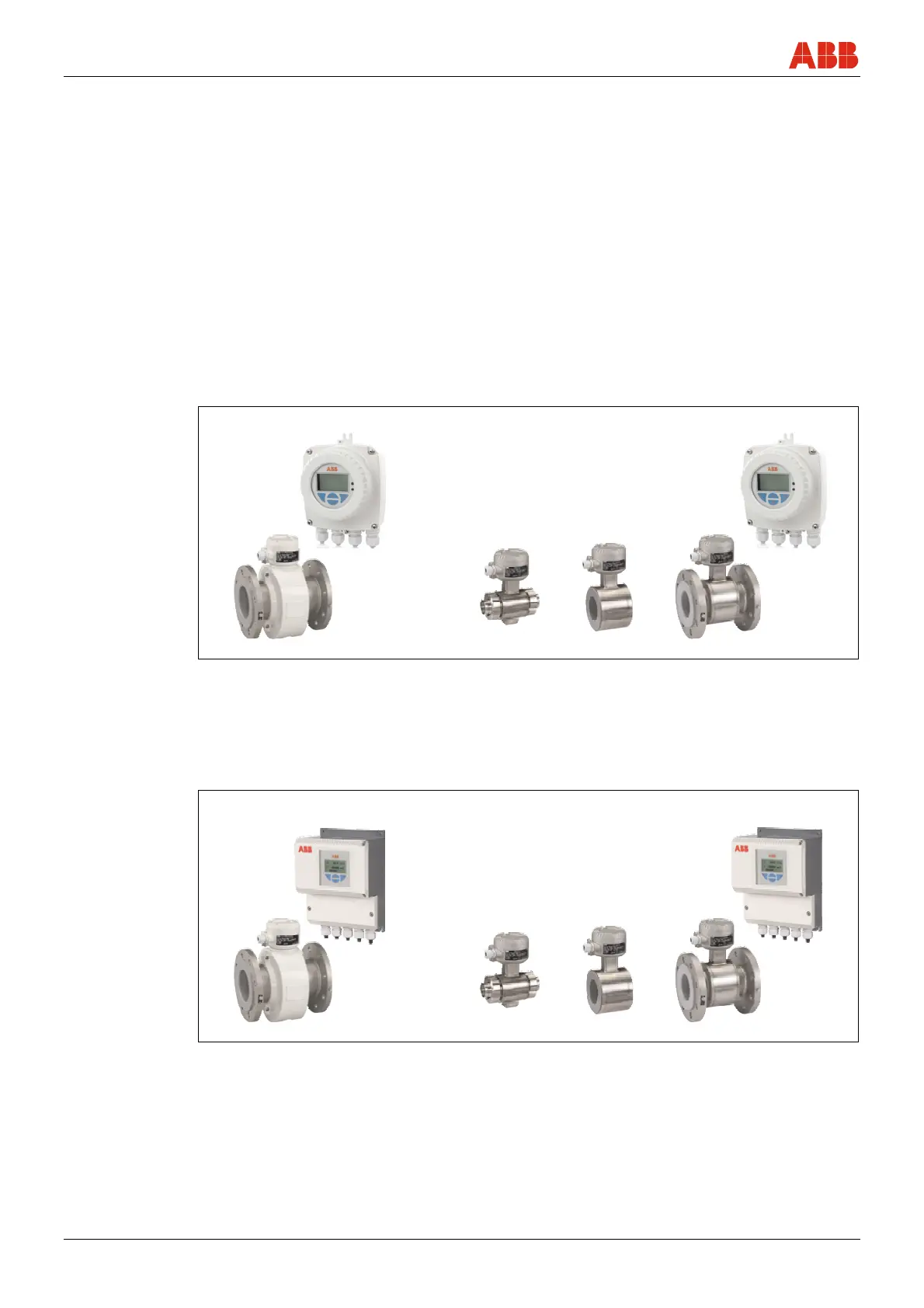

ProcessMaster HygienicMaster
G01317
Fig. 3: Transmitter with single-compartment housing
Dual-compartment housing:
With the dual-compartment housing, the electronics area and the connection area are
separated from each other.
ProcessMaster HygienicMaster
G00639
Fig. 4 : Transmitter with dual-compartment housing

ABB ProcessMaster Specifications

General

Type	Electromagnetic Flowmeter
Liner Material	PTFE, PFA, Polyurethane, Rubber
Electrode Material	Stainless steel, Hastelloy, Tantalum, Titanium, Platinum
Process Connection	Flange, Wafer
Fluid Temperature	-40 to 180 °C (-40 to 356 °F) Depending on liner
Output	4-20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus
Power Supply	100 to 230 V AC, 24 V AC/DC
Protection Class	IP67
Approvals	ATEX, IECEx, FM, CSA
