ABB ProcessMaster User Manual

Electrical connections
34 - EN FEX300, FEX500 CI/FEX300/FEX500-EN
5.4.2 Transmitter with dual-compartment housing

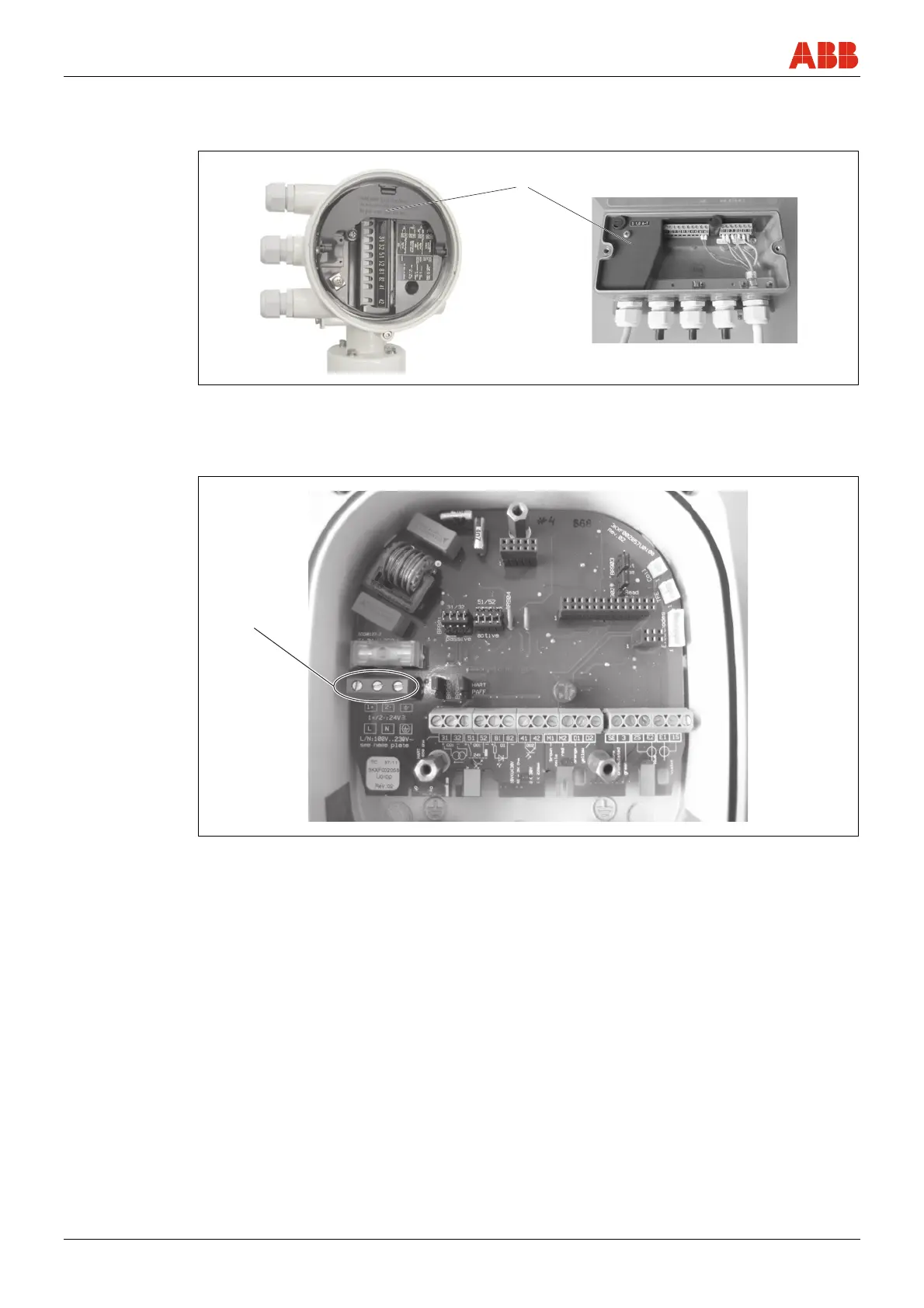

The terminals for the supply power can be found under the terminal cover (1).
G00678
1
Fig. 30
1 Terminal cover
5.4.3 Transmitter with single-compartment housing
G01320
1
Fig. 31
1 Terminals (power supply)

ABB ProcessMaster Specifications

General

Type	Electromagnetic Flowmeter
Liner Material	PTFE, PFA, Polyurethane, Rubber
Electrode Material	Stainless steel, Hastelloy, Tantalum, Titanium, Platinum
Process Connection	Flange, Wafer
Fluid Temperature	-40 to 180 °C (-40 to 356 °F) Depending on liner
Output	4-20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus
Power Supply	100 to 230 V AC, 24 V AC/DC
Protection Class	IP67
Approvals	ATEX, IECEx, FM, CSA
