ABB ProcessMaster User Manual

Commissioning
46 - EN FEX300, FEX500 CI/FEX300/FEX500-EN
6.2.1 Menu navigation
2
-----------------Menu----------------
3
4
5
Exit Select
5
G00822-01
1

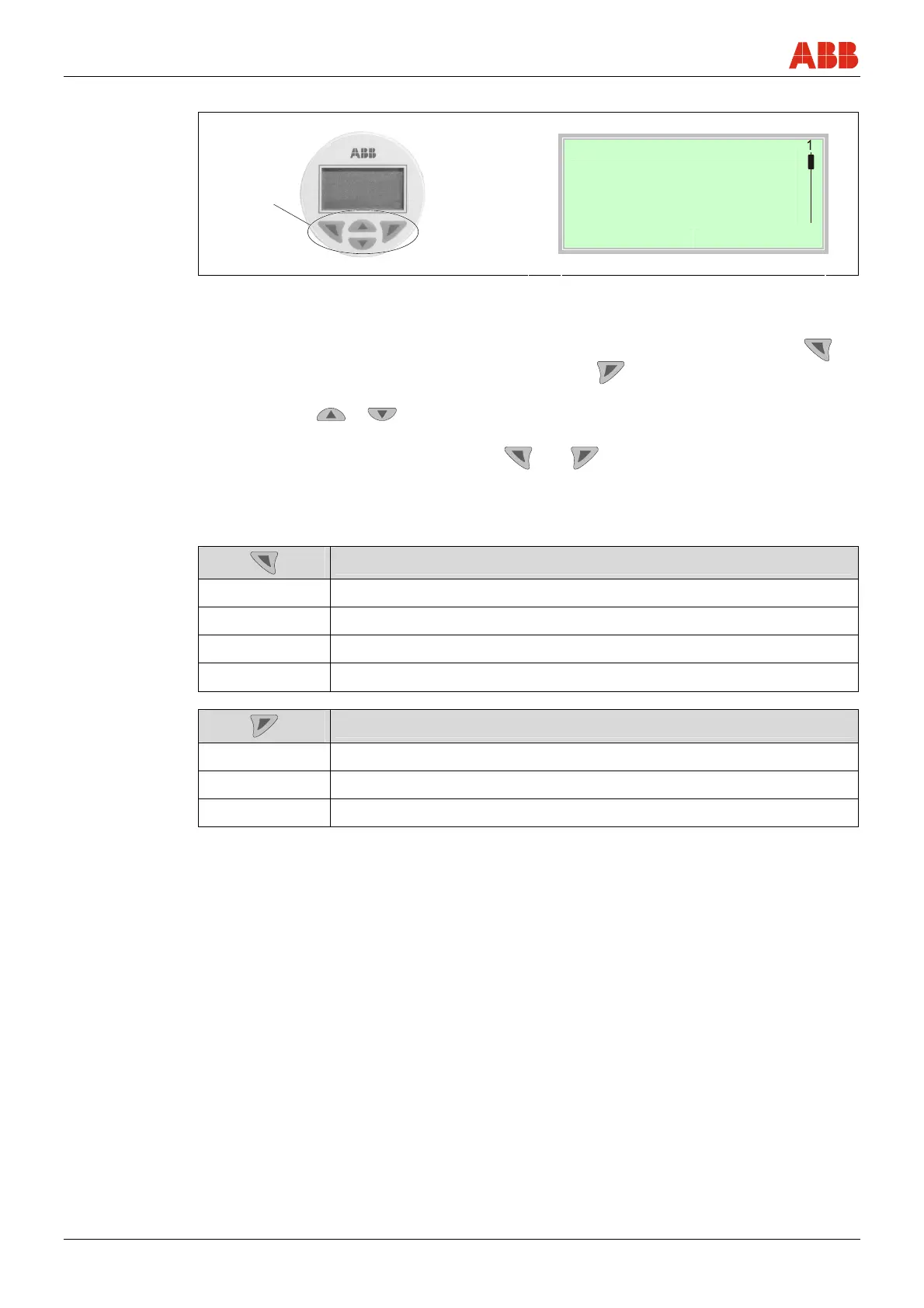

Fig. 47: LCD-indicator
1 Control buttons for menu navigation
2 Menu name
3 Menu number
4 Marker for indicating relative position
within the menu
5 Function currently assigned to the
and
control buttons
You can use the
or control buttons to browse through the menu or select a number or
character within a parameter value.
Different functions can be assigned to the
and control buttons. The function that is
currently assigned to them (5) is shown on the display.
6.2.1.1 Control button functions
Meaning
Exit
Exit menu
Back
Go back one submenu
Cancel
Cancel a parameter entry
Next
Select the next position for entering numerical and alphanumeric values
Meaning
Select
Select submenu / parameter
Edit
Edit parameter
OK
Save parameter entered

ABB ProcessMaster Specifications

General

Type	Electromagnetic Flowmeter
Liner Material	PTFE, PFA, Polyurethane, Rubber
Electrode Material	Stainless steel, Hastelloy, Tantalum, Titanium, Platinum
Process Connection	Flange, Wafer
Fluid Temperature	-40 to 180 °C (-40 to 356 °F) Depending on liner
Output	4-20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus
Power Supply	100 to 230 V AC, 24 V AC/DC
Protection Class	IP67
Approvals	ATEX, IECEx, FM, CSA
