2
A
GUID-31DF5495-91F1-4A4B-8FD5-50625038961E V1 EN

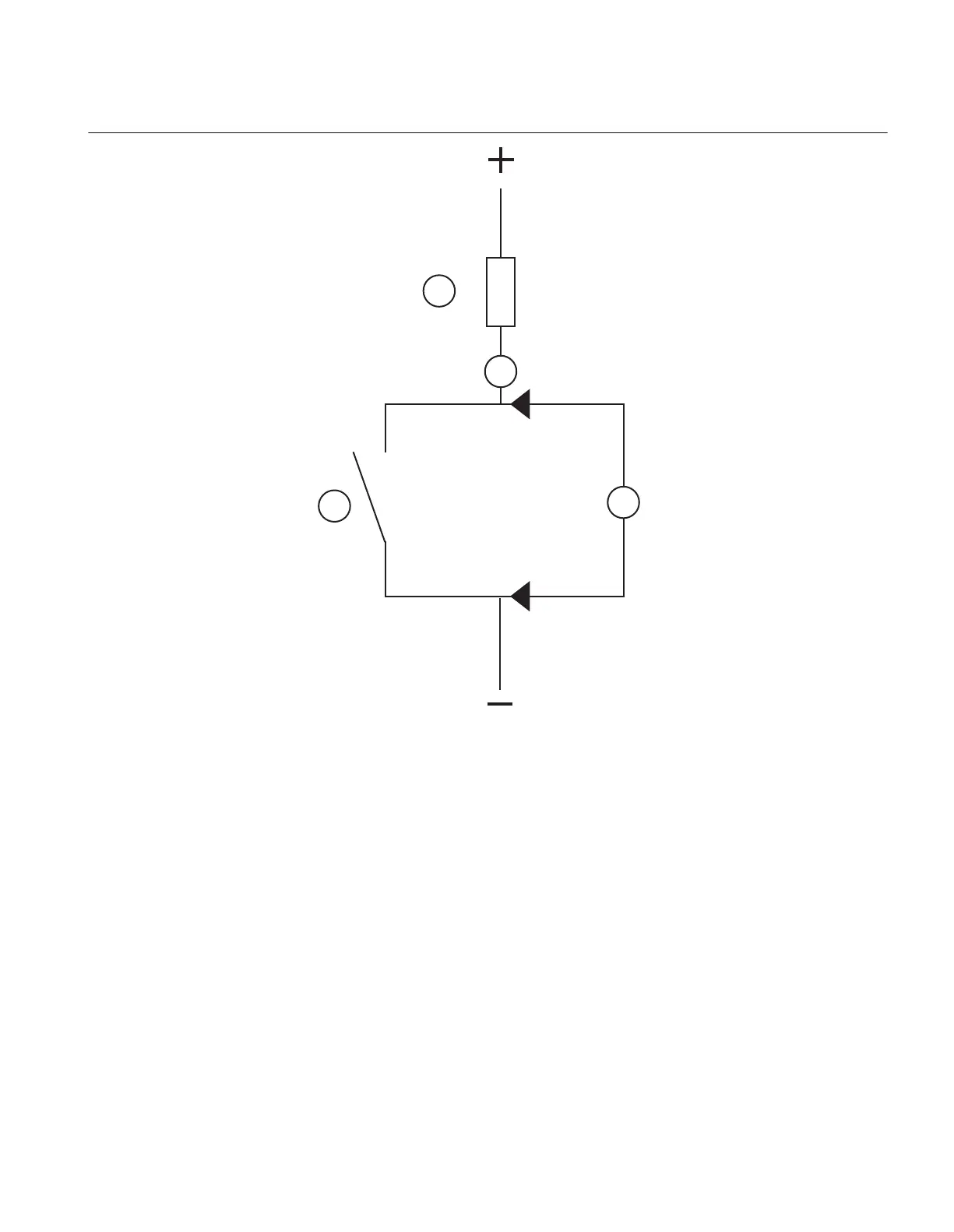

Figure 20:
Testing a trip contact
1
Trip contact under test
2
Current limiting resistor
•
To
check
the
status
of
the
output
circuits
driving
the
output
relay
via
the
LHMI,
select
Main
menu/Tests/I/O
modules
and
then
navigate
to
the
board
with
the
actual
binary
output to be checked.
•
Test and change the relay state manually.
1MRK 505 293-UUS A
Section 8
Troubleshooting
131
Commissioning manual
138
140
