2.3.3
Line
bay
in
a
high
impedance
earthed
network,
connected
to
single busbar switchyard

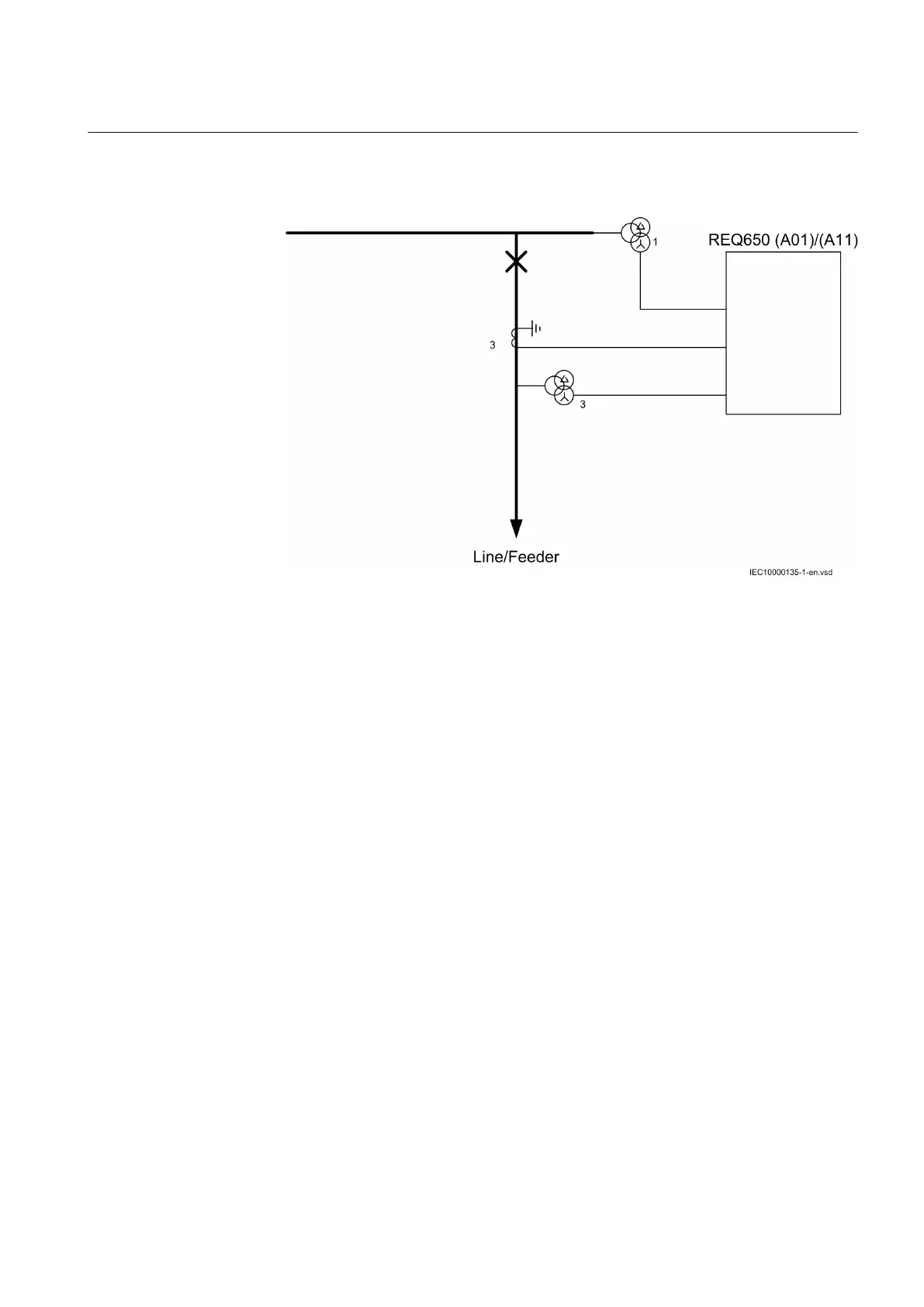

IEC10000135 V1 EN
Figure 6:
Line bay in a high impedance earthed network
REQ650
has
a
number
of
back-up
protection
functions.
In
addition
to
this,
three-phase
trip and autoreclosing is available for REQ650 A01 and single-phase trip and
autoreclosing is available for REQ650 A11.
