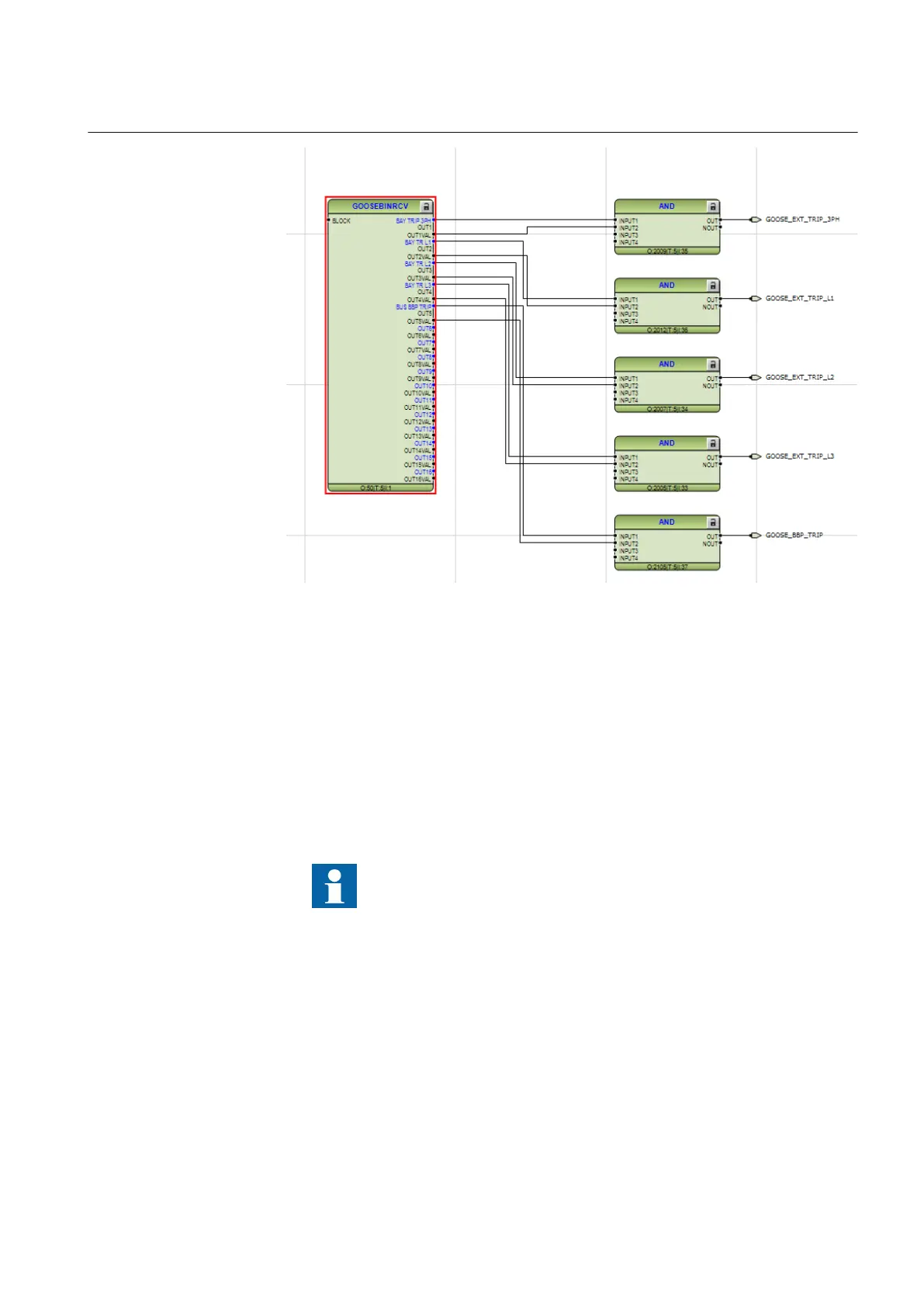

Figure 113: SMT: GOOSE receive function block with converted signals
14.1.3 Setting guidelines
There are two settings related to the IEC 61850–8–1 protocol:
Operation User can set IEC 61850 communication to On or Off.
GOOSE has to be set to the Ethernet link where GOOSE traffic shall be send and
received.
IEC 61850–8–1 specific data (logical nodes etc.) per included
function in an IED can be found in the communication protocol
manual for IEC 61850–8–1.
14.2 DNP3 protocol
DNP3 (Distributed Network Protocol) is a set of communications protocols used to
communicate data between components in process automation systems. For a detailed
description of the DNP3 protocol, see the DNP3 Communication protocol manual.
