IEC11000247 V2 EN

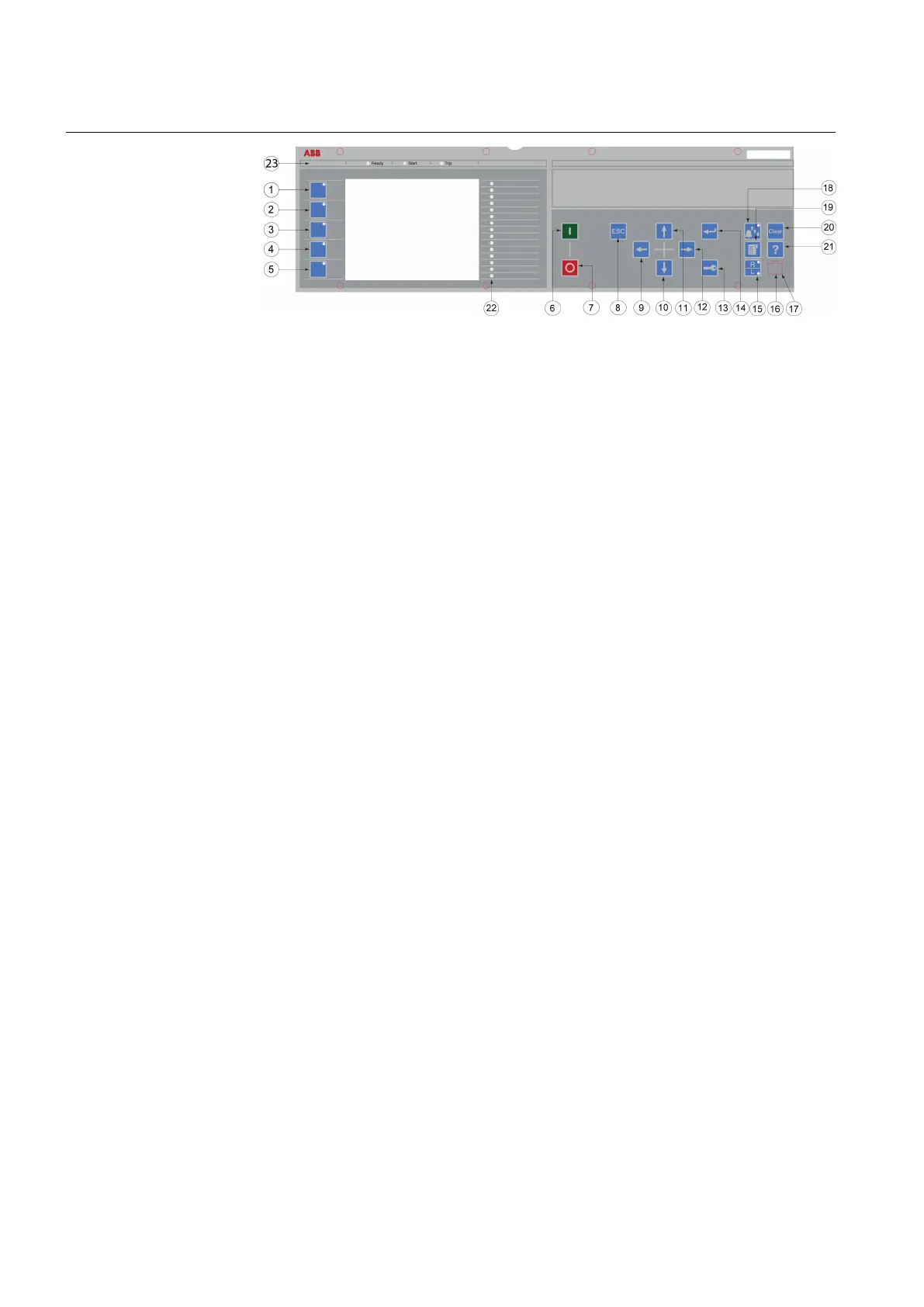

Figure 36: LHMI keypad with object control, navigation and command push-
buttons and RJ-45 communication port
1...5 Function button
6 Close
7 Open
8 Escape
9 Left
10 Down
11 Up
12 Right
13 User Log on
14 Enter
15 Remote/Local
16 Uplink LED
17 Ethernet communication port (RJ-45)
18 Multipage
19 Menu
20 Clear
21 Help
22 Programmable alarm LEDs
23 Protection status LEDs
5.1.4 Local HMI functionality
5.1.4.1 Protection and alarm indication
Protection indicators
The protection indicator LEDs are Ready, Start and Trip.
Section 5 1MRK 505 291-UEN A
Local human-machine interface
80
Application manual
