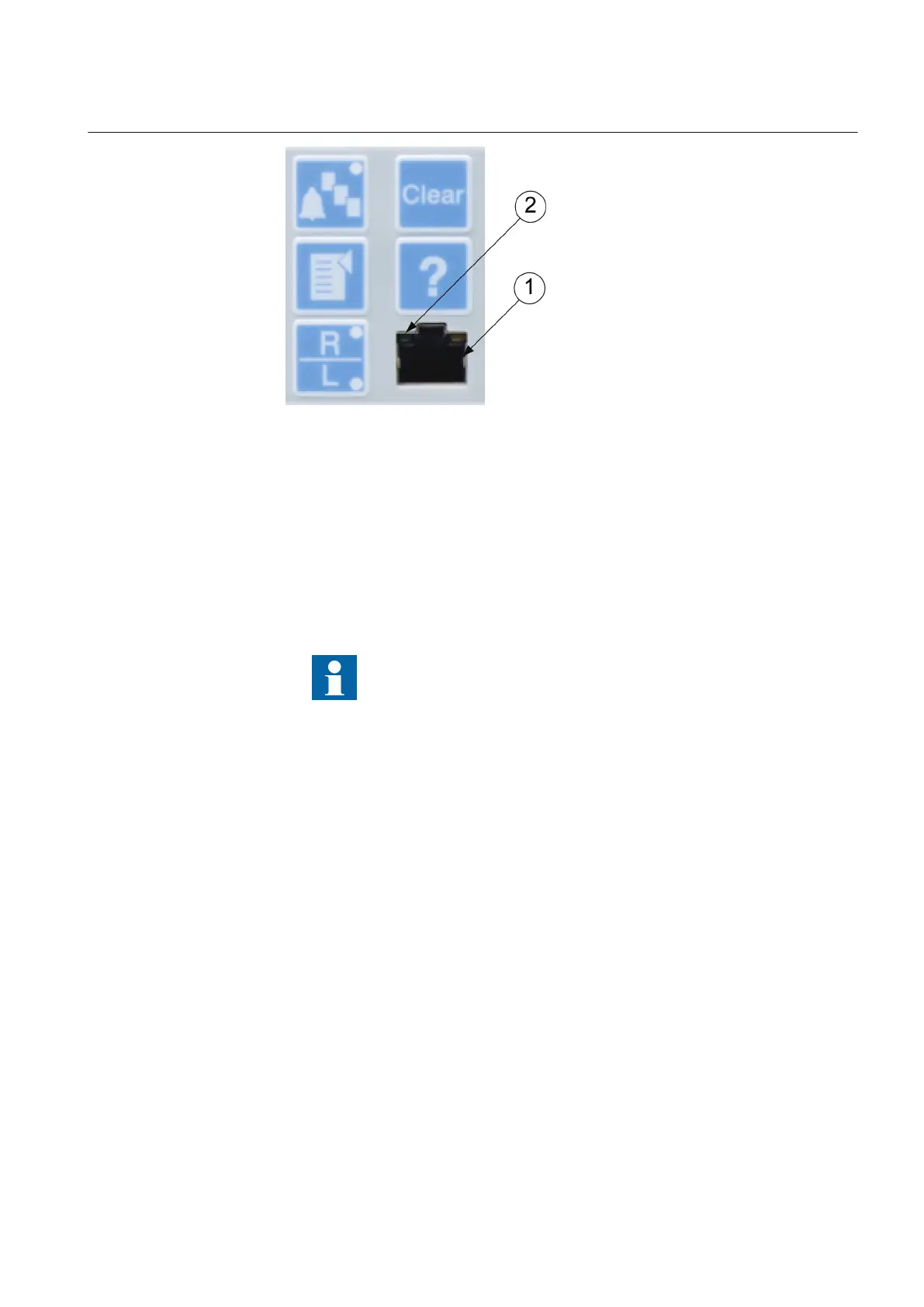

Figure 37: RJ-45 communication port and green indicator LED
1 RJ-45 connector
2 Green indicator LED
When a computer is connected to the IED front port with a crossed-over cable, the
IED's DHCP server for the front interface assigns an IP address to the computer if
DHCPServer = On. The default IP address for the front port is 10.1.150.3.
Do not connect the IED front port to a LAN. Connect only a single
local PC with PCM600 to the front port.
1MRK 505 291-UEN A Section 5
Local human-machine interface
83
Application manual
