ABB Terra 360 CE - Wiring Diagram for the Tilt Sensors

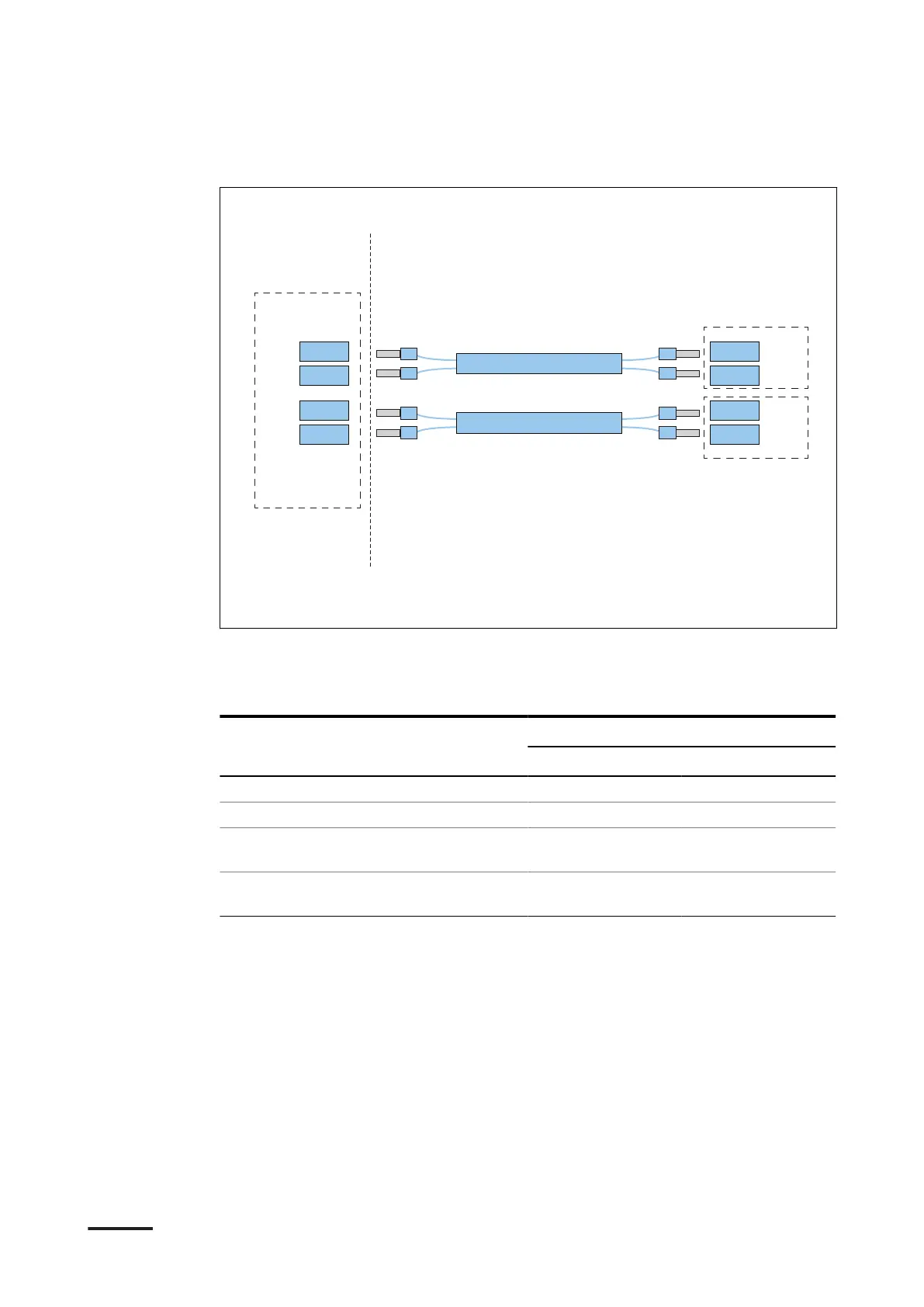

10.9.3 Wiring diagram for the tilt sensors
V+
GND
NC
COM
24 Vdc
0 Vdc
NC
COM
E
A
C
D
B
B
A EVSE
B Twisted wire
C External power supply
D Upstream breaker in the power
distribution board
E Scope of supply by the
manufacturer
Parameter Specification
Signal description TB label
White cable 24 V DC V
+
Yellow cable 0 V DC GND
Grey cable Tilt switch NC con-
tact
NC
Blue cable Tilt switch COM
contact
COM
Technical data
100 9AKK108467A6398-EN | 002
