ABB Terra 360 CE - Move the Packaged Cabinet with a Forklift Truck

Warning:
Risk of pinching or crushing, the cabinet is heavy
• Make sure that the hoisting equipment can lift the cabinet safely.
• Obey the safety instructions that apply to the hoisting equipment.
• Take into account the dimensions, the mass and the center of gravity
of the EVSE. Refer to section 10.11.
Caution:
• Do not drop the cabinet.
• Do not tilt the cabinet more than allowed. Refer to section 10.9.1.
• Make sure there are no dynamic forces on the lifting points.
Procedure

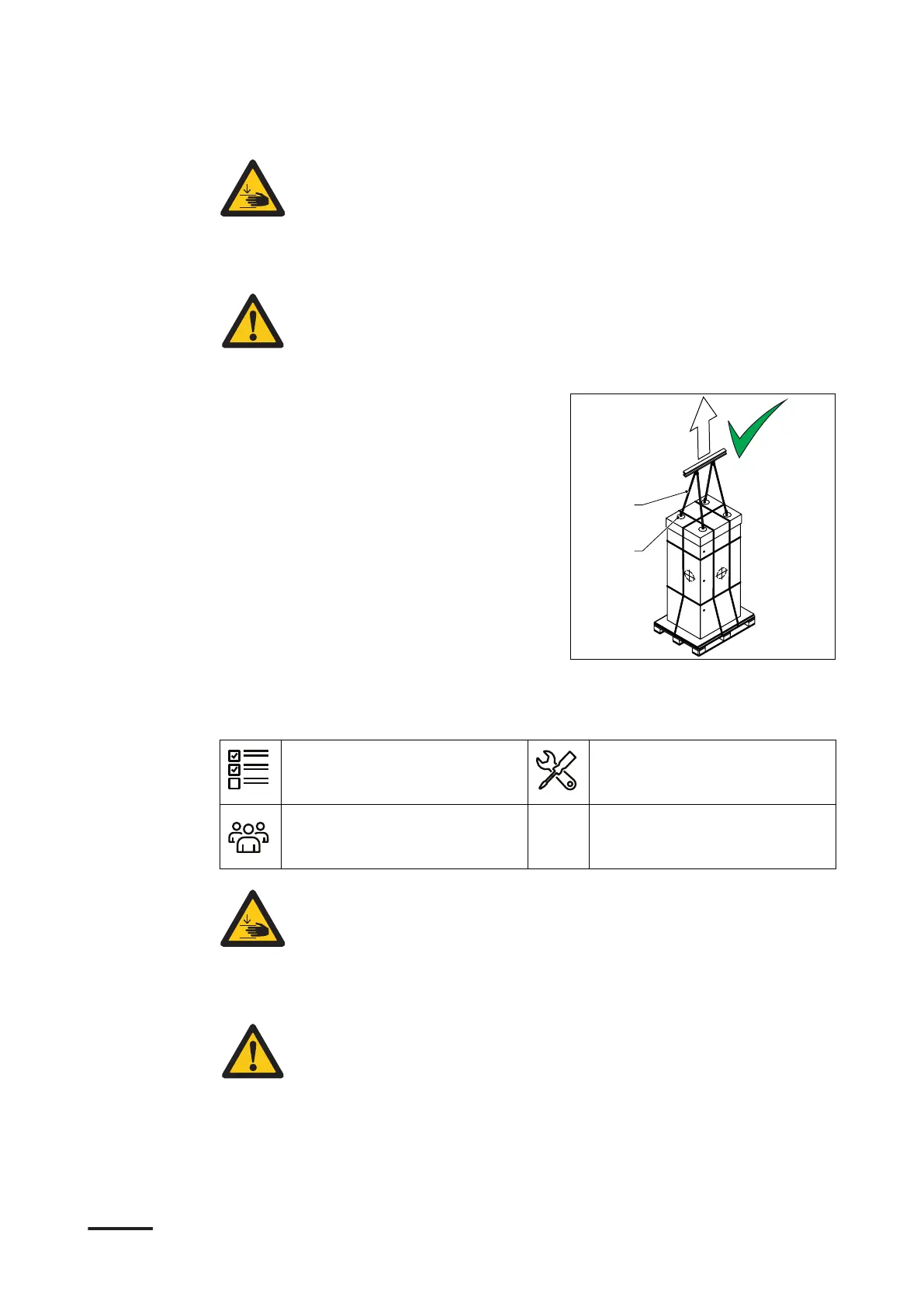

1. Connect the ropes or chain (A) of the
hoisting equipment to the eye bolts
(B).
On the top side of the box 4 holes
are present, to connect the ropes or
chains.
2. Move the cabinet to the correct
location.
4.1.2 Move the packaged cabinet with a forklift truck
Preliminary requirements
• The cabinet is packed.
• Forklift truck
• Installation engineer
Warning:
Risk of pinching or crushing, the cabinet is heavy
• Make sure that the forklift truck can lift the cabinet safely.
• Obey the safety instructions that apply to the forklift truck.
• Take into account the mass, the dimensions and the center of gravity
of the EVSE. Refer to chapter 10.11.4.
Caution:
• Do not drop the cabinet.
• Do not tilt the cabinet more than allowed. Refer to section 10.11.4.
A
B
Transport, handling and unpacking
54 9AKK108467A6398-EN | 002
