ABB Terra 360 CE - Overview of the Terra 60, Air Inlet;Outlet and Filter Locations

Part Function
Fuse, CT and Surge Protection for DC
Outlet 1 & 2
To provide current readings and surge
protection
DC outlet 1 and 2 To provide DC output power
AC relay To connect or disconnect a power mod-
ules group (from 1 to 4)

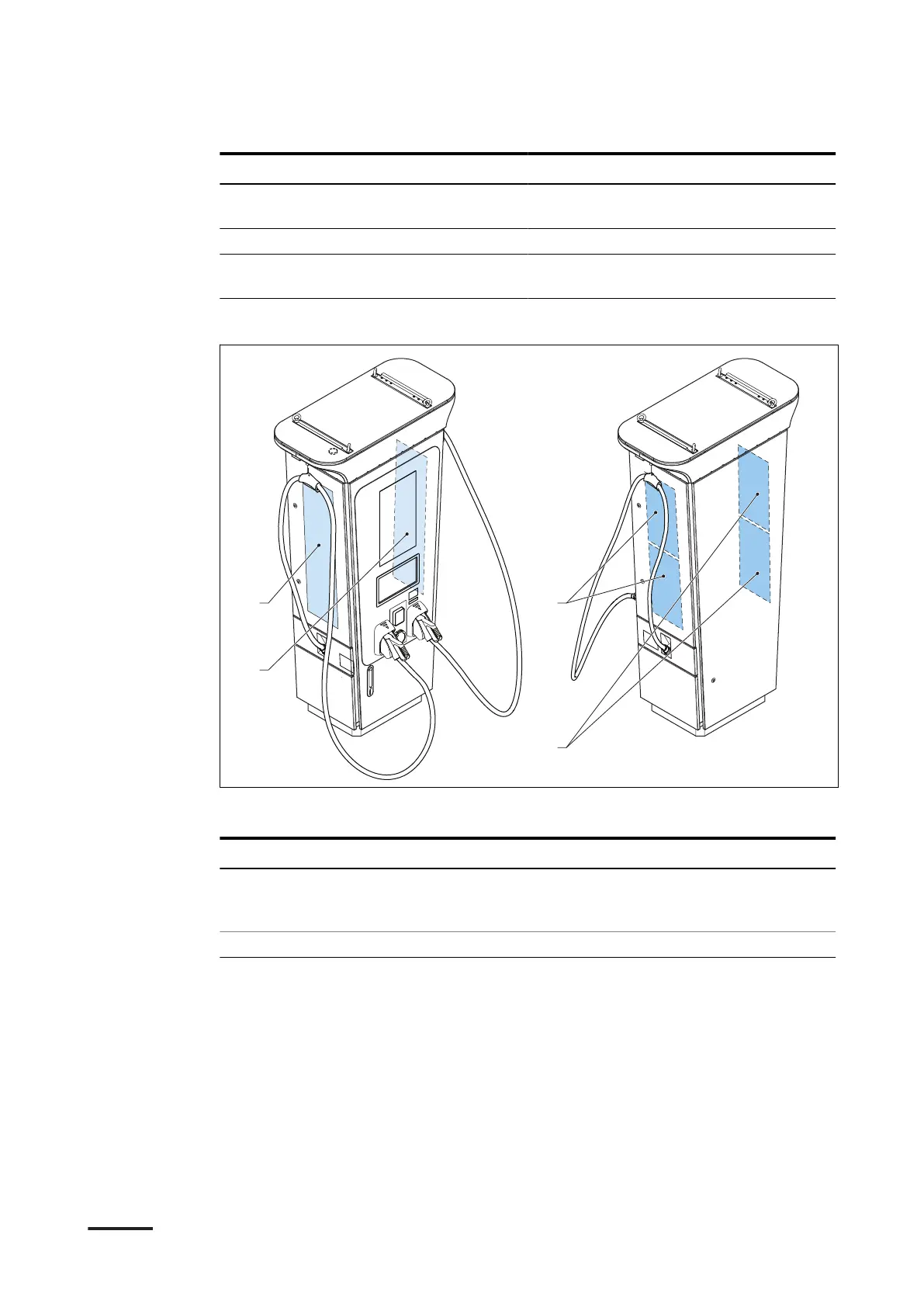

3.4.4 Overview of the Terra 60, air inlet/outlet and filter locations
B
A
D
C
A Air inlet
B Air outlet
C Air outlet filter
D Air inlet filter
Part Function
Air inlet and outlet To let cooling air in and out. The airflow makes sure
that the parts on the inside of the EVSE do not become
too hot
Air inlet and outlet filter To filter the air that comes in and out the EVSE
Description
9AKK108467A6398-EN | 002 33
