8 Access to parts

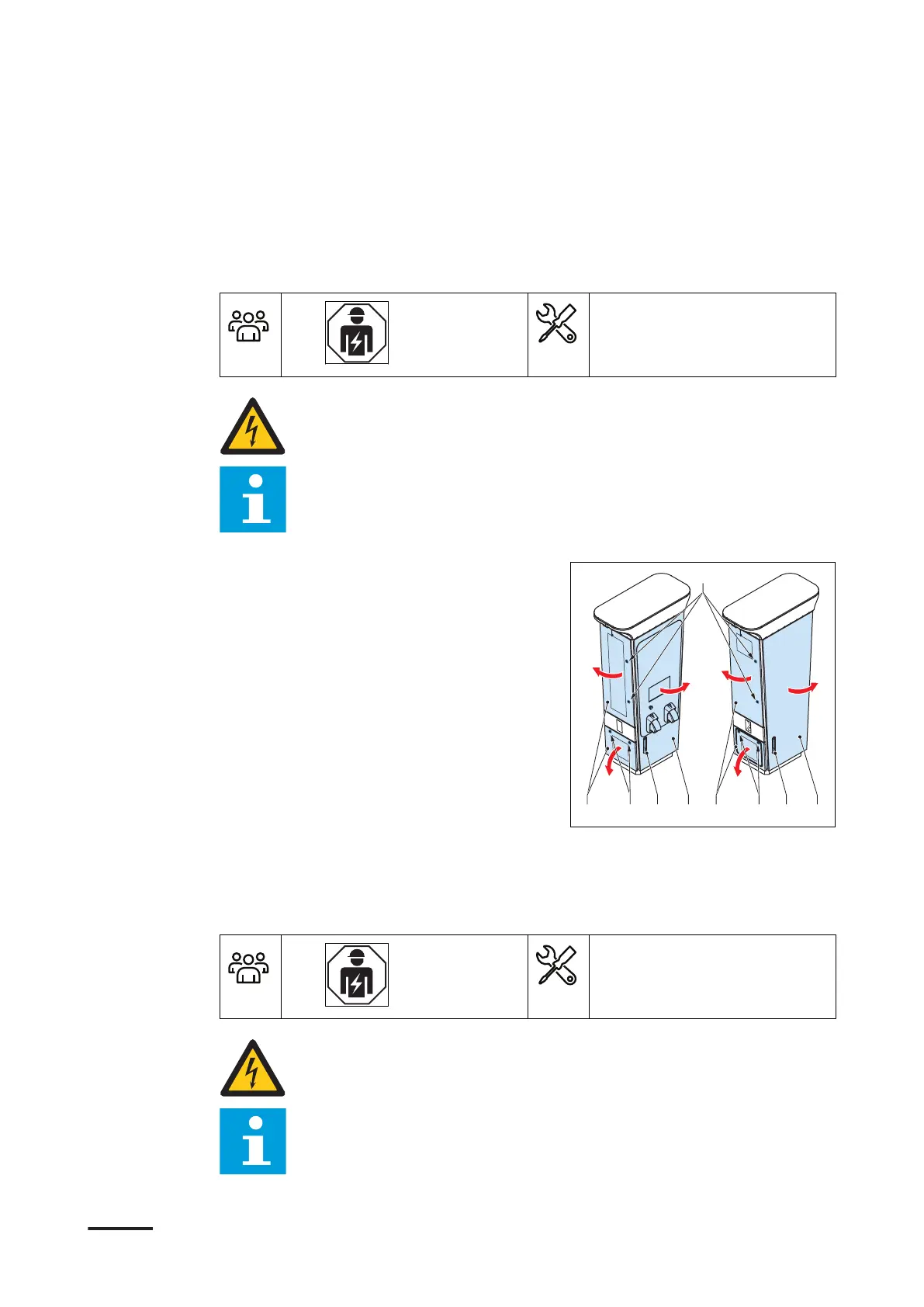

8.1 Open the doors
Preliminary requirements
• • Door key
Danger:
Hazardous voltage
• Make sure that only qualified persons have access to the door key.
Note: There is one unique door key for each cabinet.
Procedure
1. Open the front door (A):
a. Unlock the lock (B) of the front
door. Use the door key.
b. Open the door.
2. Open the left or right door panels (C):
a. Turn the latches (D).
b. Open the door panel.
3. Open the rear door (E):
a. Unlock the lock of the rear door
(F). Use the door key.
b. Open the door.
8.2 Close the doors
Preliminary requirements
•
• Door key
Danger:
Hazardous voltage
• Make sure that only qualified persons have access to the door key.
Note: There is one unique door key for each cabinet.
C F EC AD B
D
D
