5.7.7 Connect the Ethernet cable (Terra 360)
Preliminary requirements
• The front door is open. •
Installation engineer
Procedure

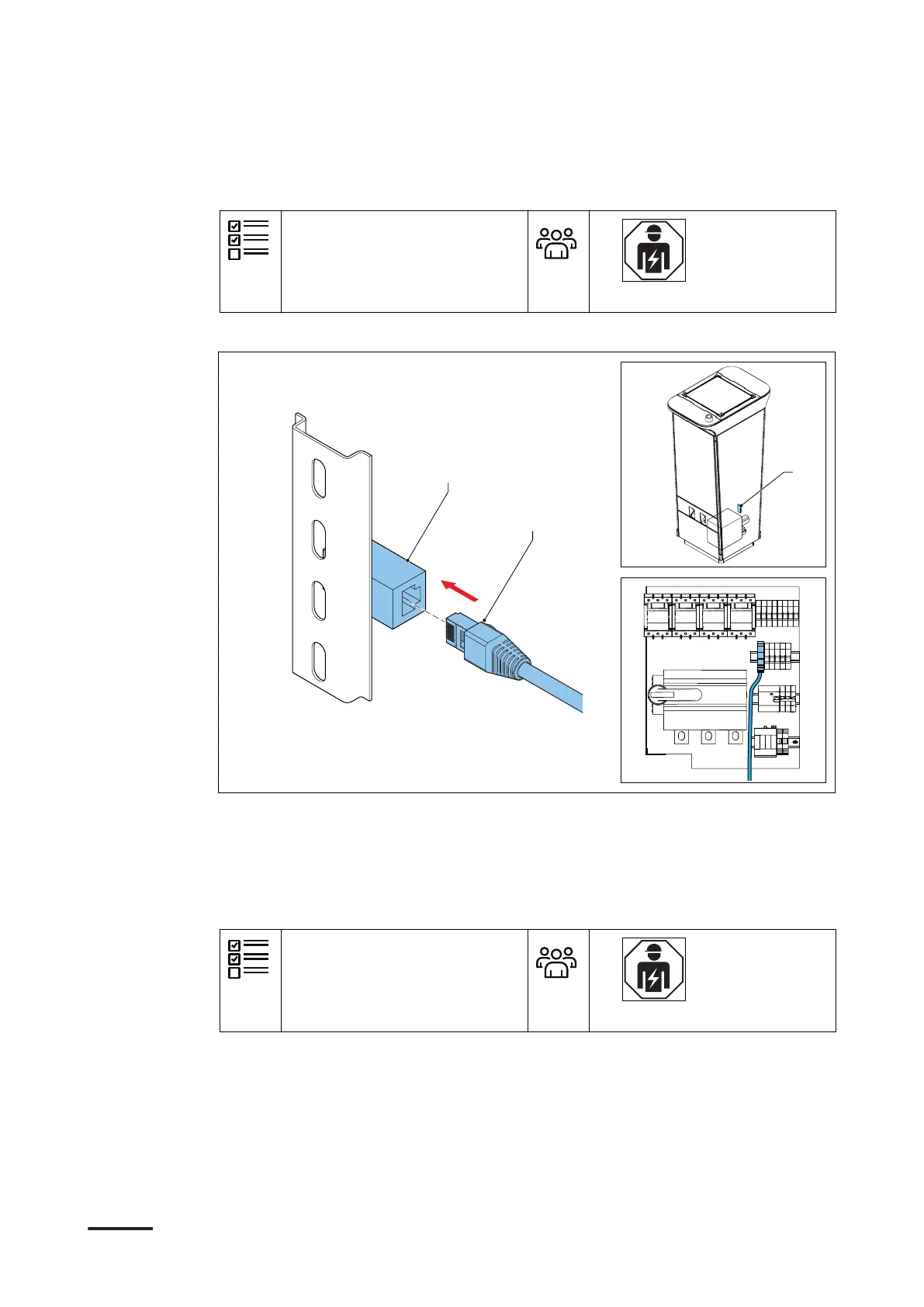

1. Connect the Ethernet connector (A) to the Ethernet cable (B).
The Ethernet cable connection is in location (C) inside the EVSE.
5.7.8 Connect the Ethernet cable (Terra 180)
Preliminary requirements
• The front door is open.
•
Installation engineer
C
B
A
