Operation Manual / TPL76-C
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018

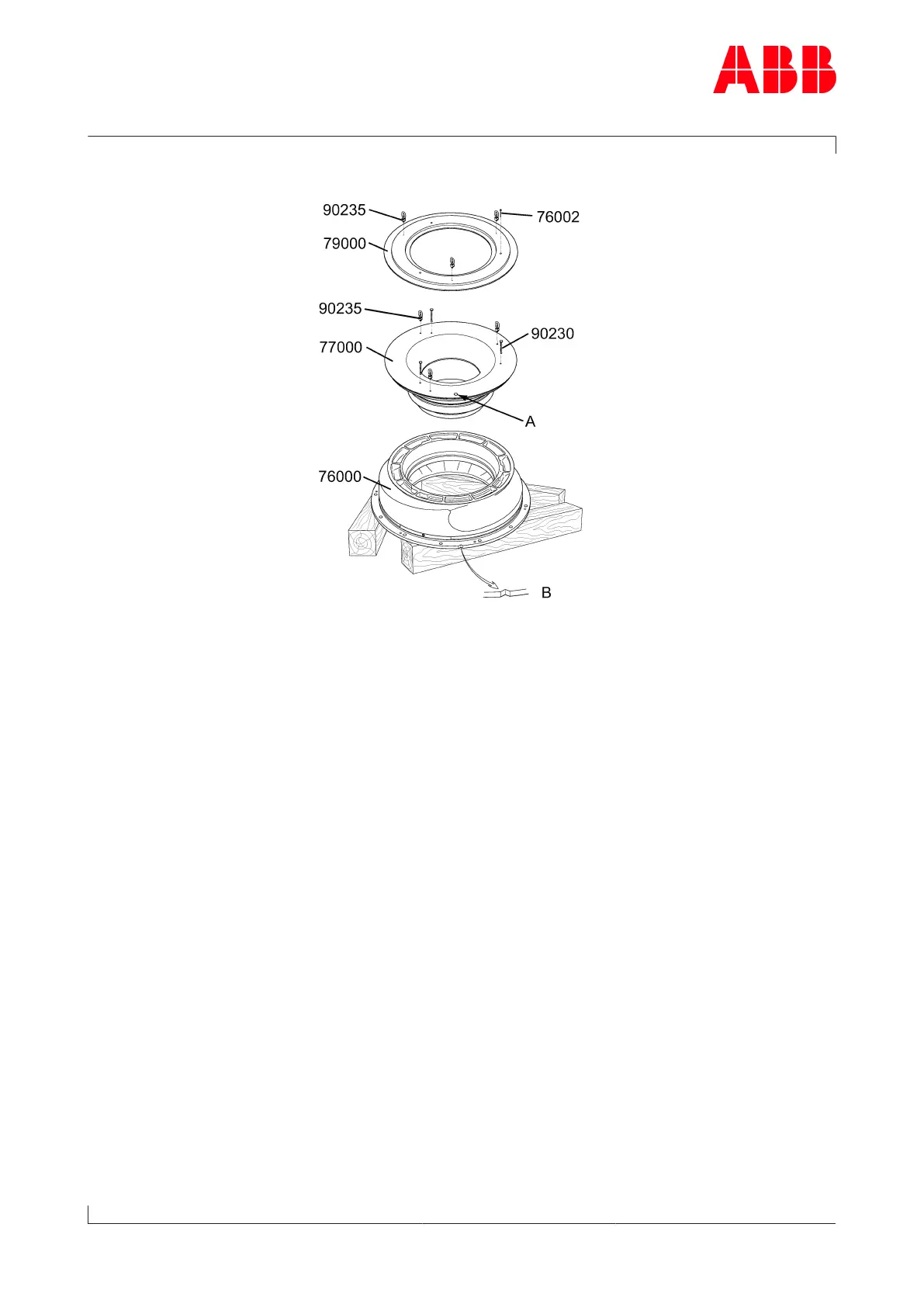

Fitting diffuser and wall insert
u Screw swivel lifting eyes (90235) into holes in wall insert (77000).
u Align mark (A) with notch (B).
u Fit centering screws (90230) in such a way that spigots on centering
screws protrude maximum 5 mm.
u Lower wall insert and align centering screws (90230) with threaded
holes.
u Remove swivel lifting eyes (90235) and centering screws (90230).
u Put the diffuser (79000) in place using the swivel lifting eyes (90235).
u Remove the swivel lifting eyes (90235).
u Fit screws (76002).
Page 102 / 133
