8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018
Turning / transporting internal part of compressor casing

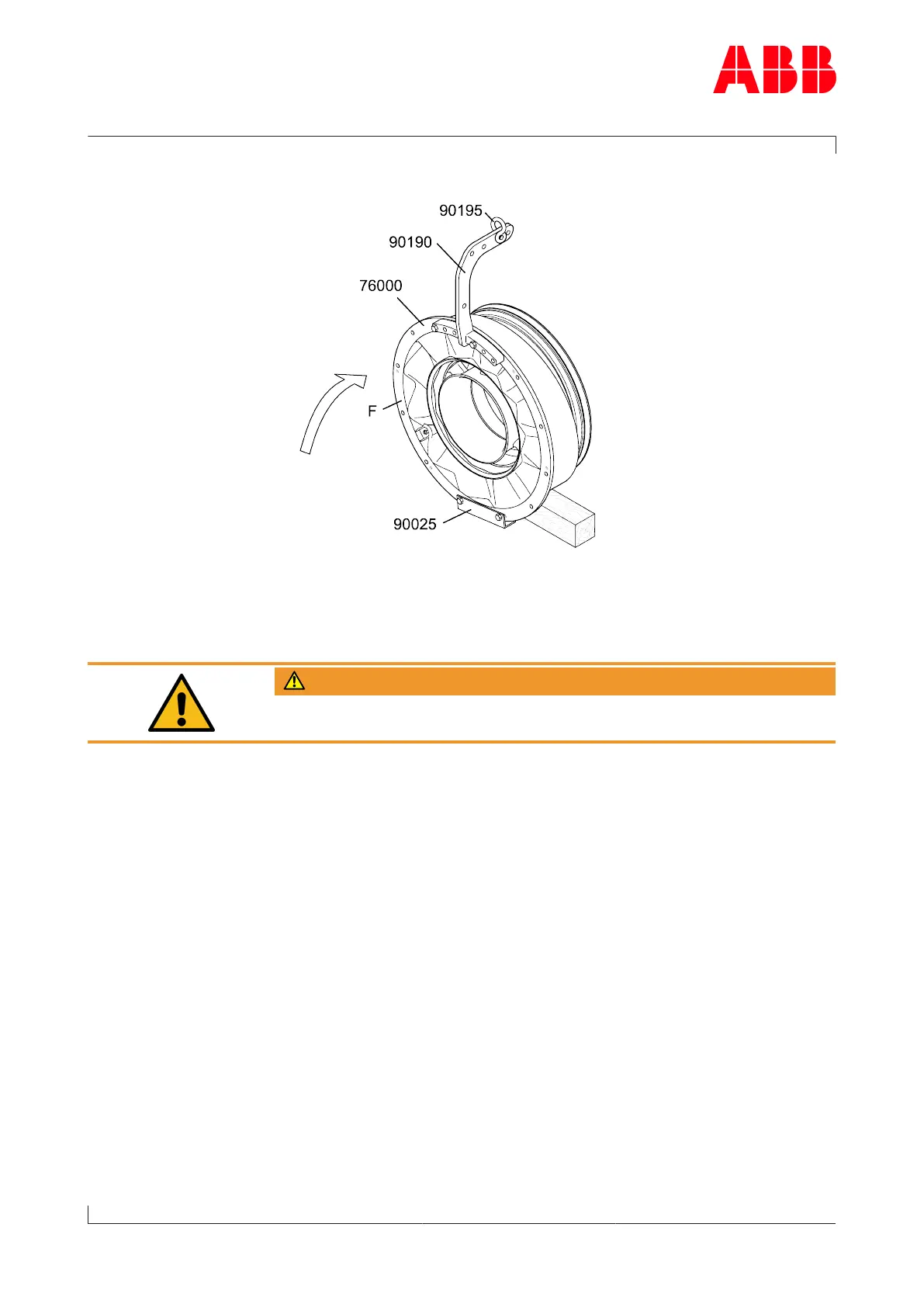

u Fasten lifting device (90190/90195) to front side of flange (F).
u Carefully turn internal part of compressor casing (76000) complete
with wall insert and diffuser about support angle (90025) and lift up
vertically.
WARNING
Ensure that the shim does not slip.
