Operation Manual / TPL76-C
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018
Fitting compressor casing internal part
* The two compressor casing parts are centred via the long cylindrical
flange. No guide pieces are needed.
u Check whether the nuts (90458) of the three safety segments have
been tightened (safety segments are in the "not engaged" position).
u Fit O-ring (76040).
u Remove the support angle (90025), screws (90021) and nuts (74027).

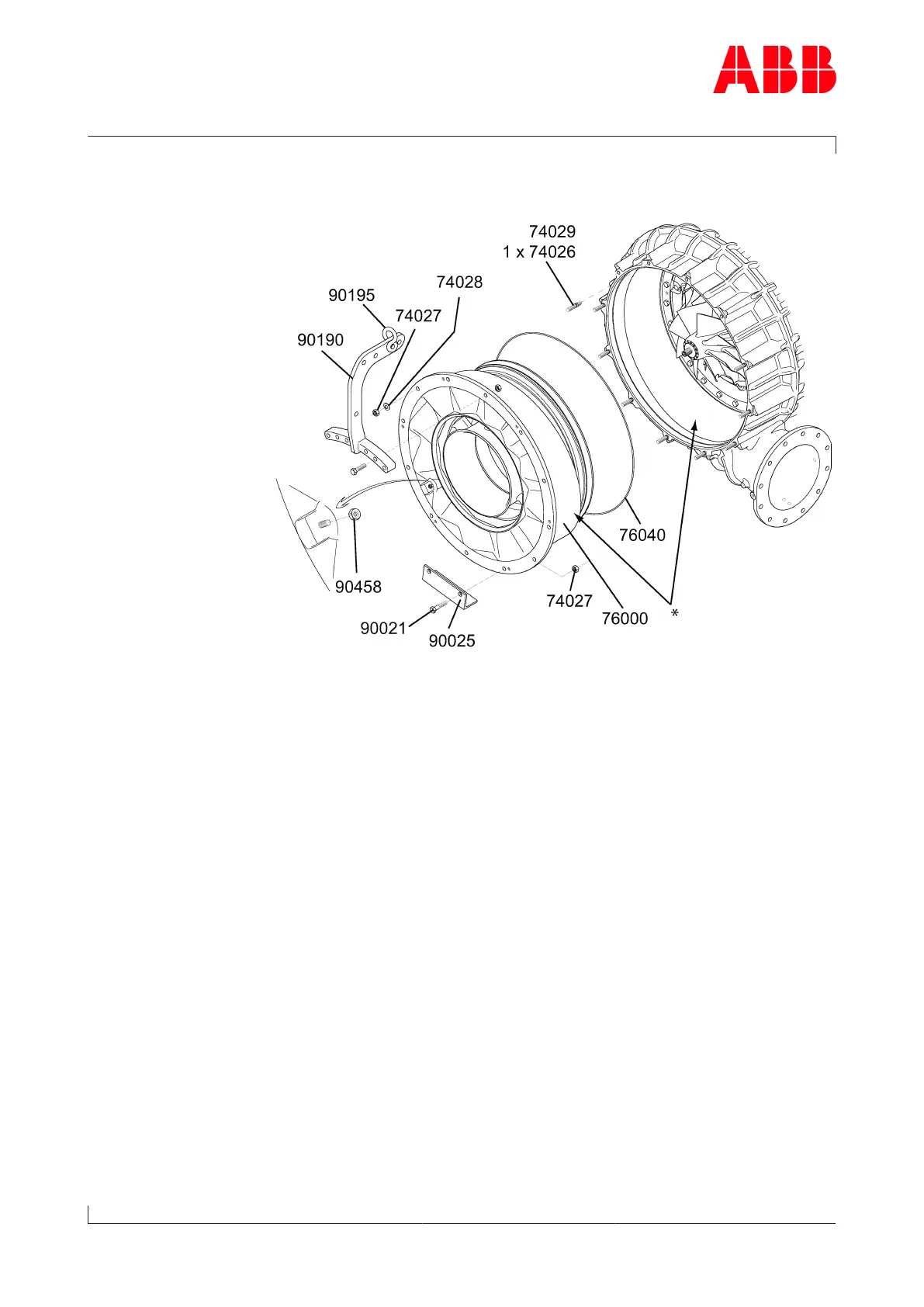

u Align the compressor casing internal part (76000) with the com-
pressor casing external part as shown in the illustration on the next
page.
u Carefully insert the compressor casing internal part (76000) including
the wall insert and diffuser into the compressor casing external part
and then remove the lifting device (90190/90195).
