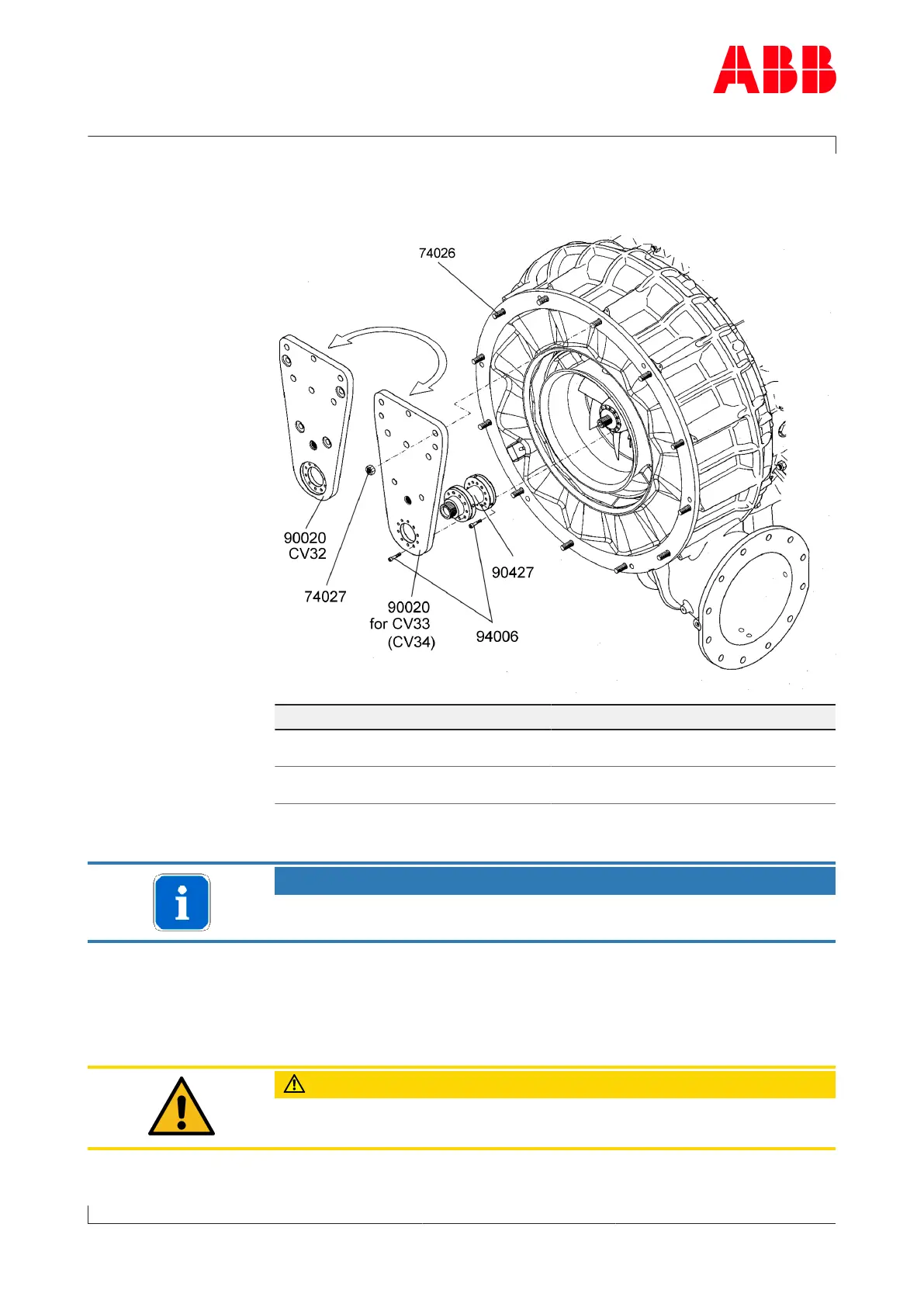

Locking rotor
Table of tightening
torques
Part no. TPL76-C
74027 M18
135 Nm
94006 M8
25 Nm
NOTICE
Carry out work as described in the chapter Disassembly and assembly.
u Remove silencer or air suction branch.
u Insert lifting device (90427) into compressor wheel.
u Twist screws (94006) into free threaded holes in compressor wheel
and tighten to values shown in Table of tightening torques.
CAUTION
Don't remove any balancing screws from the compressor wheel. Use
only free threaded holes to fit the lifting device.
