Operation Manual / TPL76-C
9 Taking out of operation at short notice / 9.2 Locking the rotor
© Copyright 2018 . All rights reserved. HZTL2485_EN Revision F April 2018
u Put assembly/disassembly device (90020) over studs (74026) and lift-
ing device (90427).
u Turn compressor wheel until holes in lifting device (90427) align with
holes in assembly/disassembly device (90020).
u Fasten assembly/disassembly device to lifting device (90427) using
screws (94006).
u Secure assembly/disassembly device (90020) to compressor housing
by screwing nuts (74027) onto studs (74026). (See also chapter Table
of tightening torques.)

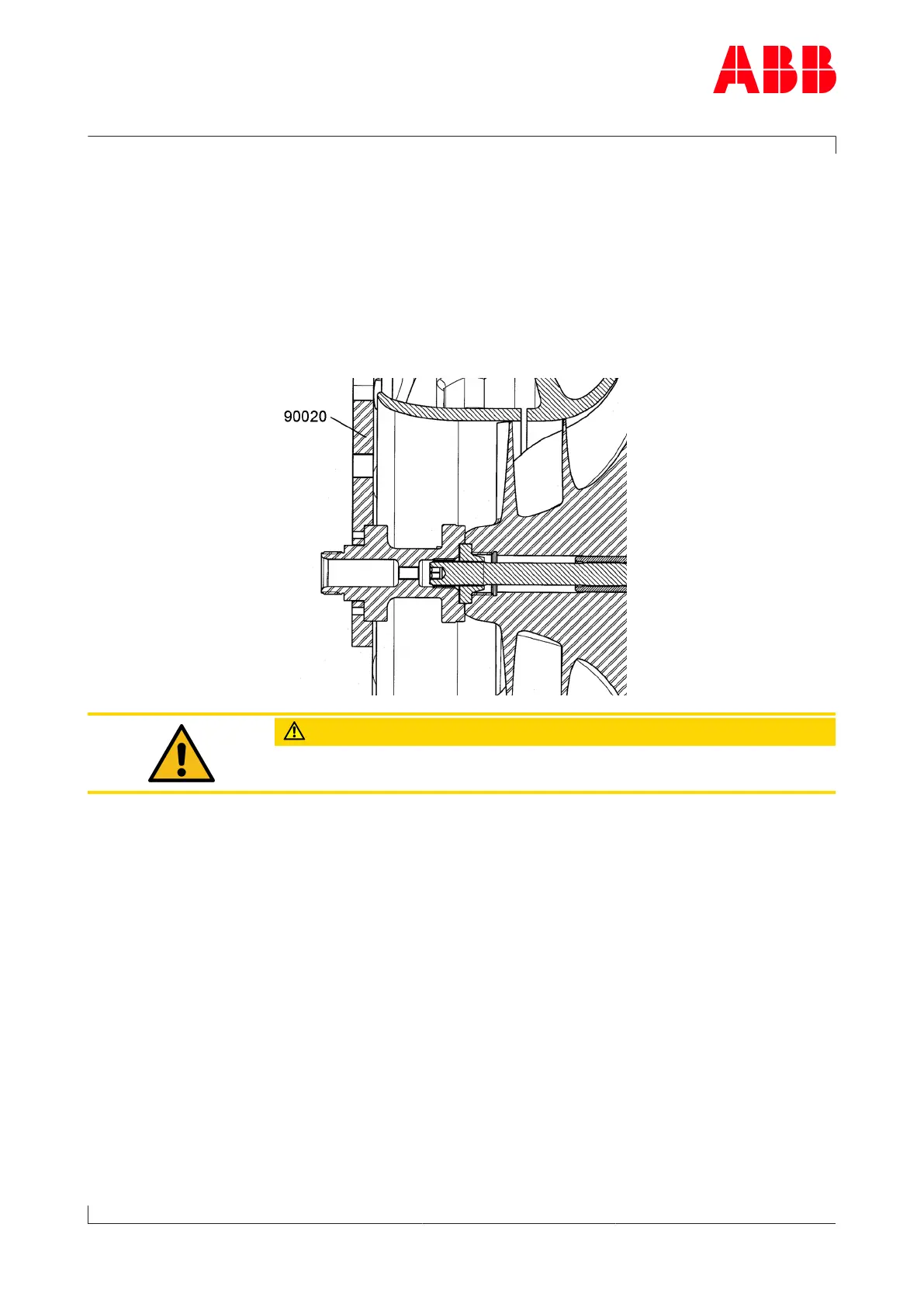

Fitted assembly plate CV
33, CV 34
CAUTION
Make sure all components are clean and free from grease.
